6.9 Typical Characteristics: VS = 3.0 V

at VS+ = 3.0 V, VS– = 0 V, VOUT = 1 VPP, RF = 0 Ω, RL = 2 kΩ, G = 1 V/V, input and output referenced to mid-supply, and TA ≈ 25°C (unless otherwise noted)
OPA837 OPA2837 D019_SBOS673.gif
See Figure 74 and Table 2, VOUT = 20 mVPP, RLOAD = 2 kΩ
Figure 19. Noninverting Small-Signal Response vs Gain
OPA837 OPA2837 D021_SBOS673.gif
See Figure 74, gain = 2 V/V
Figure 21. Noninverting Large-Signal Bandwidth vs VOPP
OPA837 OPA2837 D023_SBOS673.gif
See Figure 74 and Table 2, VOUT = 200 mVPP, RLOAD = 2 kΩ
Figure 23. Noninverting Response Flatness vs Gain
OPA837 OPA2837 D025_SBOS673.gif
See Figure 74 and Table 2, gain = 2 V/V,
input edge rate set to stay below slew limiting
Figure 25. Noninverting Step Response vs VOPP
OPA837 OPA2837 D027_SBOS673.gif
See Figure 74 and Table 2
Figure 27. Simulated Noninverting Settling Time
OPA837 OPA2837 D029_SBOS673.gif
See Figure 74 and Table 2, gain = 2 V/V
Figure 29. Noninverting Overdrive Recovery
OPA837 OPA2837 D031_SBOS673.gif
See Figure 74, Figure 75, Table 2, and Table 3, VOUT = 1 VPP, RLOAD = 2 kΩ
Figure 31. Harmonic Distortion vs Frequency
OPA837 OPA2837 D033_SBOS673.gif
See Figure 74, Figure 75, Table 2, and Table 3, RLOAD = 2 kΩ,
f = 100 kHz
Figure 33. Harmonic Distortion vs Output Swing

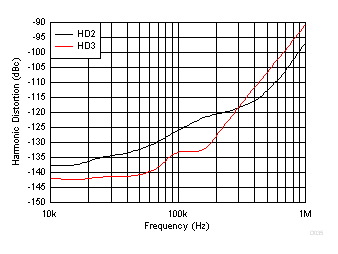

OPA837 OPA2837 D035_SBOS673.gif
See Figure 87, gain = 1 V/V, VOUT = 1 VPP, RLOAD = 2 kΩ
Figure 35. Harmonic Distortion as Active Mux
OPA837 OPA2837 D020_SBOS673.gif
See Figure 75 and Table 3, VOUT = 20 mVPP, RLOAD = 2 kΩ
Figure 20. Inverting Small-Signal Response vs Gain
OPA837 OPA2837 D022_SBOS673.gif
See Figure 75, gain = –1 V/V
Figure 22. Inverting Large-Signal Bandwidth vs VOPP
OPA837 OPA2837 D024_SBOS673.gif
See Figure 75 and Table 3, VOUT = 200 mVPP, RLOAD = 2 kΩ
Figure 24. Inverting Response Flatness vs Gain

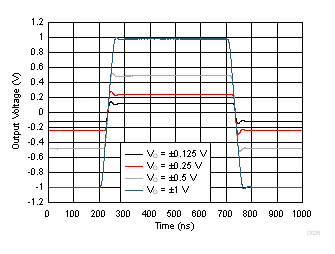

OPA837 OPA2837 D026_SBOS673.gif
See Figure 75 and Table 3, gain = –1 V/V,
input edge rate set to stay below slew limiting
Figure 26. Inverting Step Response vs VOPP
OPA837 OPA2837 D028_SBOS673.gif
See Figure 75 and Table 3
Figure 28. Simulated Inverting Settling Time
OPA837 OPA2837 D030_SBOS673.gif
See Figure 75 and Table 3, gain = –1 V/V
Figure 30. Inverting Overdrive Recovery
OPA837 OPA2837 D032_SBOS673.gif
See Figure 74, Figure 75, Table 2, and Table 3, VOUT = 1 VPP,
f = 100 kHz, RLOAD = 2 kΩ
Figure 32. Harmonic Distortion vs RLOAD
OPA837 OPA2837 D034_SBOS673.gif
See Figure 74, Figure 75, Table 2, and Table 3, RLOAD = 2 kΩ,
f = 100 kHz, VOUT = 1 VPP
Figure 34. Harmonic Distortion vs Gain Magnitude

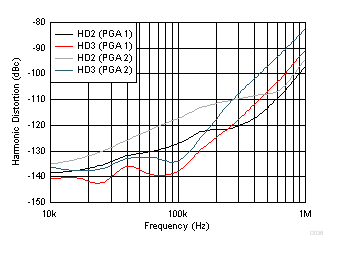

OPA837 OPA2837 D036_SBOS673.gif
See Figure 88, gain of 1 V/V and 2 V/V, VOUT = 1 VPP,
RLOAD = 2 kΩ
Figure 36. Harmonic Distortion as 1-Bit PGA
