8.3 System Examples

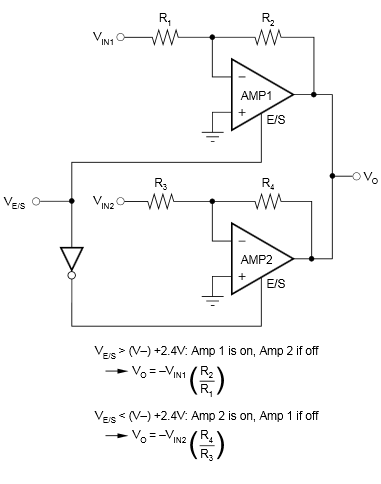

OPA548 switchedamp1.pngFigure 33. Switched Amplifier Schematic
OPA548 multcurrent1.pngFigure 34. Multiple Current Limit Values Schematic
OPA548 singlequad1.pngFigure 35. Single Quadrant V × I Limiting

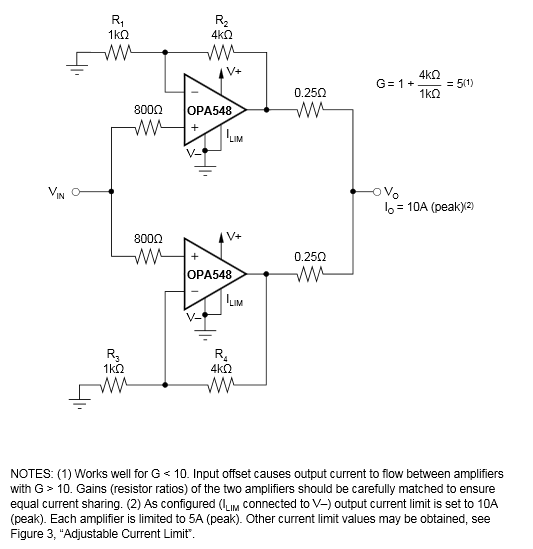

OPA548 paralleloutput1.pngFigure 36. Parallel Output for Increased Output Current Schematic
