6.6 Typical Characteristics

at TCASE = 25°C, VS = ±30V, and E/S pin open (unless otherwise noted)
OPA548 typchar1.png
Figure 1. Open-Loop Gain and Phase vs Frequency
OPA548 typchar3.png

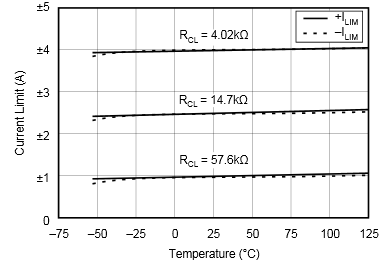

Figure 3. Current Limit vs Temperature

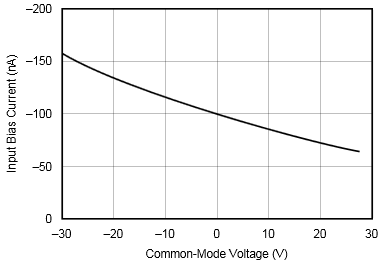

OPA548 typchar5.png
Figure 5. Input Bias Current vs Common-Mode Voltage

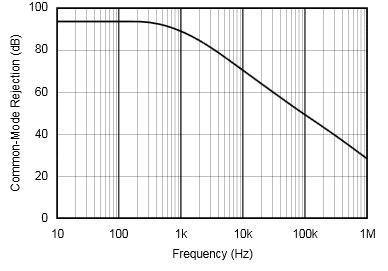

OPA548 typchar7.png
Figure 7. Common-Mode Rejection vs Frequency
OPA548 typchar9.png

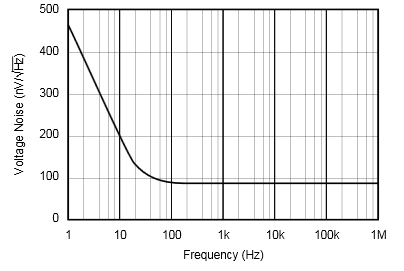

Figure 9. Voltage Noise Density vs Frequency
OPA548 typchar11.png

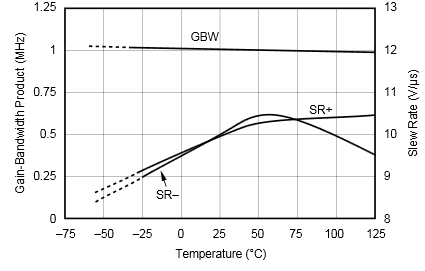

Figure 11. Gain-Bandwidth Product and Slew Rate vs Temperature

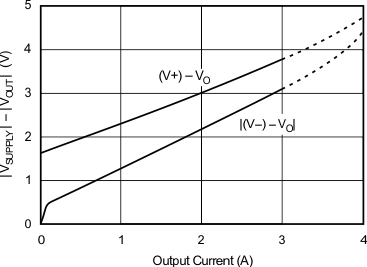

OPA548 typchar13.gif
Figure 13. Output Voltage Swing vs Output Current
OPA548 typchar15.png

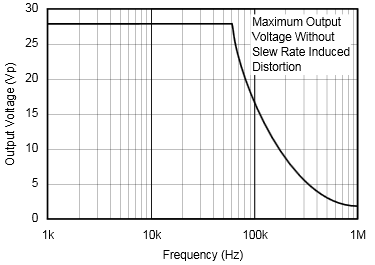

Figure 15. Maximum Output Voltage Swing vs Frequency
OPA548 typchar17.png
Figure 17. Offset Voltage Production Distribution
OPA548 typchar19.png

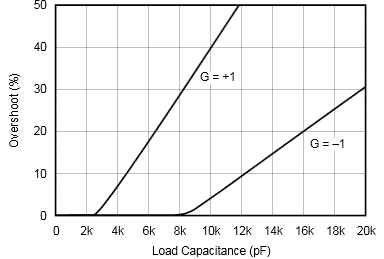

Figure 19. Small-Signal Overshoot vs Load Capacitance
OPA548 typchar21.png

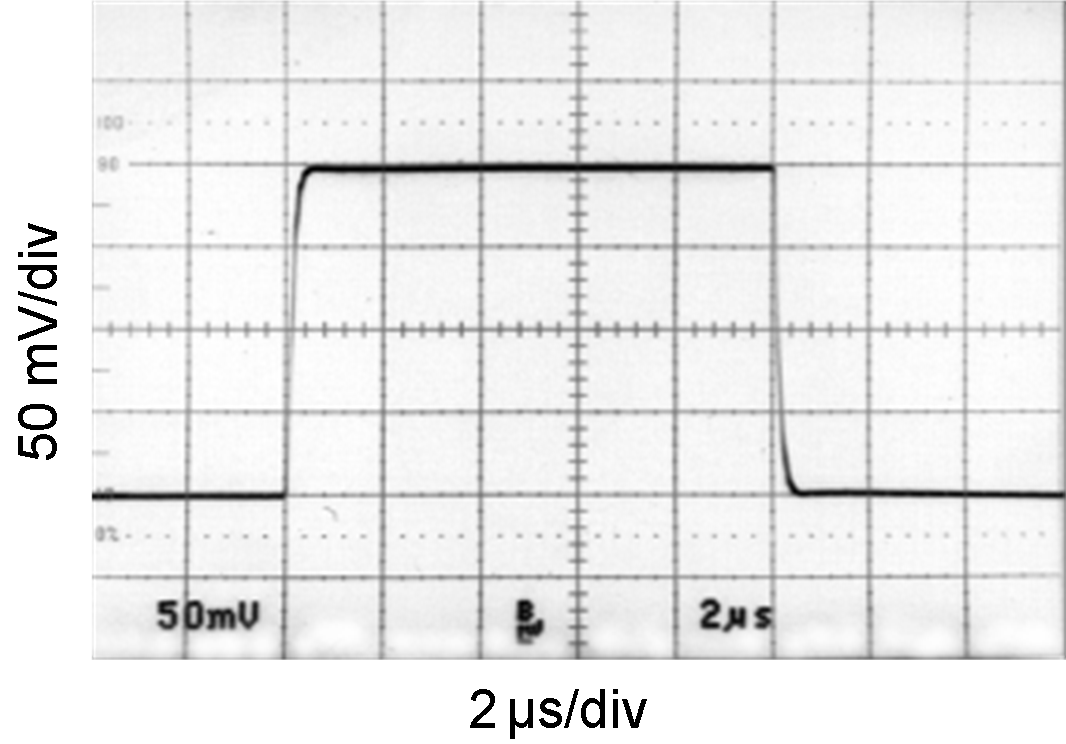

G = 1 CL = 1000 pF
Figure 21. Small-Signal Step Response
OPA548 typchar2.png

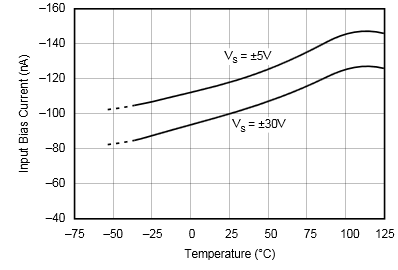

Figure 2. Input Bias Current vs Temperature

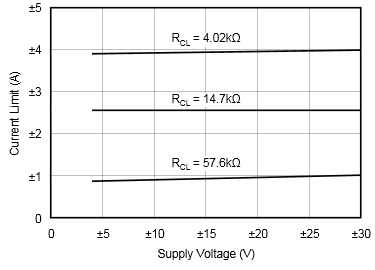

OPA548 typchar4.png
Figure 4. Current Limit vs Supply Voltage
OPA548 typchar6.png

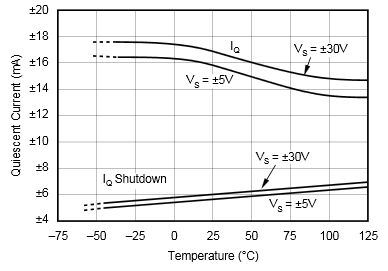

Figure 6. Quiescent Current vs Temperature
OPA548 typchar8.png
Figure 8. Power-Supply Rejection vs Frequency
OPA548 typchar10.png

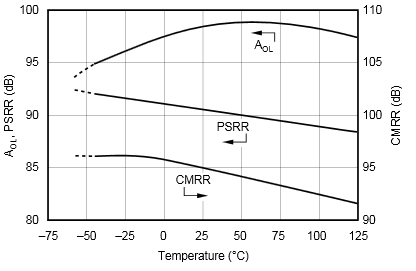

Figure 10. Open-loop Gain, Common-Mode Rejection,
and Power-Supply Rejection vs Temperature

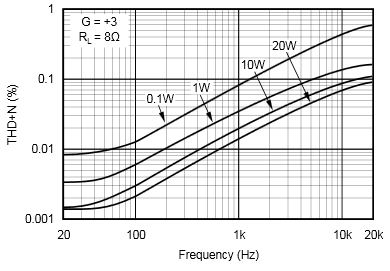

OPA548 typchar12.png
Figure 12. Total Harmonic Distortion+Noise vs Frequency
OPA548 typchar14.gif
Figure 14. Output Voltage Swing vs Temperature

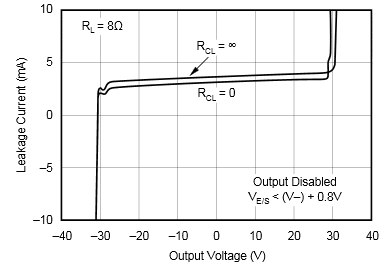

OPA548 typchar16.png
Figure 16. Output Leakage Current vs Applied Output Voltage
OPA548 typchar18.png
Figure 18. Offset Voltage Drift Production Distribution

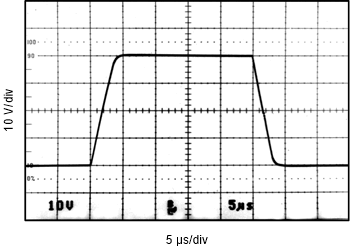

OPA548 typchar20.gif
G = 3 CL = 1000 pF, RL = 8 Ω
Figure 20. Large-Signal Step Response

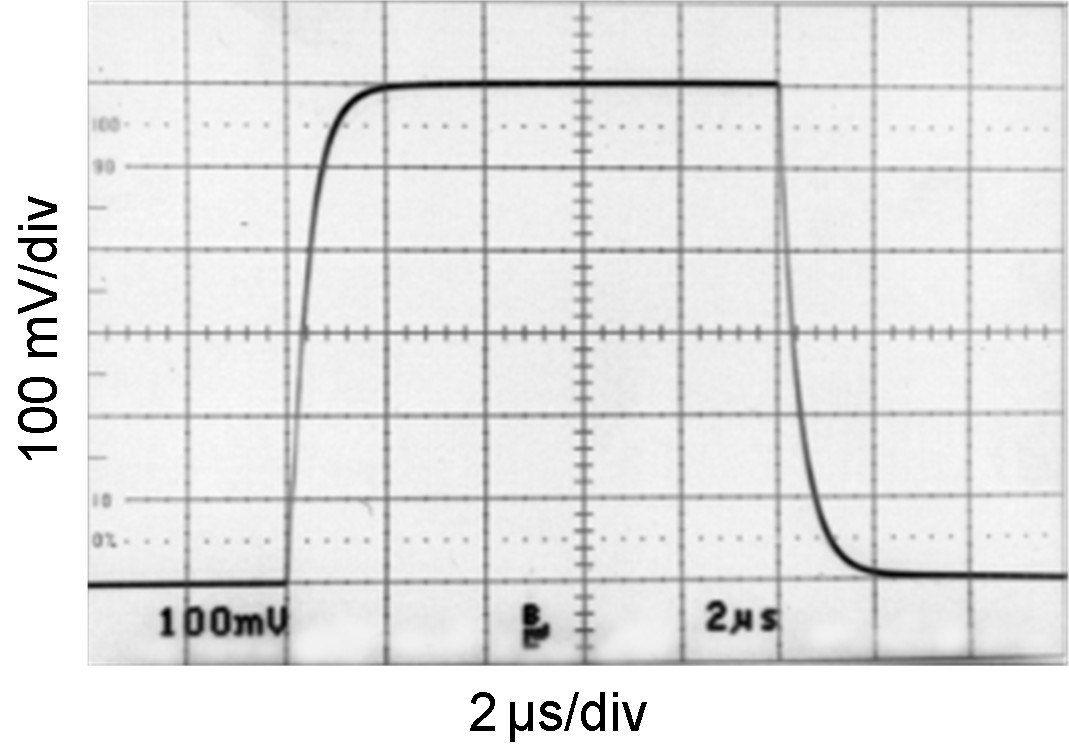

OPA548 typchar22.png
G = 3 CL = 1000 pF
Figure 22. Small-Signal Step Response
