Interrupt Vector Table and Signatures

The interrupt vectors, the power-up start address and signatures are in the address range 0FFFFh to 0FF80h. Figure 6-1 summarizes the content of this address range.

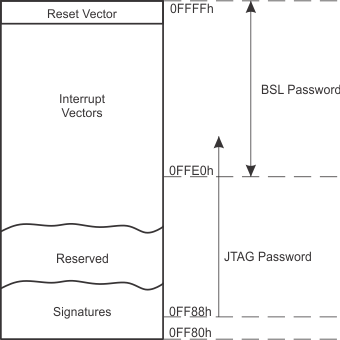

MSP430FR5994 MSP430FR59941 MSP430FR5992 MSP430FR5964 MSP430FR5962 Interrupts_Signatures_Passwords.gifFigure 6-1 Interrupt Vectors, Signatures and Passwords

The power-up start address or reset vector is at 0FFFFh to 0FFFEh. This location contains a 16-bit address pointing to the start address of the application program.

The interrupt vectors start at 0FFFDh and extend to lower addresses. Each vector contains the 16-bit address of the appropriate interrupt-handler instruction sequence. Table 6-4 shows the device specific interrupt vector locations.

The vectors programmed into the address range from 0FFFFh to 0FFE0h are used as BSL password (if enabled by the corresponding signature).

The signatures are at 0FF80h and extend to higher addresses. Signatures are evaluated during device start-up. Table 6-5 lists the device-specific signature locations.

A JTAG password can be programmed starting at address 0FF88h and extending to higher addresses. The password can extend into the interrupt vector locations using the interrupt vector addresses as additional bits for the password. The length of the JTAG password depends on the JTAG signature.

See the System Resets, Interrupts, and Operating Modes, System Control Module (SYS) chapter in the MSP430FR58xx, MSP430FR59xx, and MSP430FR6xx Family User's Guide for details.

Table 6-4 Interrupt Sources, Flags, and Vectors

INTERRUPT SOURCE INTERRUPT FLAG SYSTEM INTERRUPT WORD ADDRESS PRIORITY
System Reset
Power up, brownout, supply supervisor
External reset RST
Watchdog time-out (watchdog mode)
WDT, FRCTL MPU, CS, PMM password violation
FRAM uncorrectable bit error detection
MPU segment violation
Software POR, BOR

SVSHIFG
PMMRSTIFG
WDTIFG
WDTPW, FRCTLPW, MPUPW, CSPW, PMMPW
UBDIFG
MPUSEGIIFG, MPUSEG1IFG, MPUSEG2IFG, MPUSEG3IFG
PMMPORIFG, PMMBORIFG
(SYSRSTIV)(1)(2)
Reset 0FFFEh Highest
System NMI
Vacant memory access
JTAG mailbox
FRAM access time error
FRAM write protection error
FRAM bit error detection
MPU segment violation

VMAIFG
JMBINIFG, JMBOUTIFG
ACCTEIFG, WPIFG
CBDIFG, UBDIFG
MPUSEGIIFG, MPUSEG1IFG, MPUSEG2IFG, MPUSEG3IFG
(SYSSNIV)(1)(3)
(Non)maskable 0FFFCh
User NMI
External NMI
Oscillator fault
NMIIFG, OFIFG
(SYSUNIV)(1)(3)
(Non)maskable 0FFFAh
Comparator_E CEIFG, CEIIFG
(CEIV)(1)
Maskable 0FFF8h
TB0 TB0CCR0.CCIFG Maskable 0FFF6h
TB0 TB0CCR1.CCIFG ... TB0CCR6.CCIFG,
TB0CTL.TBIFG
(TB0IV)(1)
Maskable 0FFF4h
Watchdog timer (interval timer mode) WDTIFG Maskable 0FFF2h
eUSCI_A0 receive or transmit UCA0IFG: UCRXIFG, UCTXIFG (SPI mode)
UCA0IFG: UCSTTIFG, UCTXCPTIFG, UCRXIFG, UCTXIFG (UART mode)
(UCA0IV)(1)
Maskable 0FFF0h
eUSCI_B0 receive or transmit UCB0IFG: UCRXIFG, UCTXIFG (SPI mode)
UCB0IFG: UCALIFG, UCNACKIFG, UCSTTIFG, UCSTPIFG, UCRXIFG0, UCTXIFG0, UCRXIFG1, UCTXIFG1, UCRXIFG2, UCTXIFG2, UCRXIFG3, UCTXIFG3, UCCNTIFG, UCBIT9IFG (I2C mode)
(UCB0IV)(1)
Maskable 0FFEEh
ADC12_B ADC12IFG0 to ADC12IFG31
ADC12LOIFG, ADC12INIFG, ADC12HIIFG, ADC12RDYIFG, ADC21OVIFG, ADC12TOVIFG
(ADC12IV)(1)(4)
Maskable 0FFECh
TA0 TA0CCR0.CCIFG Maskable 0FFEAh
TA0 TA0CCR1.CCIFG, TA0CCR2.CCIFG,
TA0CTL.TAIFG
(TA0IV)(1)
Maskable 0FFE8h
eUSCI_A1 receive or transmit UCA1IFG: UCRXIFG, UCTXIFG (SPI mode)
UCA1IFG: UCSTTIFG, UCTXCPTIFG, UCRXIFG, UCTXIFG (UART mode)
(UCA1IV)(1)
Maskable 0FFE6h
DMA DMA0CTL.DMAIFG, DMA1CTL.DMAIFG, DMA2CTL.DMAIFG
(DMAIV)(1)
Maskable 0FFE4h
TA1 TA1CCR0.CCIFG Maskable 0FFE2h
TA1 TA1CCR1.CCIFG, TA1CCR2.CCIFG,
TA1CTL.TAIFG
(TA1IV)(1)
Maskable 0FFE0h
I/O port P1 P1IFG.0 to P1IFG.7
(P1IV)(1)
Maskable 0FFDEh
TA2 TA2CCR0.CCIFG Maskable 0FFDCh
TA2 TA2CCR1.CCIFG
TA2CTL.TAIFG
(TA2IV)(1)
Maskable 0FFDAh
I/O port P2 P2IFG.0 to P2IFG.7
(P2IV)(1)
Maskable 0FFD8h
TA3 TA3CCR0.CCIFG Maskable 0FFD6h
TA3 TA3CCR1.CCIFG
TA3CTL.TAIFG
(TA3IV)(1)
Maskable 0FFD4h
I/O port P3 P3IFG.0 to P3IFG.7
(P3IV)(1)
Maskable 0FFD2h
I/O port P4 P4IFG.0 to P4IFG.2
(P4IV)(1)
Maskable 0FFD0h
RTC_C RTCRDYIFG, RTCTEVIFG, RTCAIFG, RT0PSIFG, RT1PSIFG, RTCOFIFG
(RTCIV)(1)
Maskable 0FFCEh
AES AESRDYIFG Maskable 0FFCCh
TA4 TA4CCR0.CCIFG Maskable 0FFCAh
TA4 TA4CCR1.CCIFG
TA4CTL.TAIFG
(TA4IV)(1)
Maskable 0FFC8h
I/O port P5 P5IFG.0 to P5IFG.2
(P5IV)(1)
Maskable 0FFC6h
I/O port P6 P6IFG.0 to P6IFG.2
(P6IV)(1)
Maskable 0FFC4h
eUSCI_A2 receive or transmit UCA2IFG: UCRXIFG, UCTXIFG (SPI mode)
UCA2IFG: UCSTTIFG, UCTXCPTIFG, UCRXIFG, UCTXIFG (UART mode)
(UCA2IV)(1)
Maskable 0FFC2h
eUSCI_A3 receive or transmit UCA3IFG: UCRXIFG, UCTXIFG (SPI mode)
UCA3IFG: UCSTTIFG, UCTXCPTIFG, UCRXIFG, UCTXIFG (UART mode)
(UCA3IV)(1)
Maskable 0FFC0h
eUSCI_B1 receive or transmit UCB1IFG: UCRXIFG, UCTXIFG (SPI mode)
UCB1IFG: UCALIFG, UCNACKIFG, UCSTTIFG, UCSTPIFG, UCRXIFG0, UCTXIFG0, UCRXIFG1, UCTXIFG1, UCRXIFG2, UCTXIFG2, UCRXIFG3, UCTXIFG3, UCCNTIFG, UCBIT9IFG (I2C mode)
(UCB1IV)(1)
Maskable 0FFBEh
eUSCI_B2 receive or transmit UCB2IFG: UCRXIFG, UCTXIFG (SPI mode)
UCB2IFG: UCALIFG, UCNACKIFG, UCSTTIFG, UCSTPIFG, UCRXIFG0, UCTXIFG0, UCRXIFG1, UCTXIFG1, UCRXIFG2, UCTXIFG2, UCRXIFG3, UCTXIFG3, UCCNTIFG, UCBIT9IFG (I2C mode)
(UCB2IV)(1)
Maskable 0FFBCh
eUSCI_B3 receive or transmit UCB3IFG: UCRXIFG, UCTXIFG (SPI mode)
UCB3IFG: UCALIFG, UCNACKIFG, UCSTTIFG, UCSTPIFG, UCRXIFG0, UCTXIFG0, UCRXIFG1, UCTXIFG1, UCRXIFG2, UCTXIFG2, UCRXIFG3, UCTXIFG3, UCCNTIFG, UCBIT9IFG (I2C mode)
(UCB3IV)(1)
Maskable 0FFBAh
I/O port P7 P7IFG.0 to P7IFG.2
(P7IV)(1)
Maskable 0FFB8h
I/O port P8 P6IFG.0 to P6IFG.2
(P8IV)(1)
Maskable 0FFB6h
LEA (MSP430FR599x only) CMDIFG, SDIIFG, OORIFG,TIFG, COVLIFG
LEAIV(1)
Maskable 0FFB4h Lowest
Multiple source flags
A reset is generated if the CPU tries to fetch instructions from peripheral space.
(Non)maskable: the individual interrupt enable bit can disable an interrupt event, but the general interrupt enable bit cannot disable it.
Only on devices with ADC, otherwise reserved.

Table 6-5 Signatures

SIGNATURE WORD ADDRESS
IP Encapsulation Signature 2 0FF8Ah
IP Encapsulation Signature 1(1) 0FF88h
BSL Signature 2 0FF86h
BSL Signature 1 0FF84h
JTAG Signature 2 0FF82h
JTAG Signature 1 0FF80h
Must not contain 0AAAAh if used as the JTAG password.
