A.
Average of four typical devices

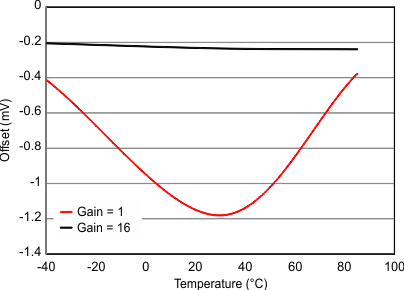

Figure 8-16 CTSD16 Offset Voltage vs Temperature
CTSD16REFS = 1 CTSD16GAINx = 1

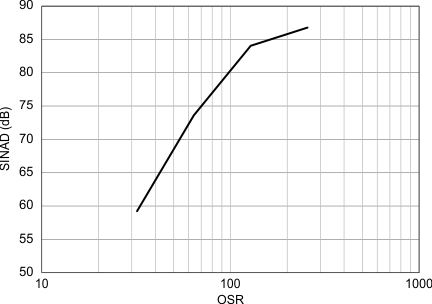

Figure 8-18 SINAD Performance vs OSR
A.
Gain = 1 OSR = 256 DIfferential Signal = 300
Figure 8-17 CTSD16 Typical Offset Voltage vs
Common-Mode Voltage

Section 8.8.11.5 lists the characteristics of the built-in Vcc sense.
