6.12.32 Port P11 (P11.4 and P11.5) Input/Output With Schmitt Trigger (PEU Package Only)

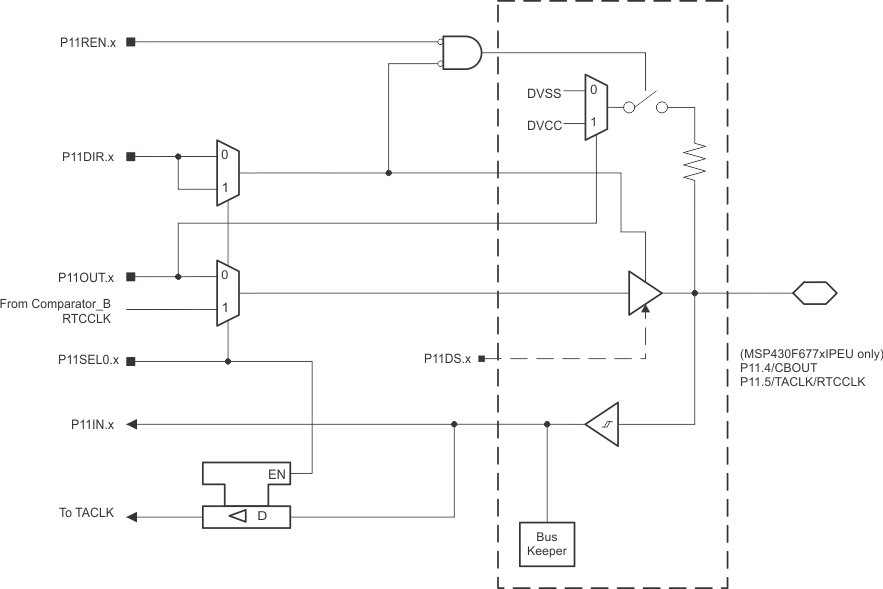

Figure 6-37 shows the port diagram. Table 6-96 summarizes the selection of the pin functions.

MSP430F6779A MSP430F6778A MSP430F6777A MSP430F6776A MSP430F6775A MSP430F6769A MSP430F6768A MSP430F6767A MSP430F6766A MSP430F6765A MSP430F6749A MSP430F6748A MSP430F6747A MSP430F6746A MSP430F6745A P11_45.gifFigure 6-37 Port P11 (P11.4 and P11.5) Diagram (PEU Package Only)

Table 6-96 Port P11 (P11.4 and P11.5) Pin Functions (PEU Package Only)

PIN NAME (P11.x) x FUNCTION CONTROL BITS OR SIGNALS
P11DIR.x P11SEL0.x
P11.4/CBOUT 4 P11.4 (I/O) I:0; O:1 0
N/A 0 1
CBOUT 1 1
P11.5/TACLK/RTCCLK 5 P11.5 (I/O) I:0; O:1 0
TACLK 0 1
RTCCLK 1 1
