9.13.13 Port PU (PU.0/DP, PU.1/DM, PUR) USB Ports

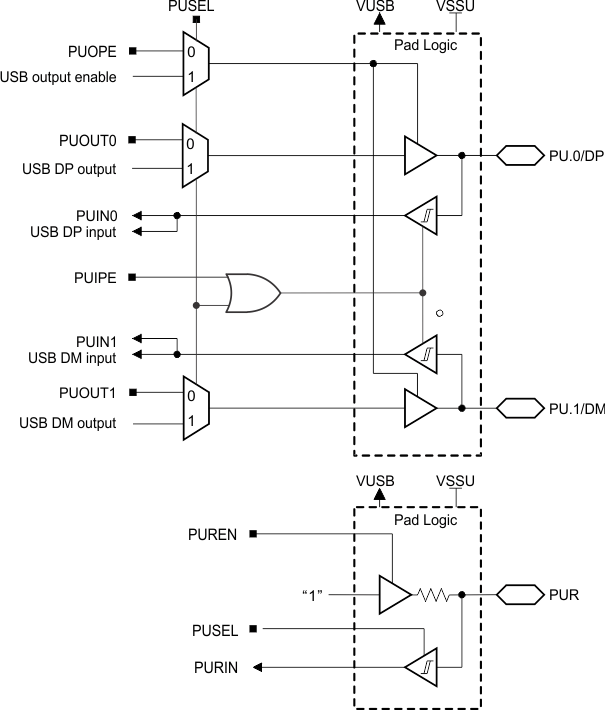

Figure 9-14 shows the pin diagram. Table 9-63 summarizes how to select the pin function.

GUID-6C4E4652-8D51-495B-8A85-80BB019405F5-low.gifFigure 9-14 Port PU (PU.0 and PU.1) Diagram
Table 9-63 Port PU.0/DP and PU.1/DM Output Functions
CONTROL BITSPIN NAMEFUNCTION
PUSELPUDIRPUOUT1PUOUT0PU.1/DMPU.0/DP
00XXHi-ZHi-ZOutputs off
010000Outputs enabled
010101Outputs enabled
011010Outputs enabled
011111Outputs enabled
1XXXDMDPDirection set by USB module
Table 9-64 Port PUR Input Functions
CONTROL BITSFUNCTION
PUSELPUREN
00Input disabled
Pullup disabled
01Input disabled
Pullup enabled
10Input enabled
Pullup disabled
11Input enabled
Pullup enabled
