8.14 Typical Characteristics – Outputs, Full Drive Strength (PxDS.y = 1)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

GUID-A5754A88-37F5-435A-8462-CF36E6D93B6F-low.gifFigure 8-6 Typical Low-Level Output Current vs Low-Level Output Voltage

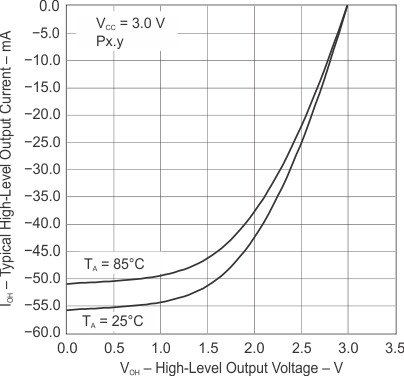

GUID-4B1F9225-4FC6-44ED-8922-57CB696B3B78-low.gifFigure 8-8 Typical High-Level Output Current vs High-Level Output Voltage
GUID-E274A4C9-65EF-4BA8-A29D-12B2BF31EE57-low.gifFigure 8-7 Typical Low-Level Output Current vs Low-Level Output Voltage
GUID-C1D124A7-A851-4C58-84CF-5435FEBE7101-low.gifFigure 8-9 Typical High-Level Output Current vs High-Level Output Voltage
