ZHCSQG6A March 2022 – May 2022 LP5891
PRODUCTION DATA
请参考 PDF 数据表获取器件具体的封装图。

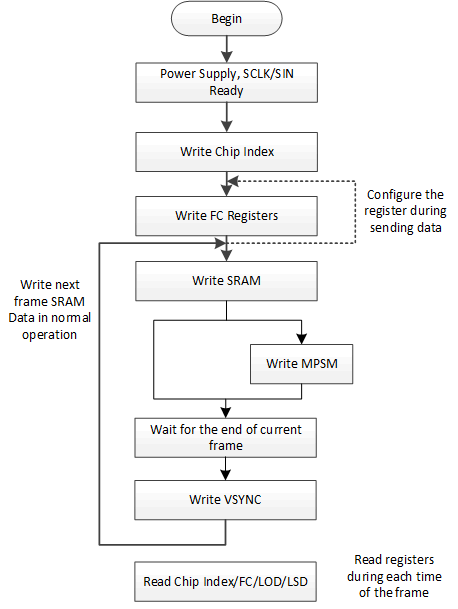

The MPSM command is used to control the intelligent power save mode of devices in the same matrix. The device detects all zero data in a stackable module and receives MPSM command in current frame, then when VSYNC command comes, all devices in the same matrix turn off. After the device detects that there is non-zero display data of the next frame, it gets out from intelligent power save mode until MSPM command comes in current frame.
