Typical Characteristics

Unless otherwise specified, the following conditions apply: VIN = 12 V; CIN = three × 10-μF + 47-nF X7R Ceramic; COUT = two × 330-μF Specialty Polymer + 47-μF Ceramic + 47-nF Ceramic; CFF = 4.7 nF; TA = 25°C for waveforms. All indicated temperatures are ambient.

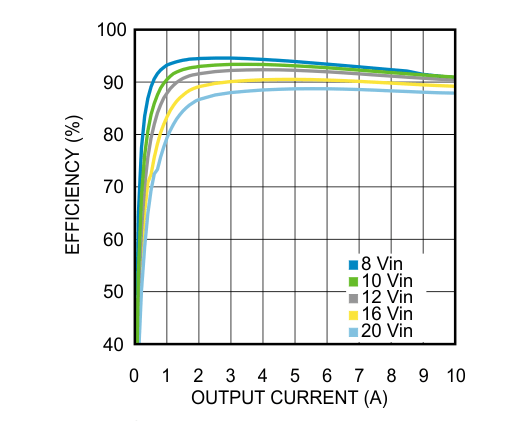

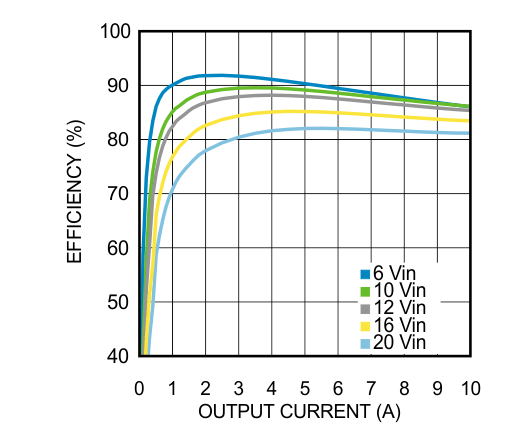

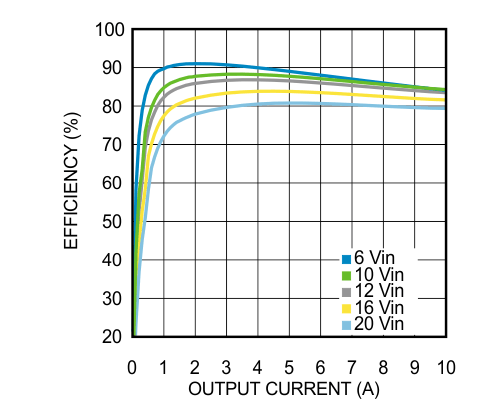

Figure 6-1 Efficiency 5-V Output at 25°C

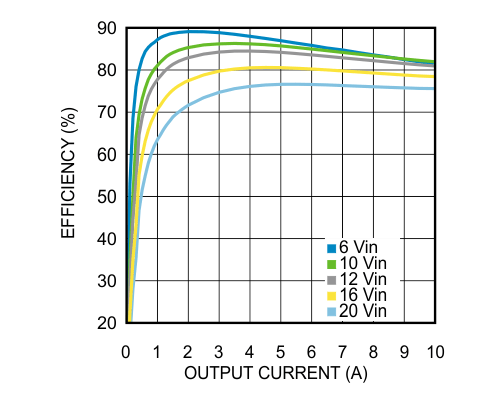

Figure 6-3 Efficiency 3.3-V Output at 25°C
Figure 6-5 Efficiency 2.5-V Output at 25°C

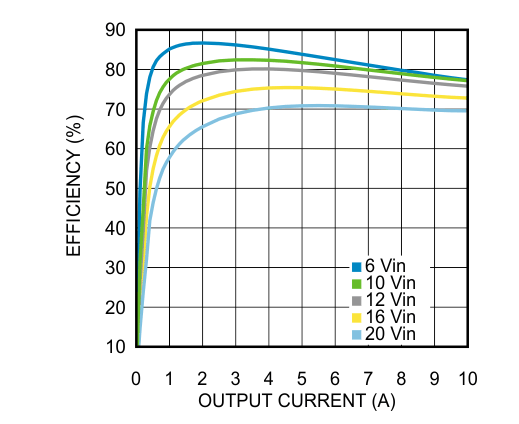

Figure 6-7 Efficiency 1.8-V Output at 25°C
Figure 6-9 Efficiency 1.5-V Output at 25°C

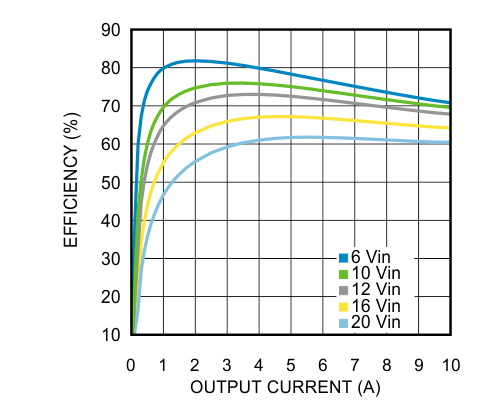

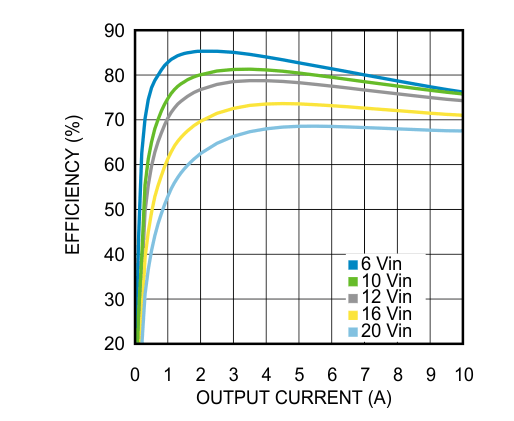

Figure 6-11 Efficiency 1.2-V Output at 25°C
Figure 6-13 Efficiency 1-V Output at 25°C
Figure 6-15 Efficiency 5-V Output at 85°C
Figure 6-17 Efficiency 3.3-V Output at 85°C
Figure 6-19 Efficiency 2.5-V Output at 85°C
Figure 6-21 Efficiency 1.8-V Output at 85°C
Figure 6-23 Efficiency 1.5-V Output at 85°C
Figure 6-25 Efficiency 1.2-V Output at 85°C
Figure 6-27 Efficiency 1-V Output at 85°C
VOUT = 3.3 V

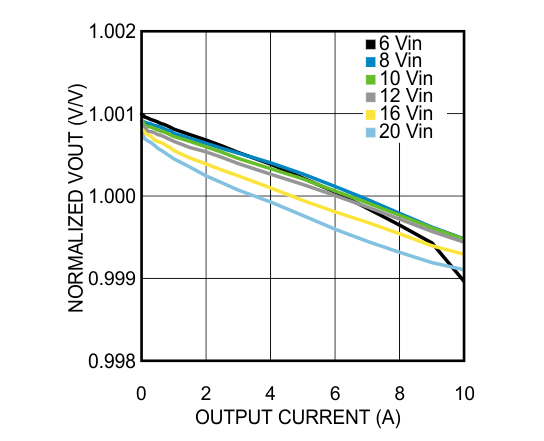

Figure 6-29 Normalized Line and Load Regulation

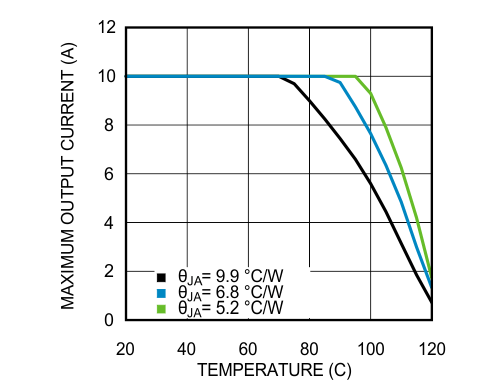

VIN = 12 V, VOUT = 3.3 V

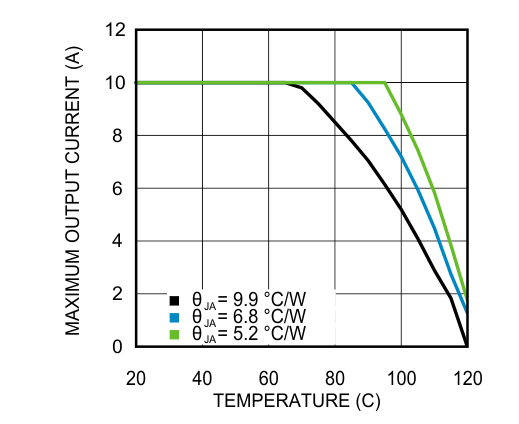

Figure 6-31 Thermal Derating

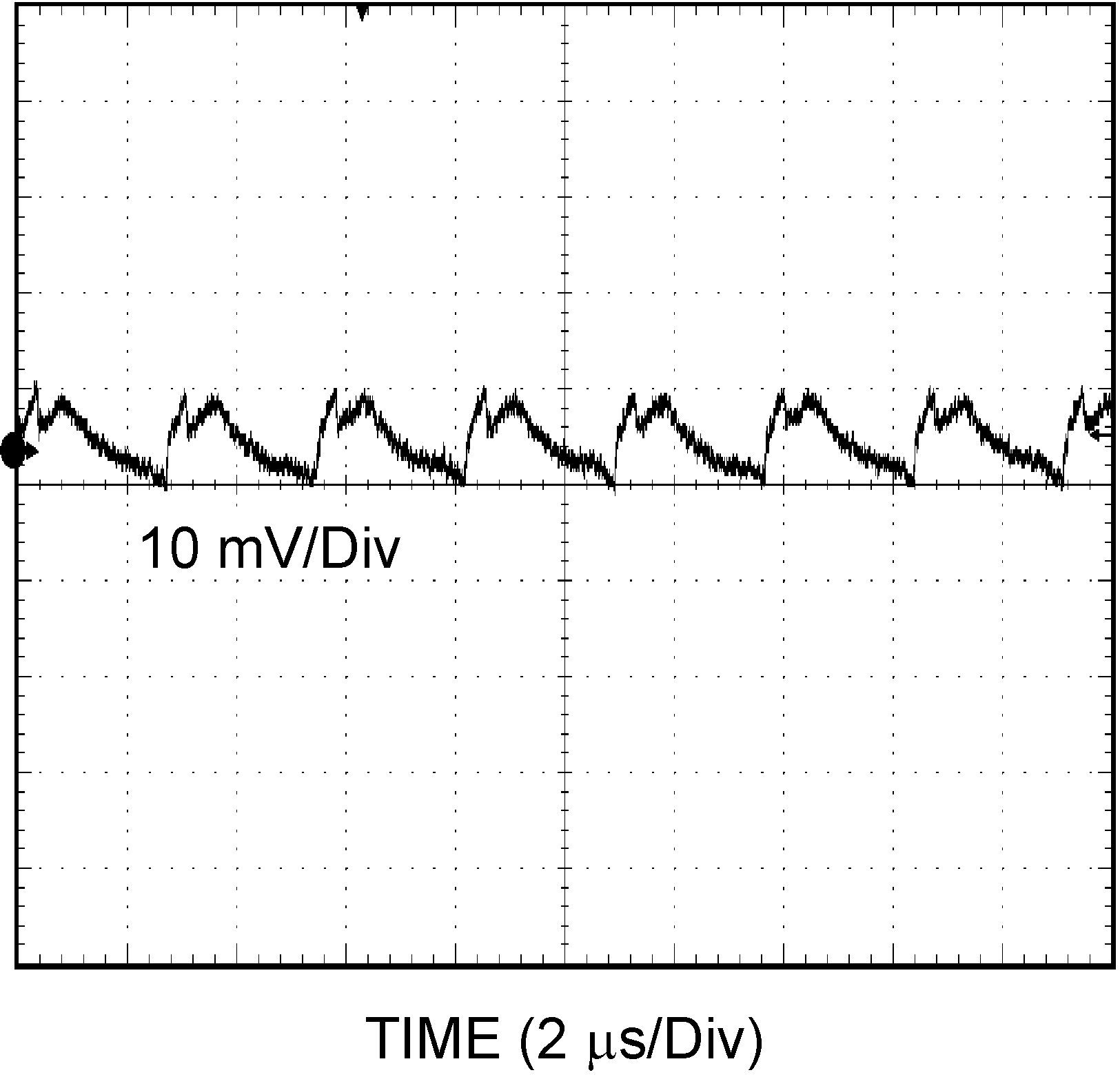

12 VIN, 5 VOUT at Full Load, BW = 20 MHz

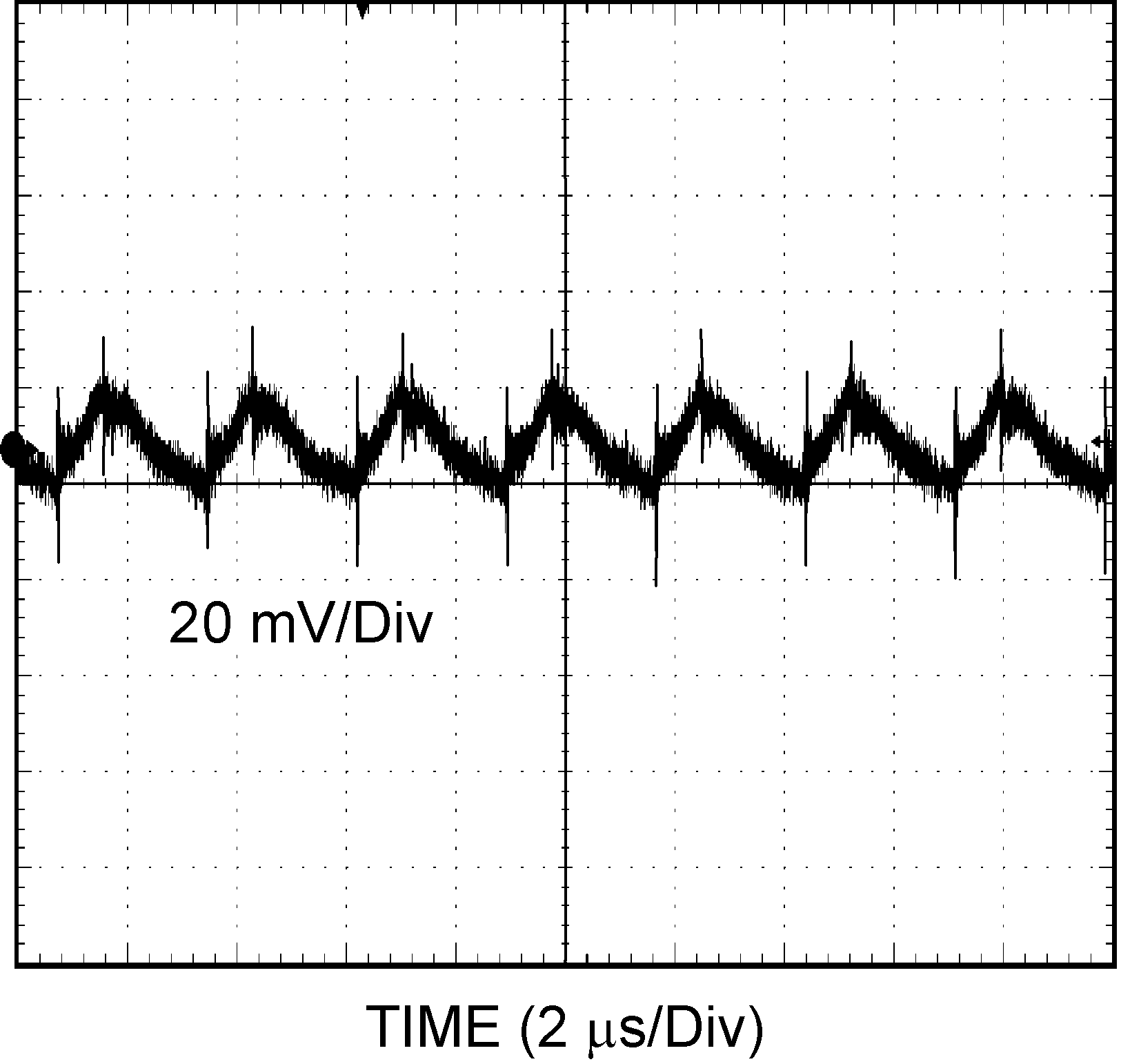

Figure 6-33 Output Ripple
12 VIN, 3.3 VOUT at Full Load, BW = 20 MHz
Figure 6-35 Output Ripple
12 VIN, 1.2 VOUT at Full Load, BW = 20 MHz
Figure 6-37 Output Ripple

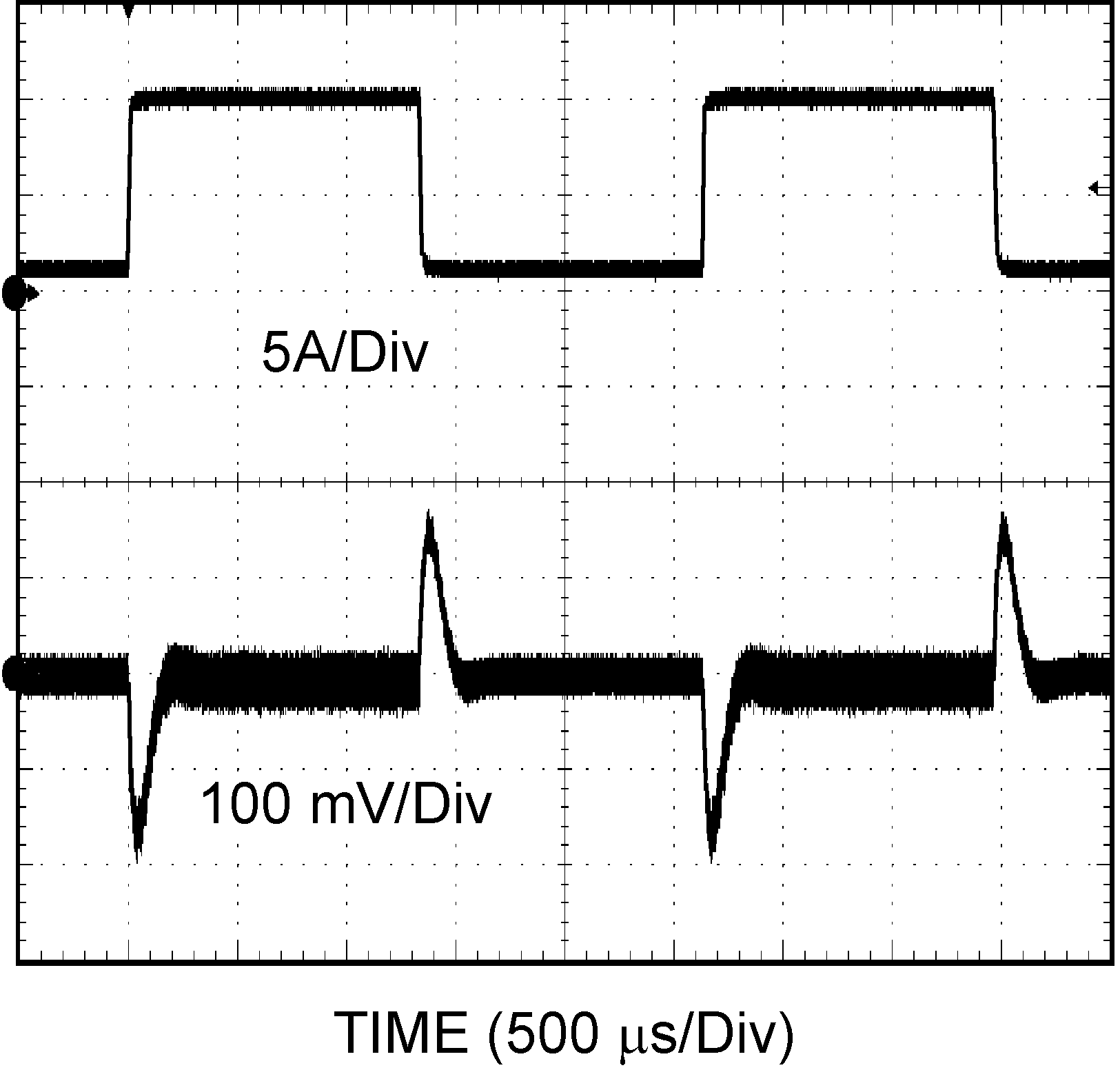

12 VIN, 5 VOUT 1- to 10-A Step
Figure 6-39 Transient Response
12 VIN, 1.2 VOUT 1- to 10-A Step
Figure 6-41 Transient Response
No CSS
Figure 6-43 3.3-VOUT Soft Start

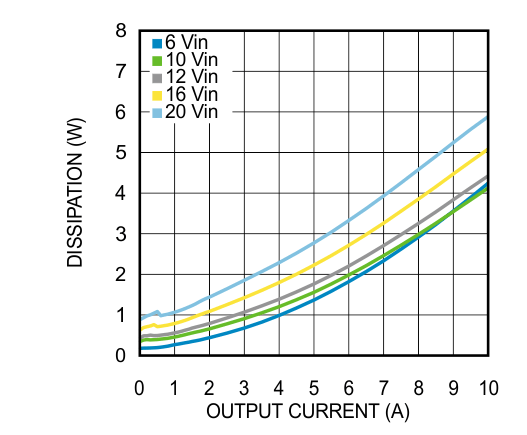

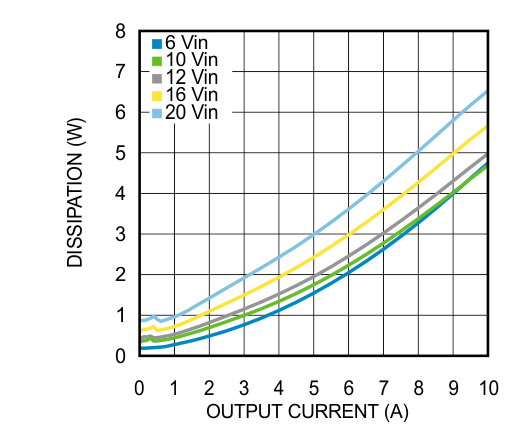

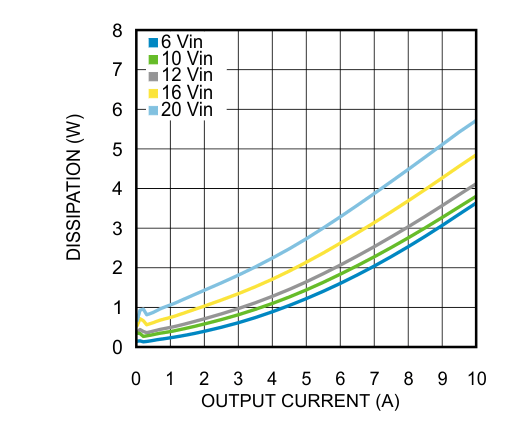

Figure 6-2 Dissipation 5-V Output at 25°C
Figure 6-4 Dissipation 3.3-V Output at 25°C
Figure 6-6 Dissipation 2.5-V Output at 25°C
Figure 6-8 Dissipation 1.8-V Output at 25°C
Figure 6-10 Dissipation 1.5-V Output at 25°C
Figure 6-12 Dissipation 1.2-V Output at 25°C
Figure 6-14 Dissipation 1-V Output at 25°C

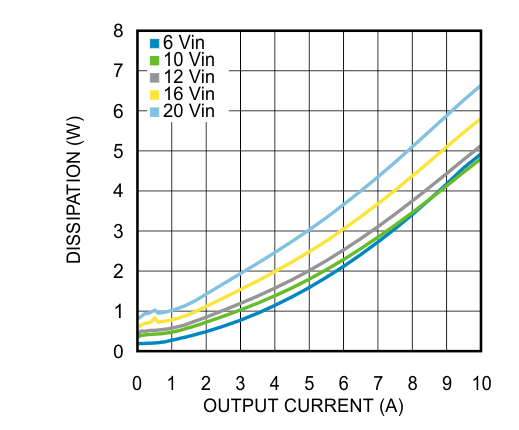

Figure 6-16 Dissipation 5-V Output at 85°C
Figure 6-18 Dissipation 3.3-V Output at 85°C
Figure 6-20 Dissipation 2.5-V Output at 85°C
Figure 6-22 Dissipation 1.8-V Output at 85°C
Figure 6-24 Dissipation 1.5-V Output at 85°C
Figure 6-26 Dissipation 1.2-V Output at 85°C
Figure 6-28 Dissipation 1-V Output at 85°C
VIN = 12 V, VOUT = 5 V
Figure 6-30 Thermal Derating

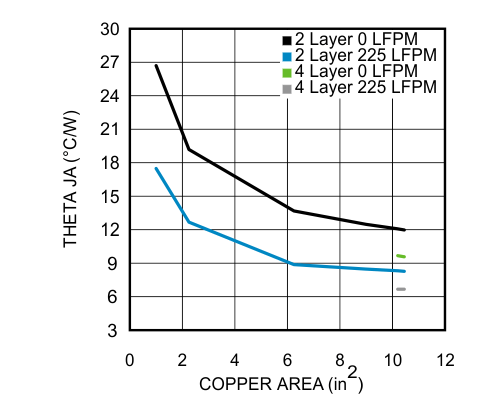

Figure 6-32 RθJA vs Copper Heat Sinking Area
12 VIN, 5 VOUT at Full Load, BW = 250 MHz
Figure 6-34 Output Ripple
12 VIN, 3.3 VOUT at Full Load, BW = 250 MHz
Figure 6-36 Output Ripple
12 VIN, 1.2 VOUT at Full Load, BW = 250 MHz
Figure 6-38 Output Ripple
12 VIN, 3.3 VOUT 1- to 10-A Step
Figure 6-40 Transient Response
Figure 6-42 Short Circuit Current vs Input Voltage
CSS = 0.47 µF
Figure 6-44 3.3-VOUT Soft Start
