Understanding Spurs by Offsets

The first step in optimizing spurs is to be able to identify them by offset. Figure 8-1 gives a good example that can be used to isolate the following spur types.

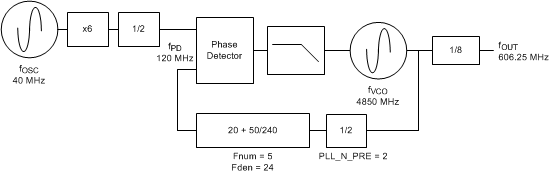

GUID-445551C8-D779-4E27-BF6F-9620F4C31166-low.gifFigure 8-1 Spur Offset Frequency Example

Based on Figure 8-1, the most common spurs can be calculated from the frequencies. Note that the % is the modulus operator and is meant to mean the difference to the closest integer multiple. Some examples of how to use this operator are: 36 % 11 = 3, 1000.1 % 50 = 0.1, and 5023.7 % 122.88 = 14.38. Applying this concept, the spurs at various offsets can be identified from Figure 8-1.

Table 8-1 Spur Definition Table
SPUR TYPEOFFSETOFFSET IN Figure 8-1COMMENTS
OSCinfOSC40 MHzThis spur occurs at harmonics of the OSCin frequency.
FpdfPD120 MHzThe phase detector spur has many possible mechanisms and occurs at multiples of the phase detector frequency.
fOUT % fOSCfOUT % fOSC606.25 % 40 = 6.25 MHzThis spur is caused by mixing between the output and input frequencies.
fVCO% fOSCfVCO % fOSC4850 % 40 = 10 MHzThis spur is caused by mixing between the VCO and input frequencies.
fVCO% fPDfVCO % fPD4850 % 120 = 50 MHzThis spur would be the same offset as the integer boundary spur if PLL_N_PRE=1, but can be different if this value is greater than one.
Integer BoundaryfPD *(Fnum%Fden)/ Fden)120 × (5%24)/24 = 25 MHzThis is a single spur
Primary FractionalfPD / Fden120 / 24 = 5 MHzThe primary fractional
Sub-FractionalfPD / Fden / k

k=2,3, or 6
First Order Modulator: None
2nd Order Modulator: 120/24/2 = 2.5 MHz
3rd Order Modulator: 120/24/6 = 0.83333 MHz
4th Order Modulator: 120/24/12 = 0.416666 MHz
To Calculate k:
1st Order Modulator: k=1
2nd Order Modulator: k=1 if Fden is odd, k=2 if Fden is even
3rd Order Modulator: k=1 if Fden not divisible by 2 or 3, k=2 if Fden divisible by 2 not 3, k=3 if Fden divisible by 3 but not 2, Fden = 6 if Fden divisible by 2 and 3
4th Order Modulator: k=1 if Fden not divisible by 2 or 3. k=3 if Fden divisible by 3 but not 2, k=4 if Fden divisible by 2 but not 3, k=12 if Fden divisible by 2 and 3
Sub-Fractional Spurs exist if k>1

In the case that two different spur types occur at the same offset, either name would be correct. Some may name this by the more dominant cause, while others would simply name by choosing the name that is near the top of Table 8-1.
