7.8 Typical Characteristics

Unless otherwise specified the following conditions apply: TA = 25°C and VIN = 12 V

VFB = 1.2 V

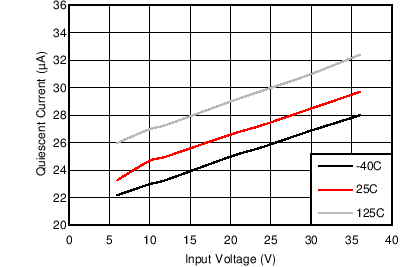

Figure 7-1 Non-Switching Input Supply Current
VOUT = 0 VƒS = 400 kHzSee Figure 9-31
Figure 7-3 Short-Circuit Output Current
IOUT = 1 mASee Figure 9-31

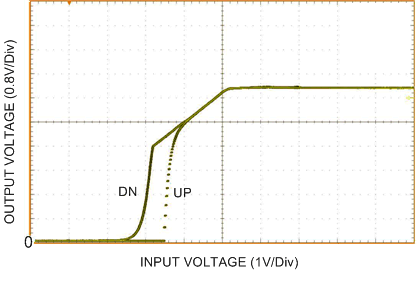

Figure 7-5 UVLO Thresholds
EN = 0 V
Figure 7-2 Shutdown Supply Current

Figure 7-4 Precision Enable Thresholds
IOUT = 0 AVOUT = 5 VSee Figure 9-31
ƒSW = 400 kHz

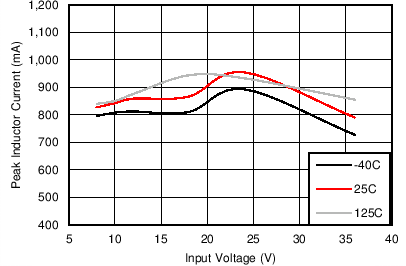

Figure 7-6 IPEAK-MIN
