6.4 Typical Characteristics

Unless otherwise specified, VIN = 5 V and TA = 25°C
LMR10530 30167313.png
Figure 1. Efficiency vs Load Current - Both Options
LMR10530 30167315.png
Figure 3. Efficiency vs Load Current - LMR10530Y
LMR10530 30167326.png
Figure 5. Oscillator Frequency vs Temperature - LMR10530Y
LMR10530 30167329.png
Figure 7. RDS(ON) vs Temperature
LMR10530 30167332.png
Figure 9. LMR10530Y IQ (Switching)
LMR10530 30167328.png
Figure 11. Frequency Foldback
LMR10530 30167336.png
Figure 13. Loop Gain And Phase - LMR10530Y
LMR10530 30167352.png

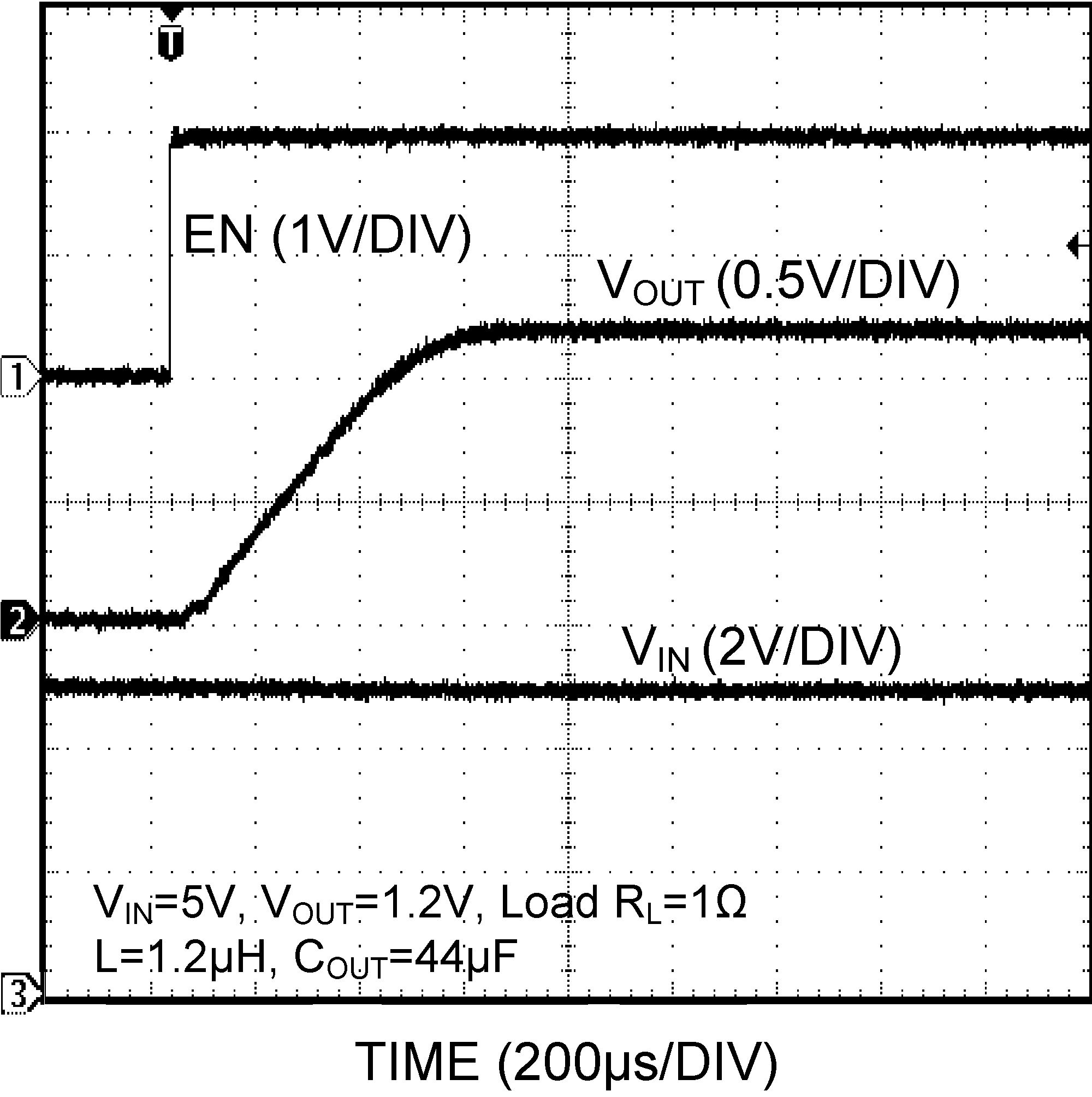

Figure 15. Start-up by EN - LMR10530X
LMR10530 30167354.png
Figure 17. Startup With EN Tied to VIN - LMR10530X
LMR10530 30167351.png
Figure 19. Short-Circuit Release - LMR10530X
LMR10530 30167314.png
Figure 2. Efficiency vs Load Current - LMR10530X
LMR10530 30167325.png

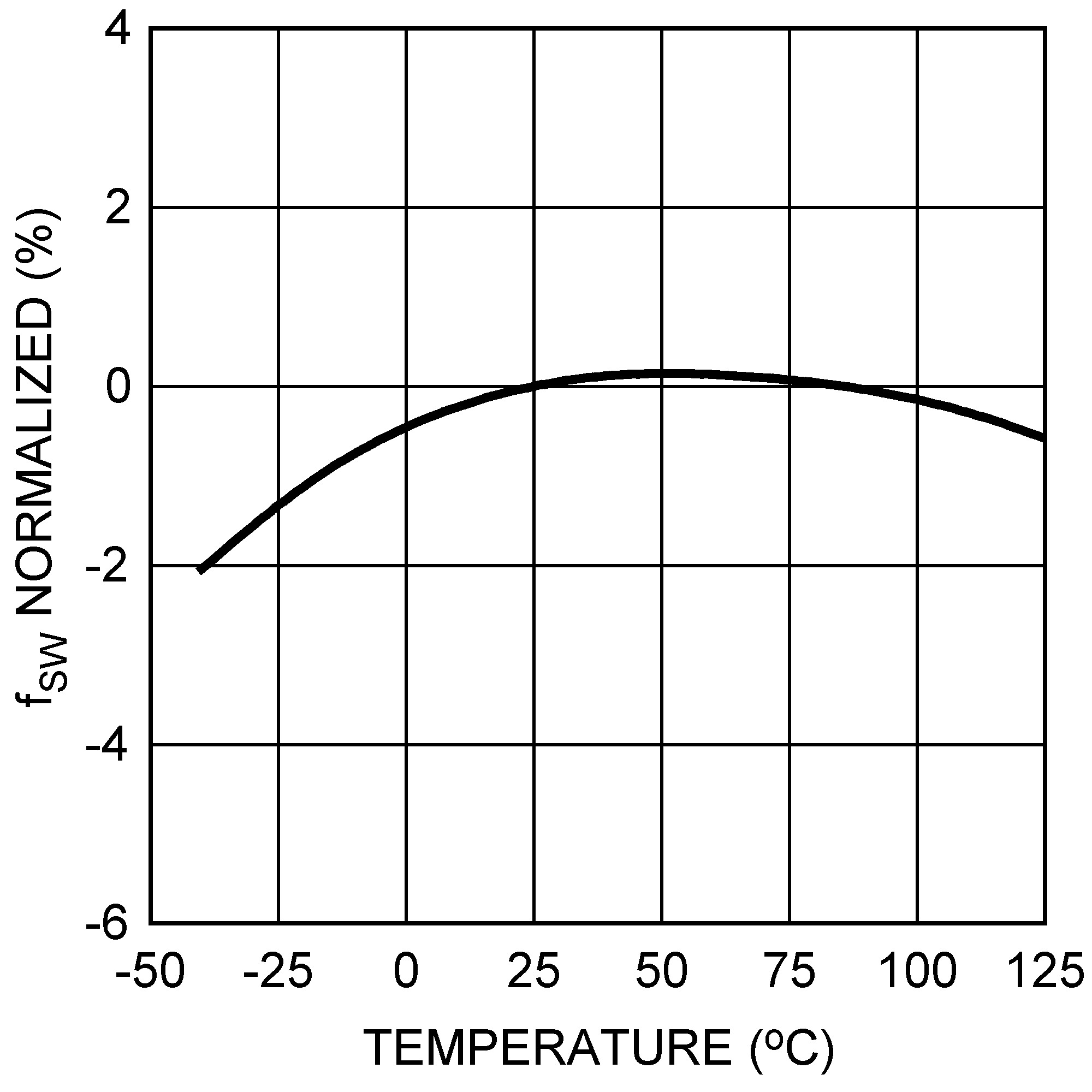

Figure 4. Oscillator Frequency vs Temperature - LMR10530X
LMR10530 30167327.png
Figure 6. Current Limit vs Temperature
LMR10530 30167331.png
Figure 8. LMR10530X IQ (Switching)
LMR10530 30167333.png
Figure 10. VFB vs Temperature
LMR10530 30167335.png
Figure 12. Loop Gain and Phase - LMR10530X
LMR10530 30167347.png
Figure 14. Load Step Response - LMR10530X
LMR10530 30167353.png

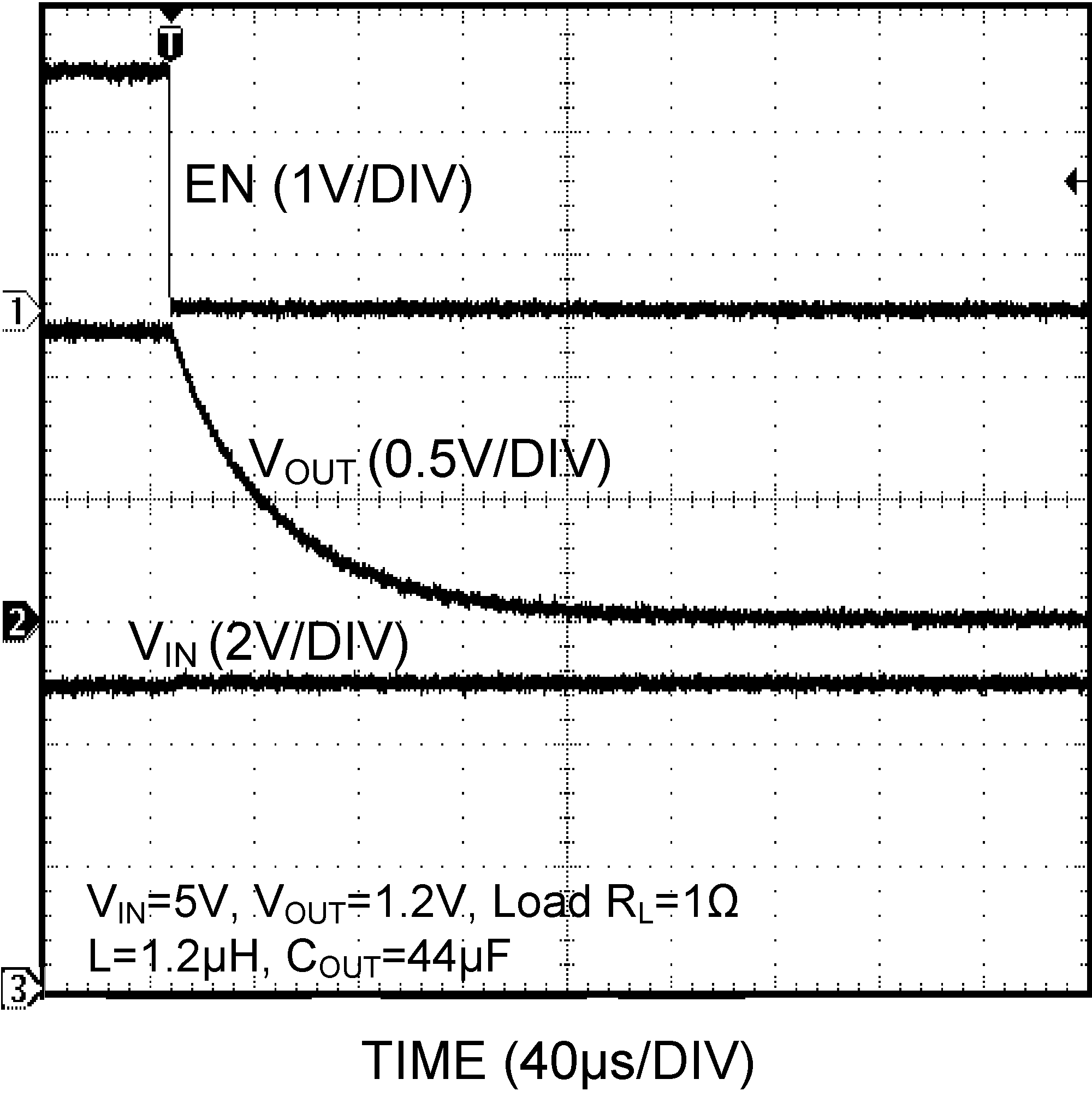

Figure 16. Shutdown by EN - LMR10530X
LMR10530 30167350.png
Figure 18. Short-Circuit Triggering - LMR10530X
