8 Parameter Measurement Information

GUID-7E8B5D6A-AD55-4503-8CB2-A0C973E918EE-low.gifFigure 8-1 LVDS Output DC Configuration During Device Test
GUID-20210914-SS0I-9WQM-ZDJL-4DDW6DXKSMVB-low.svgFigure 8-2 LVDS Output AC Configuration During Device Test

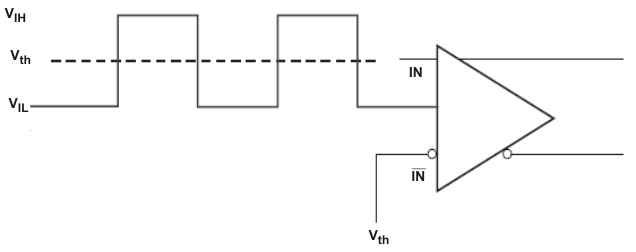

GUID-A261E429-9767-4BA7-B450-D467E09A000B-low.gifFigure 8-3 DC-Coupled LVCMOS Input During Device Test
GUID-ED8B2315-A708-4F25-9FA0-2AC4ABD37BFE-low.gifFigure 8-4 Output Voltage and Rise/Fall Time

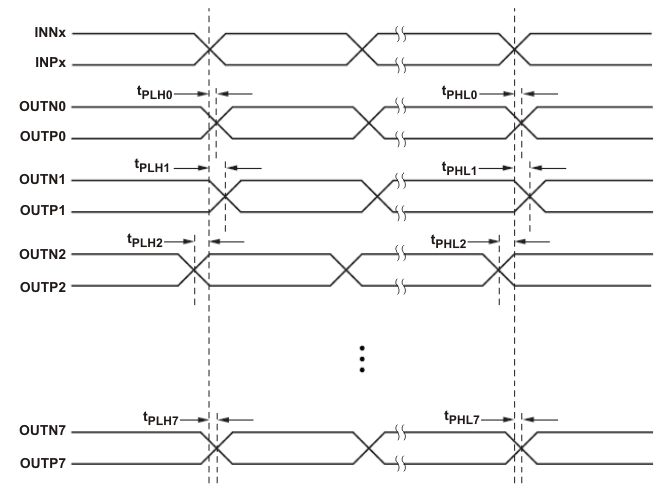

A. Output skew is calculated as the greater of the following: the difference between the fastest and the slowest tPLHn or the difference between the fastest and the slowest tPHLn (n = 0, 1, 2, ..7)
B. Part-to-part skew is calculated as the greater of the following: the difference between the fastest and the slowest tPLHn or the difference between the fastest and the slowest tPHLn across multiple devices (n = 0, 1, 2, ..7)
Figure 8-5 Output Skew and Part-to-Part Skew

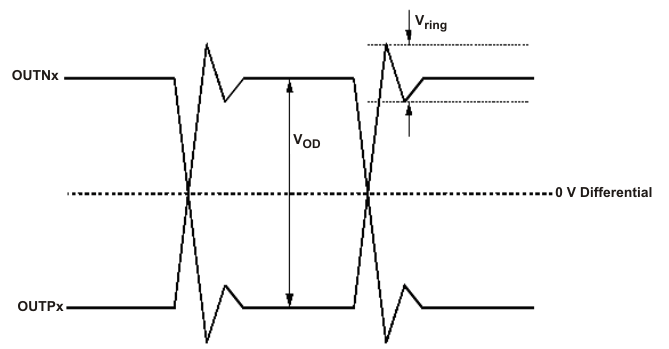

GUID-E4D83546-9D23-4057-BA57-97DD4D26E425-low.gifFigure 8-6 Output Overshoot and Undershoot

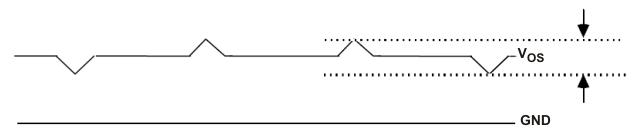

GUID-5B917D0C-93FE-4D50-82DF-40E778679393-low.gifFigure 8-7 Output AC Common Mode
