Pin Configuration and Functions

Figure 6-1 LMK1C1102 PW Package8-Pin TSSOPTop View
Figure 6-3 LMK1C1103 PW Package8-Pin TSSOPTop View
  1. The DQF (WSON) package is equivalent to the DFN package of other vendors.

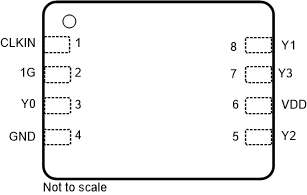

Figure 6-5 LMK1C1104 DQF Package8-Pin WSONTop View
  1. The DQF (WSON) package is equivalent to the DFN package of other vendors.
Figure 6-2 LMK1C1102 DQF Package8-Pin WSONTop View
Figure 6-4 LMK1C1104 PW Package8-Pin TSSOPTop View
Table 6-1 Pin Functions
PIN TYPE DESCRIPTION
NAME LMK1C
1102
LMK1C
1103
LMK1C
1104
LVCMOS CLOCK INPUT
CLKIN 1 1 1 Input Single-ended clock input with internal 300-kΩ (typical) pulldown resistor to GND. Typically connected to a single-ended clock input.
CLOCK OUTPUT ENABLE
1G 2 2 2 Input Global Output Enable with internal 300-kΩ (typical) pulldown resistor to GND. Typically connected to VDD with external pullup resistor.
HIGH: outputs enabled
LOW: outputs disabled
LVCMOS CLOCK OUTPUT
Y0 3 3 3 Output LVCMOS output. Typically connected to a receiver. Unused outputs can be left floating.
Y1 8 8 8
Y2 5 5
Y3 7
SUPPLY VOLTAGE
VDD 6 6 6 Power Power supply terminal. Typically connected to a 3.3-V, 2.5-V, or 1.8-V supply. The VDD pin is typically connected to an external 0.1-μF capacitor near the pin.
GROUND
GND 4 4 4 GND Power supply ground.
