3 说明

LM76005 稳压器是一款易于使用的同步降压直流/直流转换器，能够以高达 60V 的输入电压驱动高达 5A (LM76005) 的负载电流。容差高达 65V，有助于轻松实现输入涌流保护。

LM76005 采用峰值电流模式控制，能够以很小的解决方案尺寸提供出色的效率和输出精度。PWM 和 PFM 模式之间无缝转换，以及超低的 MOSFET 导通电阻和外部偏置输入，均确保在整个负载范围内实现卓越的效率。

该器件需要的外部组件很少，其引脚专为简化 PCB 布局而设计，可提供优异的 EMI (CISPR22) 和热性能。LM76005 的小型解决方案尺寸和功能集旨在简化各种终端设备的实施。

LM76005 器件采用具有可湿性侧面的 WQFN 30 引脚无引线封装。

器件信息
器件型号(1)封装封装尺寸（标称值）
LM76005WQFN (30)6.00mm × 4.00mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。

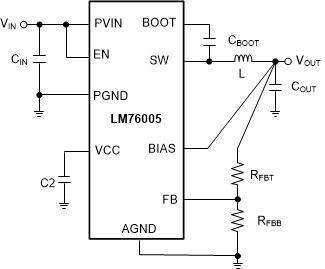

GUID-5AB7BD52-2E69-4BBC-90DE-67013F267AD2-low.gif简化版原理图

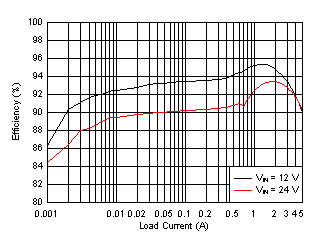

GUID-5D49912D-6E35-4264-87DC-D896992F4A17-low.gif效率：VOUT = 5V，fSW = 400kHz，自动模式
