8.2.1.3 Application Curves

For additional details on the wavefroms shown in this section, please refer to application note AN-2131 LM21215A Evaluation Board, SNVA477.

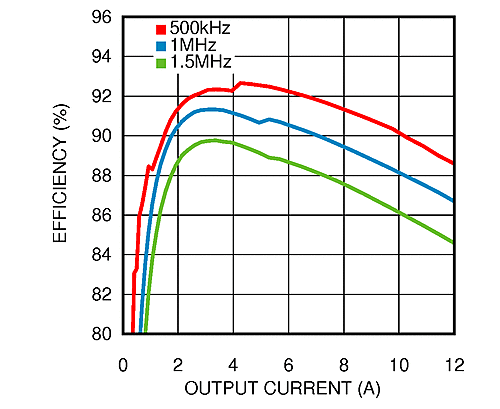

LM21215A 30154135.gifFigure 36. Efficiency vs Load Current, VOUT = 1.2 V

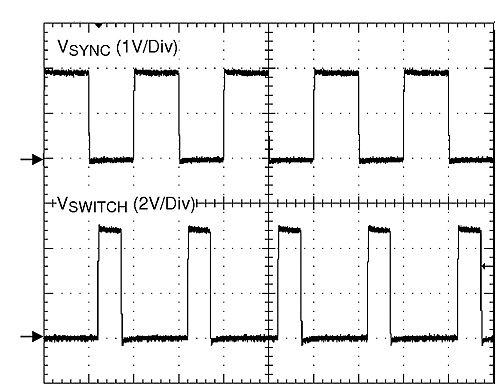

LM21215A 30154105.gifFigure 38. SW and SYNC Voltage Waveforms (1 µs/Div)

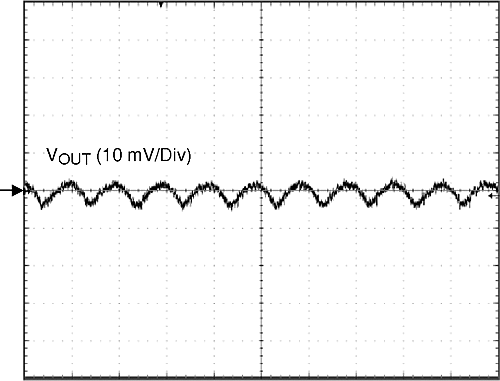

LM21215A 30154104.gifFigure 37. Output Ripple Voltage Waveform (1 µs/Div)
LM21215A 30154142.gifFigure 39. Bode Plot
