5 Pin Configuration and Functions

P Package
8-Pin PDIP
Top View
LF198-N LF298 LF398-N LF198A-N LF398A-N dual_in_package_snosbi3.gif
D Package
14-Pin SOIC
Top View
LF198-N LF298 LF398-N LF198A-N LF398A-N small_outline_package_snosbi3.gif

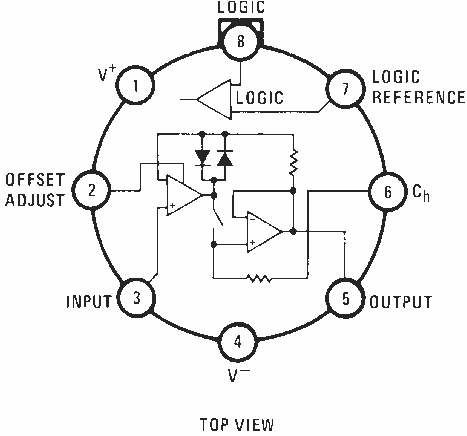

LMC Package
8-Pin TO-99
Top View
LF198-N LF298 LF398-N LF198A-N LF398A-N metal_can_package_snosbi3.png
A military RETS electrical test specification is available on request. The LF198-N may also be procured to Standard Military Drawing #5962-8760801GA or to MIL-STD-38510 part ID JM38510/12501SGA.

Pin Functions

PIN TYPE(1) DESCRIPTION
NAME LF298, LF398-N LFx98x LF398-N
SOIC-14 TO-99 PDIP-8
V+ 12 1 1 P Positive supply
OFFSET ADJUST 14 2 2 A DC offset compensation pin
INPUT 1 3 3 A Analog Input
V– 3 4 4 P Negative supply
OUTPUT 7 5 5 O Output
Ch 8 6 6 A Hold capacitor
LOGIC REFERENCE 10 7 7 I Reference for LOGIC input
LOGIC 11 8 8 I Logic input for Sample and Hold modes
NC 2, 4, 5, 6, 9, 13 — — NA No connect
(1) P = Power, G = Ground, I = Input, O = Output, A = Analog
