9.2.10 2-Channel Switch

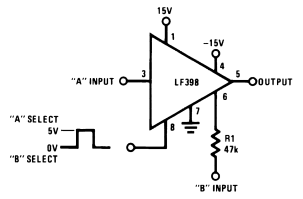

The HOLD CAPACITOR pin could be alternatively used as a second input to create a 2-channel switch shown Figure 36

LF198-N LF298 LF398-N LF198A-N LF398A-N 2_channel_switch_snosbi3.gifFigure 36. 2-Channel Switch

In the configuration of Figure 36, input signal A and input signal B have the characteristics listed in Table 1.

Table 1. 2-Channel Switch Characteristics

A B
Gain 1 ± 0.02% 1 ± 0.2%
ZIN 1010 Ω 47 kΩ
BW ≈1 MHz ≈400 kHz
Crosstalk @ 1 kHz –90 dB –90 dB
Offset ≤ 6 mV ≤ 75 mV
