6.13 Typical Characteristics

ISO1042 D001_SLLSF09.gif
VCC1 = 5 V RL = 60 Ω CL(RXD) = 15 pF
Temp = 25°C
Figure 5. ICC2 vs VCC2 for Recessive, Dominant and Different CAN Datarates

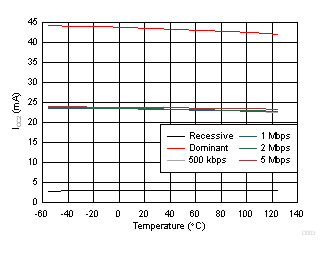

ISO1042 D003_SLLSF09.gif
VCC1 = VCC2 = 5 V RL = 60 Ω CL(RXD) = 15 pF
Figure 7. ICC2 vs Ambient Temperature for Recessive, Dominant and Different CAN Datarates
ISO1042 D005_SLLSF09.gif
VCC1 = VCC2 = 5 V RL = 60 Ω CL(RXD) = 15 pF
Figure 9. Loop Delay vs Ambient Temperature
ISO1042 D002_SLLSES7.gif
VCC1 = 5 V RL = 60 Ω
CL = Open Temp = 25°C
Figure 11. VOD(DOM) Over VCC

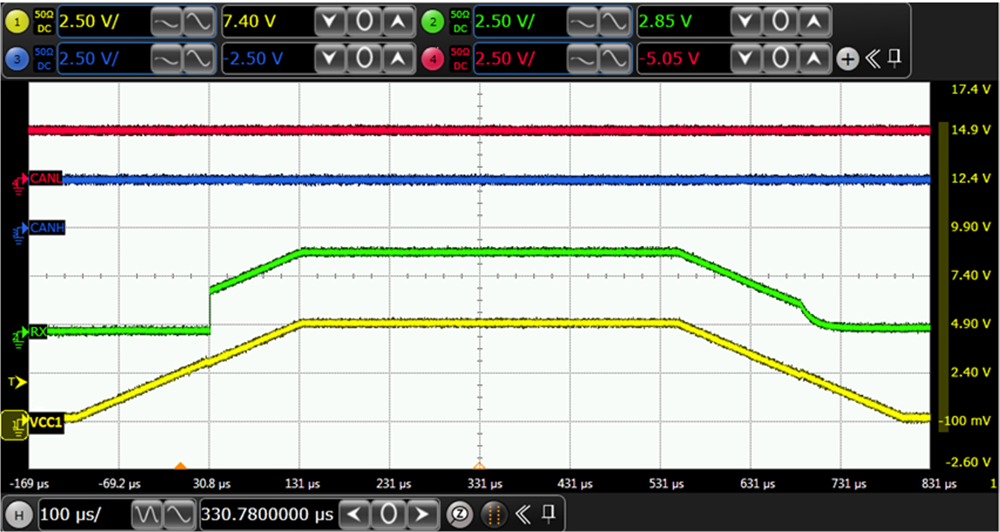

ISO1042 sllsF09-glitch-free-power-up-on-vcc1-can-bus-remains-recessive.png
TXD = VCC1 RL = 60 Ω VCC1 = VCC2 = 5 V
Figure 13. Glitch Free Power Up on VCC1 – CAN Bus Remains Recessive

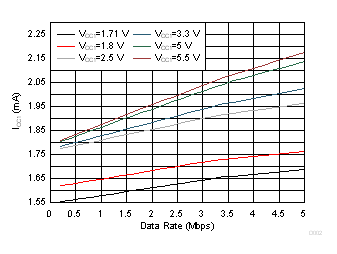

ISO1042 D002_SLLSF09.gif
VCC2 = 5 V RL = 60 Ω CL(RXD) = 15 pF
Temp = 25°C
Figure 6. ICC1 vs Datarate

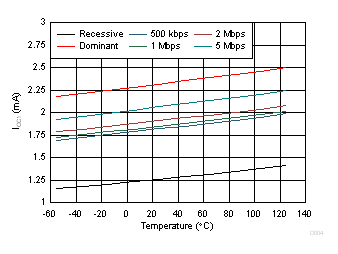

ISO1042 D004_SLLSF09.gif
VCC1 = VCC2 = 5 V RL = 60 Ω CL(RXD) = 15 pF
Temp = 25°C
Figure 8. : ICC1 vs Ambient Temperature for Recessive, Dominant and Different CAN Datarates.
ISO1042 D001_SLLSES7.gif
VCC = 5 V VCC1 = 5 V RL = 60 Ω
CL = Open
Figure 10. VOD(DOM) Over Temperature

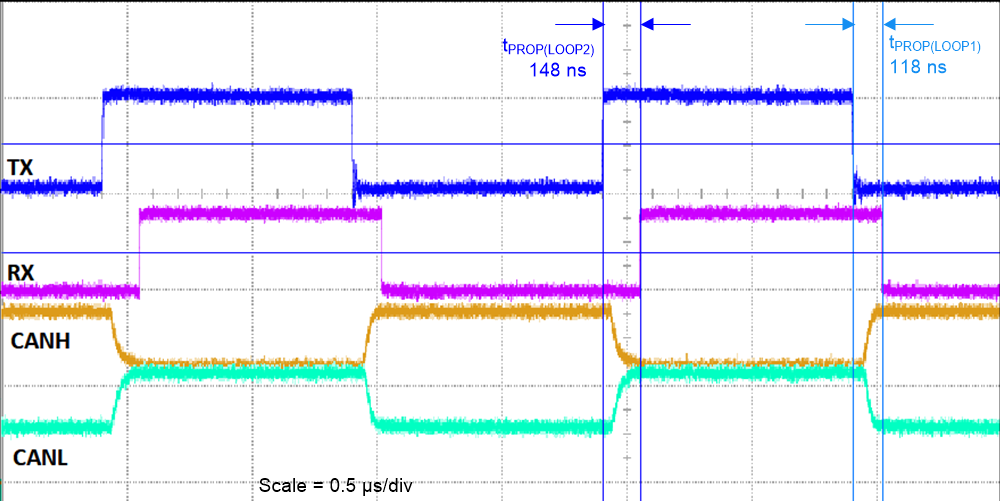

ISO1042 sllsF09-typical-txd-rxd-canh-and-canl-waveforms-at-1-mbps.png
VCC1 = VCC2 = 5 V RL = 60 Ω CL = 100 pF
CL(RXD) = 15 pF
Figure 12. Typical TXD, RXD, CANH and CANL Waveforms at 1 Mbps
ISO1042 sllsF09-glitch-free-power-up-on-vcc2-can-bus-remains-recessive.png
TXD = VCC1 RL = 60 Ω VCC1 = VCC2 = 5 V
Figure 14. Glitch Free Power Up on VCC2 – CAN Bus Remains Recessive
