Typical Application

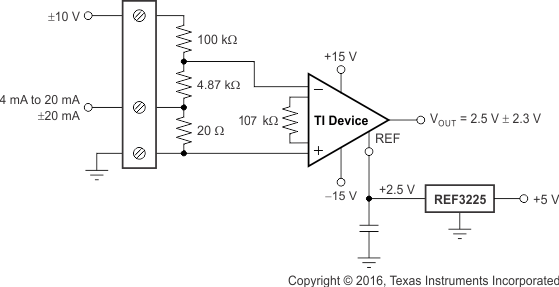

An example programmable logic controller (PLC) input application using an INA827 is shown in Figure 62.

INA827 ai_plc_input_INA827.pngFigure 62. ±10-V, 4-mA to 20-mA PLC Input
