7 Typical Characteristics

at TA = +25°C, VS = ±15 V, RL = 10 kΩ, VREF = 0 V, and G = 5 (unless otherwise noted)
INA827 tc_1_vosi_distri_bos631.png
Figure 1. Typical Distribution of Input Offset Voltage
INA827 tc_2_voso_distri_bos631.png
Figure 3. Typical Distribution of Output Offset Voltage
INA827 tc_5_ib_distri_bos631.png
Figure 5. Typical Distribution of Input Bias Current
INA827 tc_7_common_mode_vs_output_1_bos631 rev1.png
Single supply, VS = +3 V, G = 5
Figure 7. Input Common-Mode Voltage vs Output Voltage
INA827 tc_9_common_mode_vs_output_3_bos631.png
Single supply, VS = +5 V, G = 5
Figure 9. Input Common-Mode Voltage vs Output Voltage
INA827 tc_11_common_mode_vs_output_5_bos631.png
Dual supply, VS = ±5 V
Figure 11. Input Common-Mode Voltage vs Output Voltage
INA827 tc_13_common_mode_vs_output_7_bos631.png
Dual supply, VS = ±15 V, ±12 V, G = 100
Figure 13. Input Common-Mode Voltage vs Output Voltage
INA827 C015_SBOS631.png
Figure 15. CMRR vs Frequency (RTI)
INA827 tc_18_psrr_pos_bos631.png
Figure 17. Positive PSRR vs Frequency (RTI)
INA827 tc_22_gain_vs_frequency_bos631.png
Figure 19. Gain vs Frequency
INA827 tc_24_current_noise_density_bos631.png
Figure 21. Current Noise Spectral Density vs Frequency (RTI)
INA827 tc_26_low_freq_voltage_noise_2_bos631.gif
Figure 23. 0.1-Hz to 10-Hz RTI Voltage Noise (G = 1000)
INA827 tc_28_bias_current_vs_common_mode_1_bos631.png
VS = +2.7 V
Figure 25. Input Bias Current vs Common-Mode Voltage
INA827 tc_30_bias_current_vs_temperature_bos631.png
Figure 27. Input Bias Current vs Temperature
INA827 tc_32_gain_vs_temperature_bos631.png
Figure 29. Gain Error vs Temperature (G = 5)
INA827 tc_35_gain_nonlinearity_1_bos631.png
Figure 31. Gain Nonlinearity (G = 5)
INA827 tc_37_gain_nonlinearity_3_bos631.png
Figure 33. Gain Nonlinearity (G = 100)
INA827 tc_57_v_os_vs_v_cm_1_bos631.png
VS = ±15 V
Figure 35. Offset Voltage vs
Negative Common-Mode Voltage
INA827 tc_59_v_os_vs_v_cm_3_bos631 rev 1.png
VS = +3 V
Figure 37. Offset Voltage vs
Negative Common-Mode Voltage
INA827 tc_39_pos_output_swing_bos631.png
VS = ±15 V
Figure 39. Positive Output Voltage Swing vs
Output Current
INA827 tc_43_large_signal_bos631.png
Figure 41. Large-Signal Frequency Response
INA827 tc_45_capacitive_load_bos631.gif
Figure 43. Small-Signal Response Over Capacitive Loads
(G = 5)
INA827 tc_52_small_signal_response_2_bos631.gif
G = 10, RL = 10 kΩ, CL = 100 pF
Figure 45. Small-Signal Response
INA827 tc_54_small_signal_response_4_bos631.gif
G = 1000, RL = 10 kΩ, CL = 100 pF
Figure 47. Small-Signal Response
INA827 tc_62_large_signal_3_bos631.gif
G = 10, RL = 10 kΩ, CL = 100 pF
Figure 49. Large-Signal Response and Settling Time
INA827 tc_64_large_signal_5_bos631.gif
G = 1000, RL = 10 kΩ, CL = 100 pF
Figure 51. Large-Signal Response and Settling Time
INA827 tc_56_warm_up_bos631.png
Figure 53. Change In Input Offset Voltage vs Warm-Up Time
INA827 tc_2_vosi_drift_distri_bos631.png
Figure 2. Typical Distribution of Input Offset Voltage Drift
INA827 tc_4_voso_drift_distri_bos631.png
Figure 4. Typical Distribution of Output Offset Voltage Drift
INA827 tc_6_ios_distri_bos631.png
Figure 6. Typical Distribution of Input Offset Current
INA827 tc_8_common_mode_vs_output_2_bos631 rev1.png
Single supply, VS = +3 V, G = 100
Figure 8. Input Common-Mode Voltage vs Output Voltage
INA827 tc_10_common_mode_vs_output_4_bos631.png
Single supply, VS = +5 V, G = 100
Figure 10. Input Common-Mode Voltage vs Output Voltage
INA827 tc_12_common_mode_vs_output_6_bos631.png
Dual supply, VS = ±15 V, ±12 V, G = 5
Figure 12. Input Common-Mode Voltage vs Output Voltage
INA827 tc_14_overvoltage_vs_current_1_bos631.png
G = 1, VS = ±15 V
Figure 14. Input Overvoltage vs Input Current

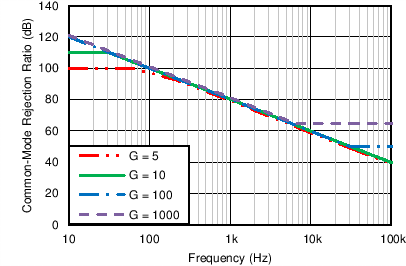

INA827 C016_SBOS631.png
1-kΩ source imbalance
Figure 16. CMRR vs Frequency (RTI)
INA827 tc_19_psrr_neg_bos631.png
Figure 18. Negative PSRR vs Frequency (RTI)
INA827 tc_23_voltage_noise_density_bos631.png
Figure 20. Voltage Noise Spectral Density vs Frequency (RTI)
INA827 tc_25_low_freq_voltage_noise_1_bos631.gif
Figure 22. 0.1-Hz to 10-Hz RTI Voltage Noise (G = 5)
INA827 tc_27_low_freq_current_noise_bos631.gif
Figure 24. 0.1-Hz to 10-Hz RTI Current Noise
INA827 tc_29_bias_current_vs_common_mode_2_bos631.png
VS = ±15 V
Figure 26. Input Bias Current vs Common-Mode Voltage
INA827 tc_31_offset_current_vs_temperature_bos631.png

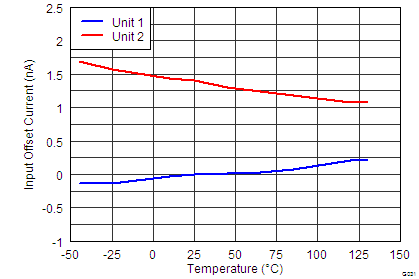

Figure 28. Input Offset Current vs Temperature
INA827 tc_34_supply_current_vs_temperature_bos631.png
Figure 30. Supply Current vs Temperature
INA827 tc_36_gain_nonlinearity_2_bos631.png
Figure 32. Gain Nonlinearity (G = 10)
INA827 tc_38_gain_nonlinearity_4_bos631.png
Figure 34. Gain Nonlinearity (G = 1000)
INA827 tc_58_v_os_vs_v_cm_2_bos631.png
VS = ±15 V
Figure 36. Offset Voltage vs
Positive Common-Mode Voltage
INA827 tc_60_v_os_vs_v_cm_4_bos631 rev1.png
VS = +3 V
Figure 38. Offset Voltage vs
Positive Common-Mode Voltage
INA827 tc_40_neg_output_swing_bos631.png
VS = ±15 V
Figure 40. Negative Output Voltage Swing vs
Output Current
INA827 tc_44_settling_time_bos631.png
VS = ±15 V
Figure 42. Settling Time vs Step Size
INA827 tc_46_small_signal_response_1_bos631.gif
G = 5, RL = 1 kΩ, CL = 100 pF
Figure 44. Small-Signal Response
INA827 tc_53_small_signal_response_3_bos631.gif
G = 100, RL = 10 kΩ, CL = 100 pF
Figure 46. Small-Signal Response
INA827 tc_61_large_signal_2_bos631.gif
G = 5, RL = 10 kΩ, CL = 100 pF
Figure 48. Large-Signal Response and Settling Time
INA827 tc_63_large_signal_4_bos631.gif
G = 100, RL = 10 kΩ, CL = 100 pF
Figure 50. Large-Signal Response and Settling Time
INA827 tc_55_open_loop_impedance_bos631.png
Figure 52. Open-Loop Output Impedance
