Typical Characteristics

at TA = 25°C, VS = 5 V, VIN+ = 12 V, VREF = 2.5 V, ISENSE = IN+ = 0 A, unless otherwise noted.

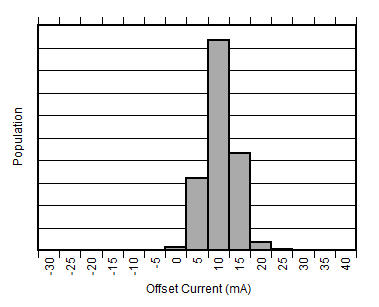

Figure 6-1 INA250A1-Q1 Input Offset Distribution

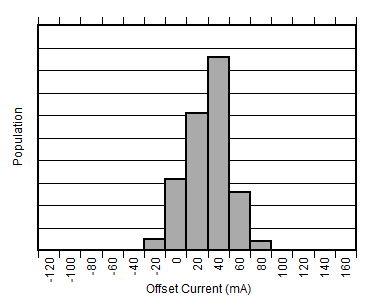

Figure 6-3 INA250A3-Q1 Input Offset Distribution

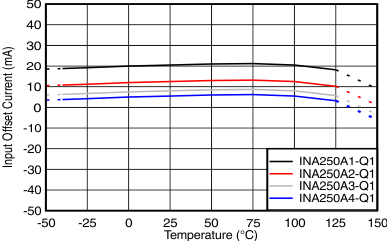

Figure 6-5 Input Offset vs Temperature
Figure 6-7 INA250A2-Q1 Common-Mode Rejection Ratio Distribution
Figure 6-9 INA250A4-Q1 Common-Mode Rejection Ratio Distribution
Figure 6-11 Power-Supply Rejection Ratio Distribution
Figure 6-13 System Gain Error vs Temperature
Figure 6-15 Amplifier Gain Error vs Temperature

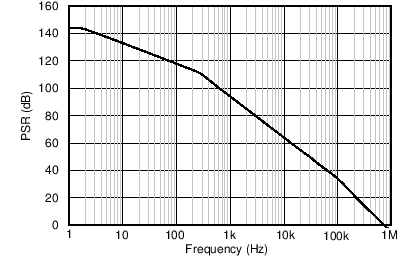

VCM = 12 V, VREF = 2.5 V, ISENSE = 0 A, VS = 5 V + 250-mV sine disturbance
Figure 6-17 Power-Supply Rejection vs Frequency

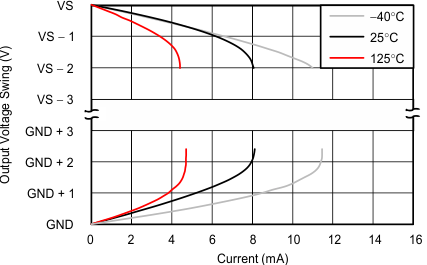

Figure 6-19 Output Voltage Swing vs Output Current
ISENSE = 0 A, VS = 0 V, VREF = 0 V

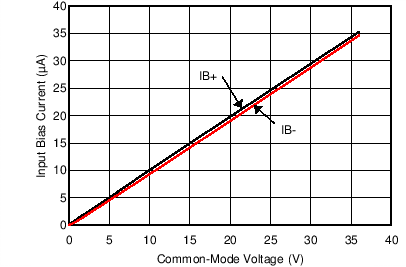

Figure 6-21 Input Bias Current vs Common-Mode Voltage (VS = 0 V)
VREF = VS / 2
Figure 6-23 Quiescent Current vs Temperature
VS = 5 V, VREF = 2.5 V, ISENSE = 0 A

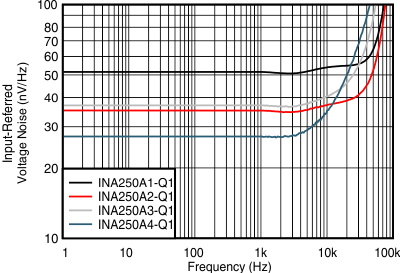

Figure 6-25 Input-Referred Voltage Noise vs Frequency
Input = (VIN+) - (VIN-)

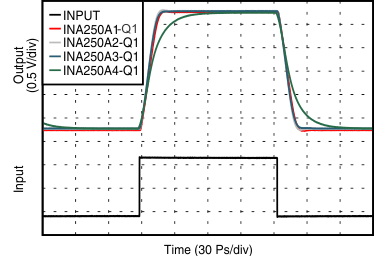

Figure 6-27 Step Response

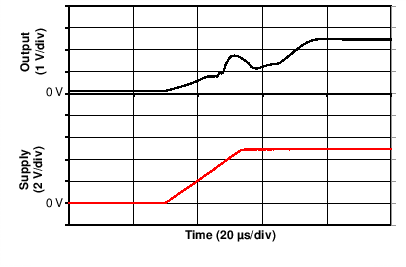

Figure 6-29 Start-Up Response
Figure 6-2 INA250A2-Q1 Input Offset Distribution
Figure 6-4 INA250A4-Q1 Input Offset Distribution
Figure 6-6 INA250A1-Q1 Common-Mode Rejection Ratio Distribution
Figure 6-8 INA250A3-Q1 Common-Mode Rejection Ratio Distribution
Figure 6-10 Common-Mode Rejection Ratio vs Temperature
Figure 6-12 Power-Supply Rejection Ratio vs Temperature

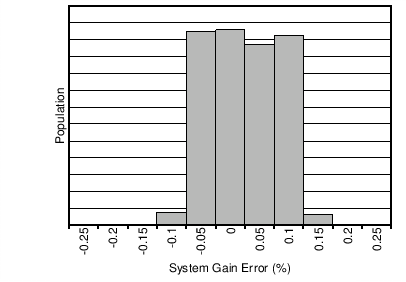

System gain error = RSHUNT error + amplifier gain error, load current = 10 A
Figure 6-14 System Gain Error Distribution
VCM = 12 V, ISENSE = 500 mAPP
Figure 6-16 Amplifier Gain vs Frequency

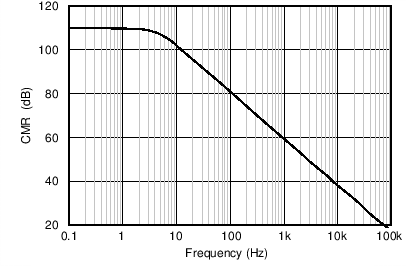

VS = 5 V, VREF = 2.5 V, ISENSE = 0 A, VCM = 1-V sine wave
Figure 6-18 Common-Mode Rejection vs Frequency
ISENSE = 0 A, VS = 5 V
Figure 6-20 Input Bias Current vs Common-Mode Voltage (VS = 5 V)
ISENSE = 0 A, VS = 5 V
Figure 6-22 Input Bias Current vs Temperature
VREF = 2.5 V
Figure 6-24 Quiescent Current vs Supply Voltage
VS = 5 V, VCM = 0 V, ISENSE = 0 A
Figure 6-26 0.1-Hz to 10-Hz Voltage Noise (Referred-to-Input)

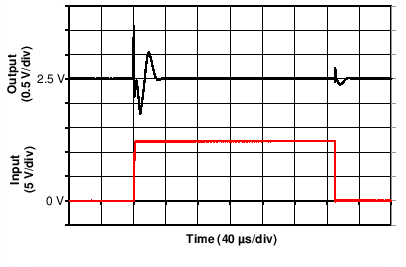

Input = VIN+, VREF = 2.5 V
Figure 6-28 Common-Mode Transient Response
