6.9 Typical Characteristics
All specifications at TA = 25°C, VS = 12 V, VCM = 12 V, and VSENSE = 100 mV, unless otherwise noted.

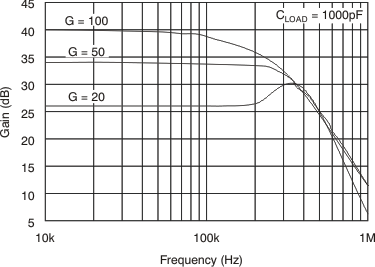

Figure 6-2 Gain vs.
Frequency

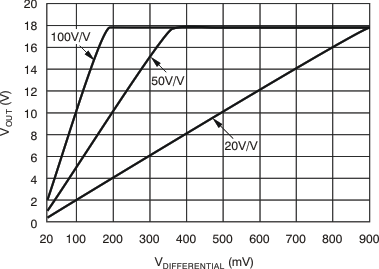

Figure 6-4 Gain Plot
Figure 6-6 Total Output Error vs.
VSENSE

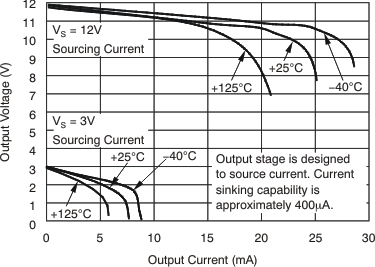

Figure 6-8 Positive Output Voltage
Swing vs. Output Current

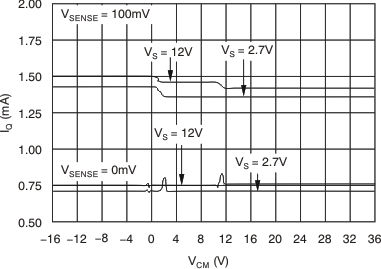

Figure 6-10 Quiescent Current vs.
Common-Mode Voltage

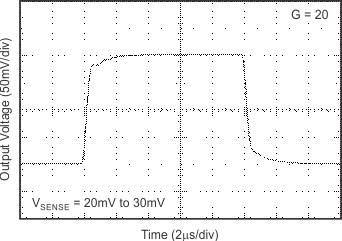

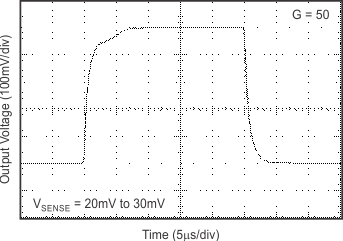

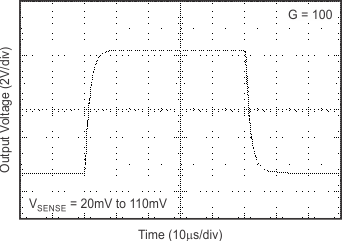

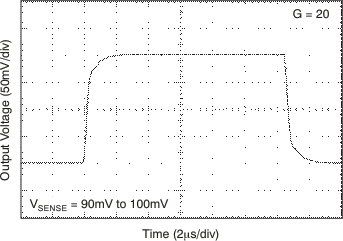

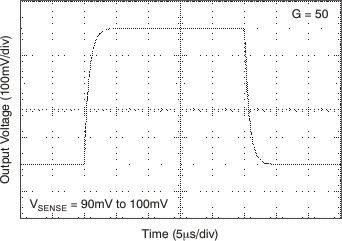

Figure 6-12 Step Response

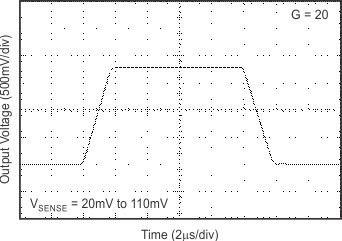

Figure 6-14 Step Response
Figure 6-16 Step Response
Figure 6-18 Step Response
Figure 6-20 Comparator Trip Point vs.
Supply Voltage

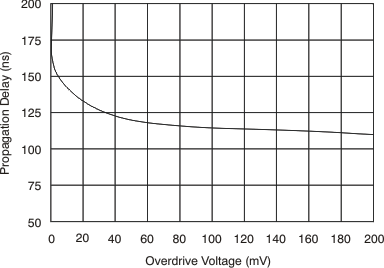

Figure 6-22 Comparator 1 Propagation
Delay vs. Overdrive Voltage
Figure 6-24 Comparator Propagation
Delay vs. Temperature
Figure 6-3 Gain vs.
Frequency

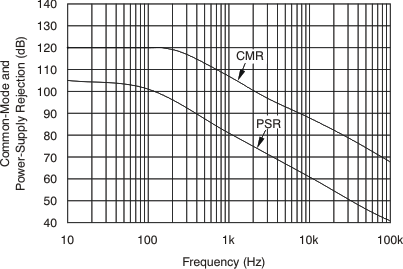

Figure 6-5 Common-Mode and
Power-Supply Rejection vs. Frequency

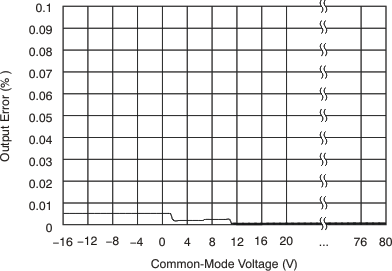

Figure 6-7 Total Output Error vs.
Common-Mode Voltage

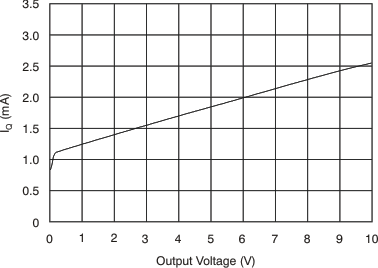

Figure 6-9 Quiescent Current vs.
Output Voltage

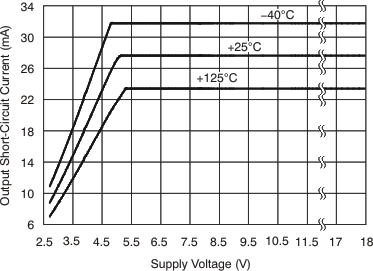

Figure 6-11 Output Short-Circuit
Current vs. Supply Voltage
Figure 6-13 Step Response
Figure 6-15 Step Response
Figure 6-17 Step Response

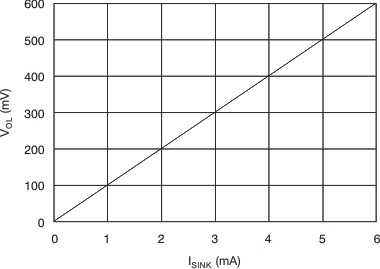

Figure 6-19 Comparator VOL
vs. ISINK
Figure 6-21 Comparator Trip Point vs.
Temperature
Figure 6-23 Comparator Reset Voltage
vs. supply Voltage
Figure 6-25 Comparator Propagation Delay
