4.6.27 RMII Receive Timing

PARAMETER DESCRIPTION NOTES(1)(2)(3) MIN TYP MAX UNIT
T2.27.1 X1 clock period 50-MHz reference clock 20 ns
T2.27.2 RXD[1:0], CRS_DV, RX_DV and RX_ER output delay from X1 rising 2 14 ns
T2.27.3 CRS ON delay From JK symbol on PMD receive pair to initial assertion of CRS_DV 18.5 bits
T2.27.4 CRS OFF delay From TR symbol on PMD receive pair to initial deassertion of CRS_DV 27 bits
T2.27.5 RXD[1:0] and RX_ER latency From symbol on receive pair. Elasticity buffer set to default value (01). 38 bits
(1) Per the RMII Specification, output delays assume a 25-pF load.
(2) CRS_DV is asserted asynchronously in order to minimize latency of control signals through the why. CRS_DV may toggle synchronously at the end of the packet to indicate CRS deassertion.
(3) RX_DV is synchronous to X1. While not part of the RMII specification, this signal is provided to simplify recovery of receive data.

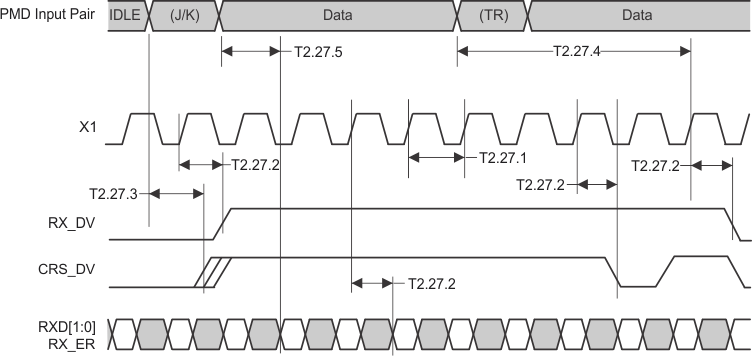

DP83848-EP RMII_receive_timing.gifFigure 4-28 RMII Receive Timing
