4.6.12 10-Mbps MII Receive Timing

PARAMETER DESCRIPTION NOTES(1) MIN TYP MAX UNIT
T2.12.1 RX_CLK high/low time 160 200 240 ns
T2.12.2 RX_CLK to RXD[3:0], RX_DV delay 10-Mbps MII mode 100 ns
T2.12.3 RX_CLK rising edge delay from RXD[3:0], RX_DV valid 10-Mbps MII mode 100 ns
(1) RX_CLK may be held low for a longer period of time during transition between reference and recovered clocks. Minimum high and low times will not be violated.

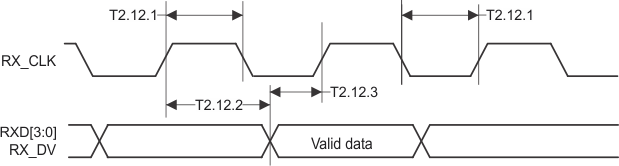

DP83848-EP MII_receive_timing.gifFigure 4-13 10-Mbps MII Receive Timing
