4.6.11 10-Mbps MII Transmit Timing

PARAMETER DESCRIPTION NOTES(1) MIN TYP MAX UNIT
T2.11.1 TX_CLK high/low time 10-Mbps MII mode 190 200 210 ns
T2.11.2 TXD[3:0], TX_EN data setup to TX_CLK fall 10-Mbps MII mode 24.70 ns
T2.11.3 TXD[3:0], TX_EN data hold from TX_CLK rise 10-Mbps MII mode 0 ns
(1) An attached Mac should drive the transmit signals using the positive edge of TX_CLK. As shown above, the MII signals are sampled on the falling edge of TX_CLK.

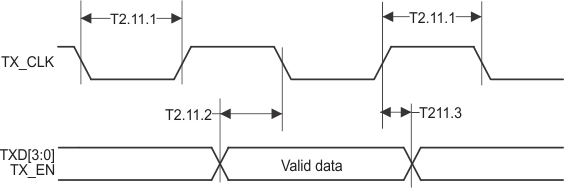

DP83848-EP MII_transmit_timing.gifFigure 4-12 10-Mbps MII Transmit Timing
