5.18 Flash Interface Timing Requirements

The DLPC23xS-Q1 ASIC flash memory interface consists of an SPI serial interface. See Section 7.3.4.
(1)MINMAXUNIT
fclockClock frequency, FLSH_SPI_CLKWhen VCC3IO_FLSH = 3.3VDC9.99850.01(2)MHz
tp_clkperClock period, FLSH_SPI_CLK
(50% reference points)		When VCC3IO_FLSH = 3.3VDC20.0100ns
tp_whPulse duration low, FLSH_SPI_CLK
(50% reference points)		When VCC3IO_FLSH = 3.3VDC9ns
tp_wlPulse duration high, FLSH_SPI_CLK
(50% reference points)		When VCC3IO_FLSH = 3.3VDC9ns
ttTransition time – all input signals20% to 80% reference points6ns
tp_suSetup time – FLSH_SPI_DIO[3:0] valid before FLSH_SPI_CLK falling edge
(50% reference points)		When VCC3IO_FLSH = 3.3VDC7.0ns
tp_hHold time – FLSH_SPI_DIO[3:0] valid after FLSH_SPI_CLK falling edge50% reference points0.0ns
tp_clqvFLSH_SPI_DIO[3:0] output delay valid time

(with respect to falling edge of FLSH_SPI_CLK or falling edge of FLSH_SPI_CSZ)
(50% reference points)

When VCC3IO_FLSH = 3.3VDC–3.03.0ns
(1) The DLPC23xS-Q1 communicates with flash devices using a slight variant of SPI Transfer Mode 0 (that is, clock polarity = 0, clock phase = 0). Instead of capturing MISO data on the clock edge opposite from that used to transmit MOSI data, the DLPC23xS-Q1 captures MISO data on the same clock edge used to transmit the next MOSI data. As such, the DLPC23xS-Q1 Flash SPI interface requires that MISO data from the flash device remain active until the end of the full clock cycle to allow the last data bit to be captured. This is shown in Figure 5-8.
(2) The actual maximum clock rate driven from the DLPC23xS-Q1 can be slightly less than this value.

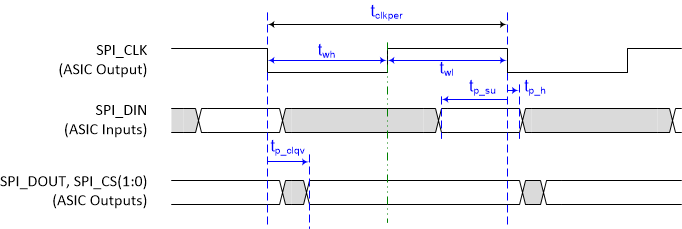

DLPC230S-Q1 DLPC231S-Q1 Flash Interface TimingFigure 5-7 Flash Interface Timing
DLPC230S-Q1 DLPC231S-Q1 Flash Interface Data Capture RequirementsFigure 5-8 Flash Interface Data Capture Requirements
