5.19 TPS99000S-Q1 SPI Interface Timing Requirements

The DLPC23xS-Q1 ASIC to TPS99000S-Q1 interface consists of an SPI serial interface.
(1)MINMAXUNIT
fclockClock frequency, PMIC_SPI_CLK9.99830.006MHz
tp_clkperClock period, PMIC_SPI_CLK
(50% reference points)		33.3100ns
tp_whPulse duration high, PMIC_SPI_CLK
(50% reference points)		11.5ns
tp_wlPulse duration low, PMIC_SPI_CLK
(50% reference points)		11.5ns
ttTransition time – all input signals20% to 80% reference points6ns
tp_suSetup time – PMIC_SPI_DIN valid before PMIC_SPI_CLK falling edge
(50% reference points)		7.0ns
tp_hHold time – PMIC_SPI_DIN valid after PMIC_SPI_CLK falling edge50% reference points0.0ns
tp_clqvPMIC_SPI_DOUT output delay (valid) time

(with respect to falling edge of PMIC_SPI_CLK or falling edge of PMIC_SPI_CSZ0)
(50% reference points)

–3.03.0ns
(1) The DLPC23xS-Q1 communicates with the TPS99000S-Q1 using a slight variant of SPI Transfer Mode 0 (that is, clock polarity = 0, clock phase = 0). Instead of capturing MISO data on the clock edge opposite from that used to transmit MOSI data, the DLPC23xS-Q1 captures MISO data on the same clock edge used to transmit the next MOSI data. As such, the DLPC23xS-Q1 SPI interface to the TPS99000S-Q1 requires that MISO data from the TPS99000S-Q1 remain active until the end of the full clock cycle to allow the last data bit to be captured. This is shown in Figure 5-12.

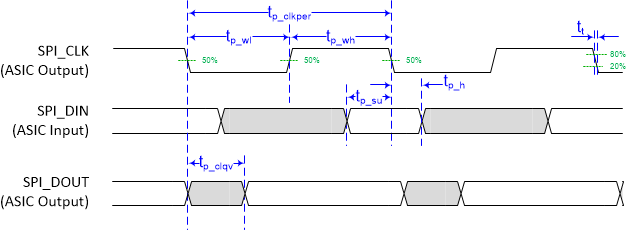

DLPC230S-Q1 DLPC231S-Q1 TPS99000S-Q1 Interface TimingFigure 5-9 TPS99000S-Q1 Interface Timing

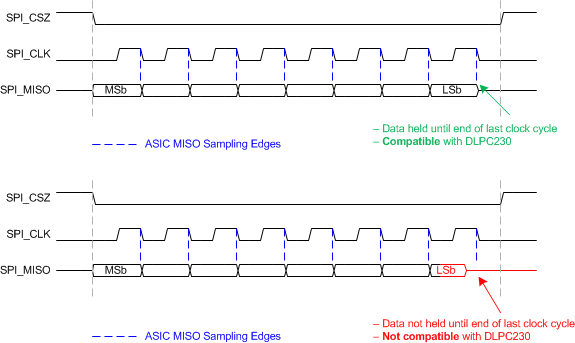

DLPC230S-Q1 DLPC231S-Q1 TPS99000S-Q1 Interface Data Capture RequirementsFigure 5-10 TPS99000S-Q1 Interface Data Capture Requirements
