3 说明

DLPC1438 3D 打印控制器可为适用于 DLP 3D 打印机应用的 DLP300S 和 DLP301S 数字微镜器件 (DMD) 的可靠运行提供支持。DLPC1438 控制器可在用户电子产品和 DMD 之间提供一个便捷的接口，以支持快速、可靠的高分辨率 DLP 3D 打印机。

TI DLP® 光控制技术入门页，了解如何开始使用 DLP300S。

ti.com 上的 DLP 先进光控制资源可加快上市速度，这些资源包括参考设计、光学模块制造商和 DLP 设计网络合作伙伴。

器件信息
器件型号封装封装尺寸（标称值）
DLPC1438(1)NFBGA (201)13.00mm x 13.00mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。

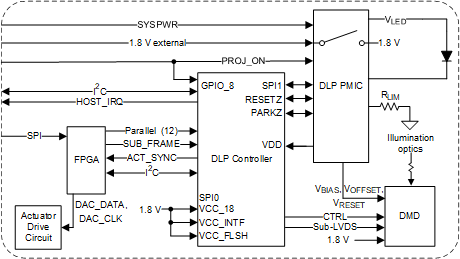

GUID-4C35C294-02DD-4DA2-85CF-A6EE2BCCB9C6-low.gif简化版应用
