6.9 Micromirror Array Physical Characteristics

Table 2. Micromirror Array Physical Characteristics

PARAMETER DESCRIPTION VALUE UNIT
Number of active columns (1) M 1280 micromirrors
Number of active rows (1) N 800
Micromirror (pixel) pitch (1) P 10.8 µm
Micromirror active array width (1) Micromirror pitch × number of active columns 13.824 mm
Micromirror active array height (1) Micromirror pitch × number of active rows 8.640 mm
Micromirror active border size(2) Pond of Micromirror (POM) 10 micromirrors / side
(1) See Figure 9.
(2) The structure and qualities of the border around the active array includes a band of partially functional micromirrors called the Pond Of Mirrors (POM). These micromirrors are structurally and/or electrically prevented from tilting toward the bright or “on” state but the requirement of an electrical bias to tilt toward “off remains.”

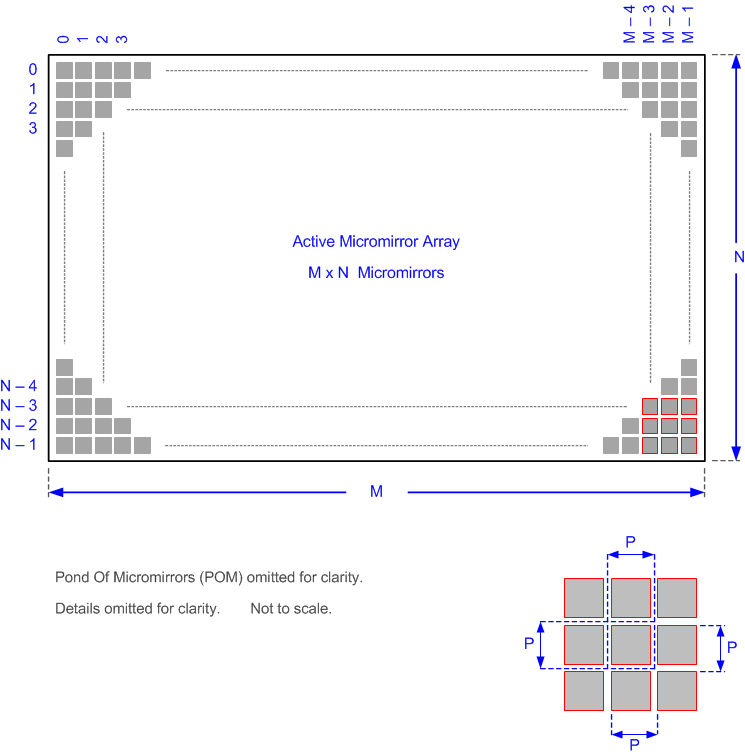

DLP650LNIR dlp650le_MicromirroArrayDimensions_dlps095.gifFigure 9. Micromirror Array Physical Characteristics

Refer to the Micromirror Array Physical Characteristics table for M, N, and P specifications.
