Timing Requirements

Over Recommended Operating Conditions (unless otherwise noted).
PARAMETER DESCRIPTION SIGNAL MIN TYP MAX UNIT
LVDS(1)
tC Clock Cycle Duration for DCLK_A LVDS 2.46 ns
tC Clock Cycle Duration for DCLK_B LVDS 2.46 ns
tW Pulse Duration for DCLK_A LVDS 1.07 1.23 ns
tW Pulse Duration for DCLK_B LVDS 1.07 1.23 ns
tSU Setup Time for D_A(15:0) before DCLK_A LVDS 0.35 ns
tSU Setup Time for D_A(15:0) before DCLK_B LVDS 0.35 ns
tSU Setup Time for SCTRL_A before DCLK_A LVDS 0.35 ns
tSU Setup Time for SCTRL_B before DCLK_B LVDS 0.35 ns
tH Hold time for D_A(15:0) after DCLK_A LVDS 0.50 ns
tH Hold time for D_B(15:0) after DCLK_B LVDS 0.50 ns
tH Hold Time for SCTRL_A after DCLK_A LVDS 0.50 ns
tH Hold Time for SCTRL_B after DCLK_B LVDS 0.50 ns
tSKEW Channel B relative to Channel A(2)(3) LVDS –1.23 1.23 ns
See Figure 7 for timing requirements for LVDS.
Channel A (Bus A) includes the following LVDS pairs: DCLK_AN and DCLK_AP, SCTRL_AN and SCTRL_AP, D_AN(15,13,11,9,7,5,3,1) and D_AP(15,13,11,9,7,5,3,1).
Channel B (Bus B) includes the following LVDS pairs: DCLK_BN and DCLK_BP, SCTRL_BN and SCTRL_BP, D_BN(15,13,11,9,7,5,3,1) and D_BP(15,13,11,9,7,5,3,1).
DLP650LNIR p47_4k_s316_scp_timing_requirements.gifFigure 3. SCP Timing Requirements

See Recommended Operating Conditions for fSCPCLK, tSCP_DS, tSCP_DH, and tSCP_PD specifications.

See Recommended Operating Conditions for tr and tf specifications and conditions.

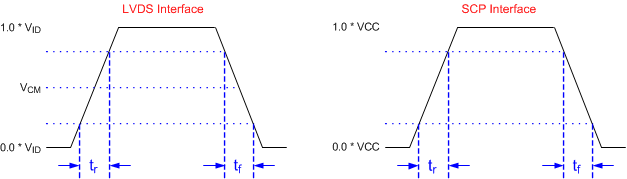

DLP650LNIR Rise_Time_Fall_Time.gif
Not to scale.
Refer to the Timing Requirements.
Refer to for list of LVDS pins and SCP pins.
Figure 4. Rise Time and Fall Time

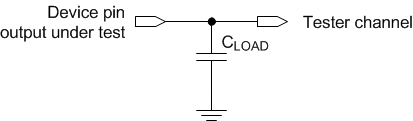

DLP650LNIR test_load_circuit.gifFigure 5. Test Load Circuit for Output Propagation Measurement

For output timing analysis, the tester pin electronics and its transmission line effects must be taken into account. Use IBIS or other simulation tools to correlate the timing reference load to a system environment. See Figure 5.

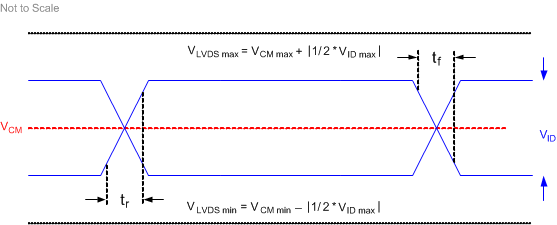

DLP650LNIR lvds_waveform_req.gifFigure 6. LVDS Waveform Requirements

See Recommended Operating Conditions for VCM, VID, and VLVDS specifications and conditions.

DLP650LNIR timing_req.gifFigure 7. Timing Requirements

See Timing Requirements for timing requirements and LVDS pairs per channel (bus) defining D_P(0:x) and D_N(0:x).
