8.3 Power Supply Sequencing Requirements

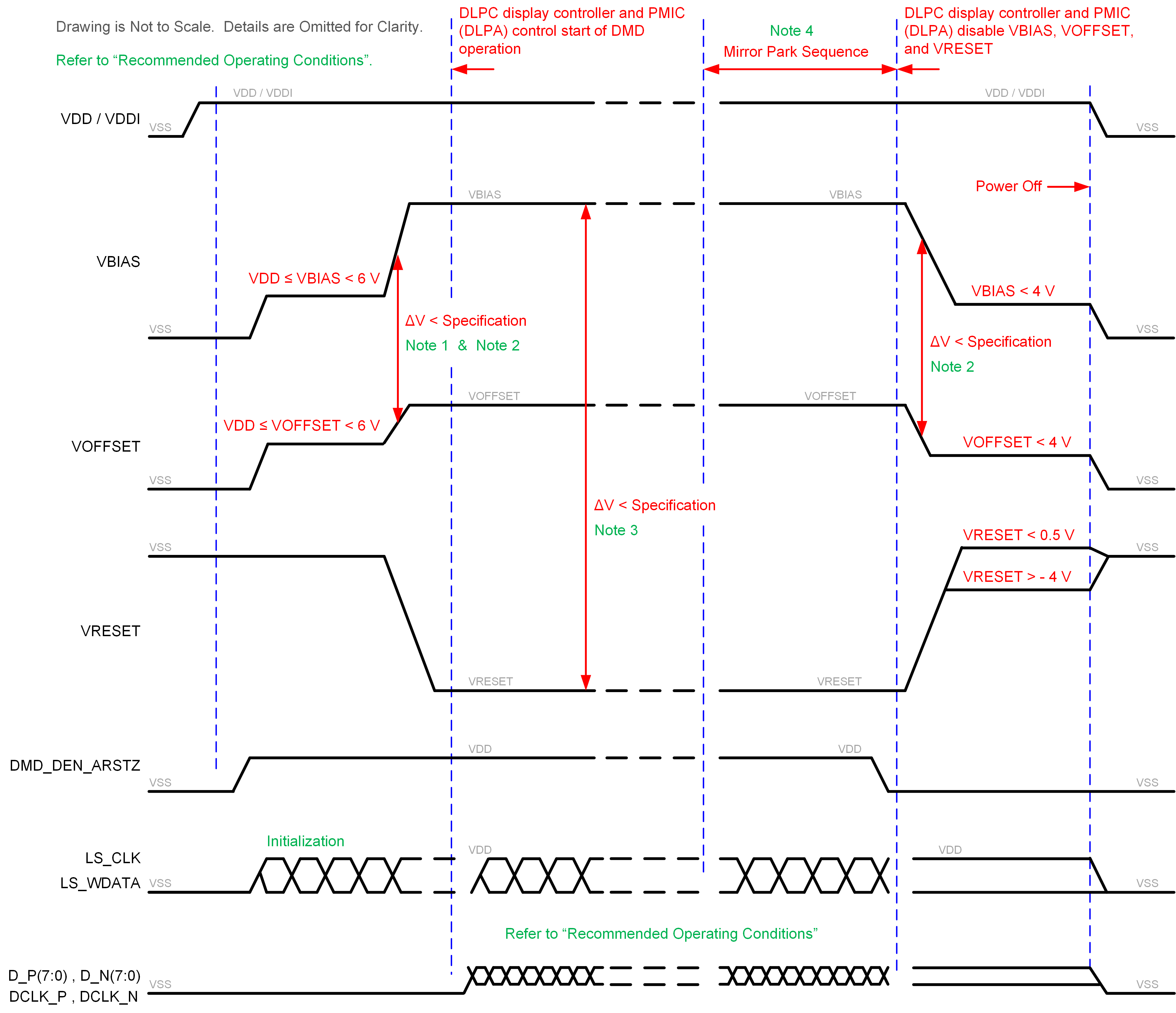

DLP160CP Power Supply Sequencing Requirements (Power Up and Power Down)
A. Refer to the Power-Up Sequence Delay Requirement for critical power-up sequence delay requirements.
B. To prevent excess current, the supply voltage delta |VBIAS – VOFFSET| must be less than specified in Section 5.4. OEMs may find that the most reliable way to ensure this is to power VOFFSET prior to VBIAS during power-up and to remove VBIAS prior to VOFFSET during power-down. Refer to Power-Up Sequence Delay Requirement for power-up delay requirements.
C. To prevent excess current, the supply voltage delta |VBIAS – VRESET| must be less than the specified limit shown in Section 5.4.
D. When system power is interrupted, the DLPA200x/DLPA3000 initiates hardware power-down that disables VBIAS, VRESET, and VOFFSET after the micromirror park sequence.
E. The drawing is not to scale and details are omitted for clarity.
Figure 8-1 Power Supply Sequencing Requirements (Power Up and Power Down)
Table 8-1 Power-Up Sequence Delay Requirement
PARAMETERMINMAXUNIT
tDELAYDelay requirement from VOFFSET power up to VBIAS power up2ms
VOFFSETThe supply voltage level at the beginning of power-up sequence delay6V
VBIASThe supply voltage level at end of power-up sequence delay6V
DLP160CP Power-Up Sequence Delay Requirement
This requirement applies only to the DLPA200x.
Refer to Power-Up Sequence Delay Requirement for VOFFSET and VBIAS supply voltage levels during power-up sequence delay.
Figure 8-2 Power-Up Sequence Delay Requirement
