5.7 Typical Power Block Device Characteristics

TJ = 125°C, unless stated otherwise. The typical power block system characteristic curves and Figure 3 are based on measurements made on a PCB design with dimensions of 4 in (W) × 3.5 in (L) × 0.062 in (H) and 6 copper layers of 1-oz copper thickness. See Application and Implementation section for detailed explanation.
CSD86356Q5D D001_SLPS685.gif
VIN = 12 V VGS = 5 V VOUT = 1.3 V
ƒSW = 500 kHz LOUT = 0.3 µH
Figure 1. Power Loss vs Output Current

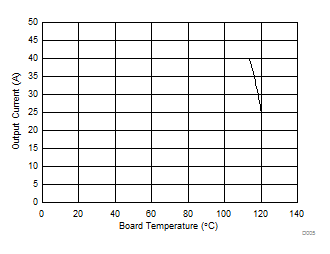

CSD86356Q5D D005_SLPS685.gif
VIN = 12 V VGS = 5 V VOUT = 1.3 V
ƒSW = 500 kHz LOUT = 0.3 µH
Figure 3. Typical Safe Operating Area (SOA)
CSD86356Q5D D002_SLPS685.gif
VIN = 12 V VGS = 5 V VOUT = 1.3 V
ƒSW = 500 kHz LOUT = 0.3 µH IOUT = 40 A
Figure 2. Normalized Power Loss vs Temperature
CSD86356Q5D D006_SLPS685.gif
VIN = 12 V VGS = 5 V VOUT = 1.3 V
LOUT = 0.3 µH IOUT = 40 A
Figure 4. Normalized Power Loss vs Switching Frequency
CSD86356Q5D D008_SLPS685.gif
VIN = 12 V VGS = 5 V ƒSW = 500 kHz
LOUT = 0.3 µH IOUT = 40 A
Figure 6. Normalized Power Loss vs Output Voltage

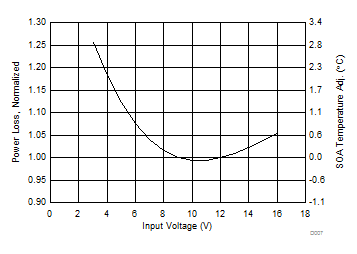

CSD86356Q5D D007_SLPS685.gif
VGS = 5 V VOUT = 1.3 V LOUT = 0.3 µH
ƒSW = 500 kHz IOUT = 40 A
Figure 5. Normalized Power Loss vs Input Voltage
CSD86356Q5D D009_SLPS685.gif
VIN = 12 V VGS = 5 V VOUT = 1.3 V
ƒSW = 500 kHz IOUT = 40 A
Figure 7. Normalized Power Loss vs Output Inductance
