5.3 Typical MOSFET Characteristics

T_A = 25°C (unless otherwise stated)

Figure 5-1 Transient Thermal Impedance

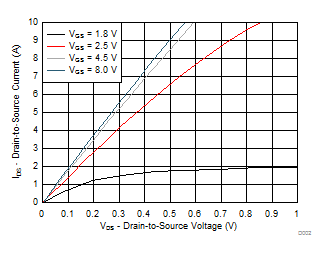

Figure 5-2 Saturation Characteristics

	I_D = 0.5 A	V_DS = 15 V

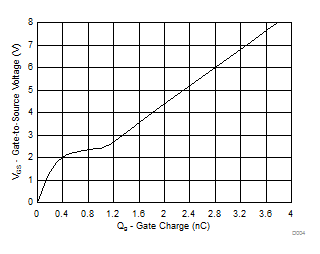

Figure 5-4 Gate Charge

	I_D = 250 µA

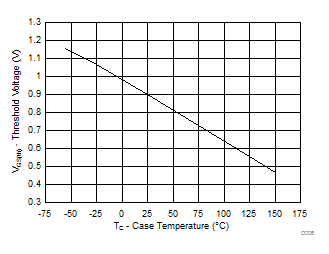

Figure 5-6 Threshold Voltage vs Temperature

	I_D = 0.5 A

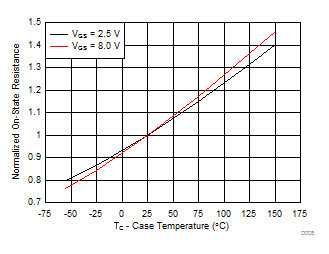

Figure 5-8 Normalized On-State Resistance vs Temperature

	Single Pulse, Typ R_θJA = 245°C/W (min Cu)

Figure 5-10 Maximum Safe Operating Area (SOA)

	Typical R_θJA = 245°C/W (min Cu)

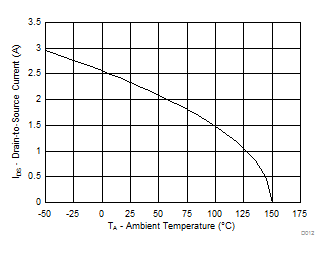

Figure 5-12 Maximum Drain Current vs Temperature

	V_DS = 5 V

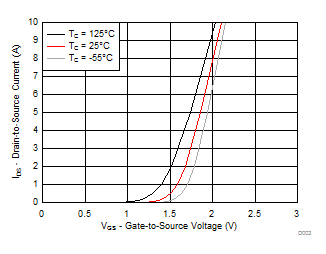

Figure 5-3 Transfer Characteristics

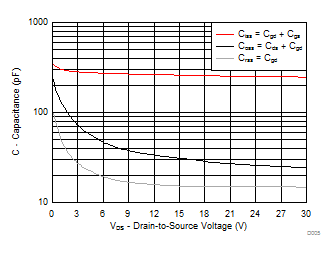

Figure 5-5 Capacitance

Figure 5-7 On-State Resistance vs Gate-to-Source Voltage

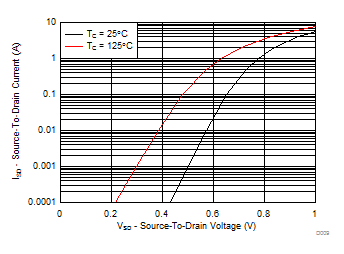

Figure 5-9 Typical Diode Forward Voltage

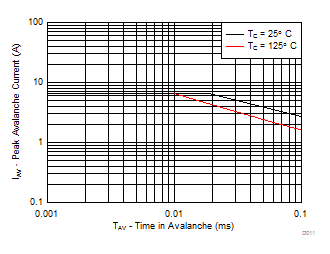

Figure 5-11 Single Pulse Unclamped Inductive Switching
