Typical MOSFET Characteristics

TA = 25°C unless otherwise stated

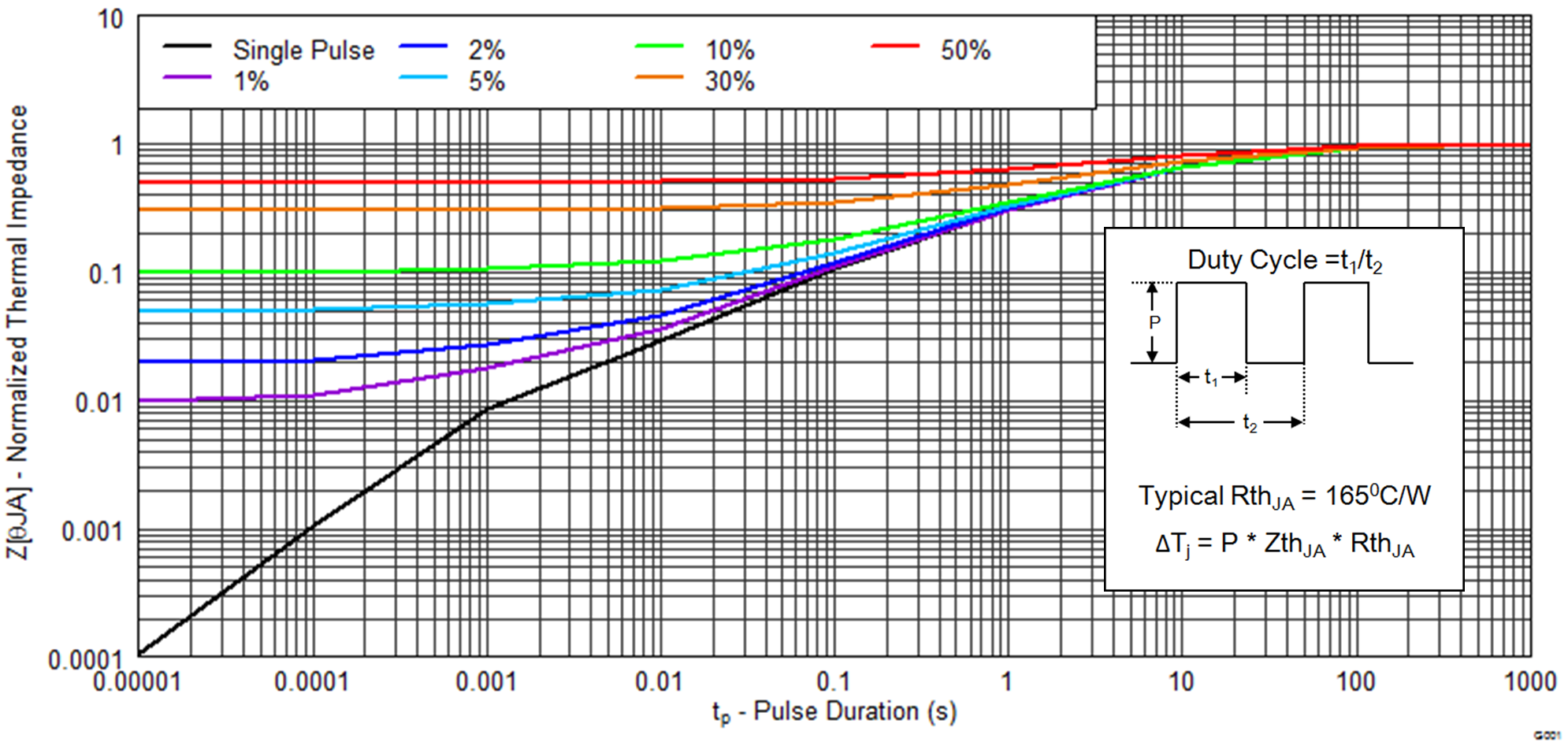

CSD13202Q2 graph01p2_SLPS313.png
Figure 1. Transient Thermal Impedance
CSD13202Q2 graph02_SLPS313.png

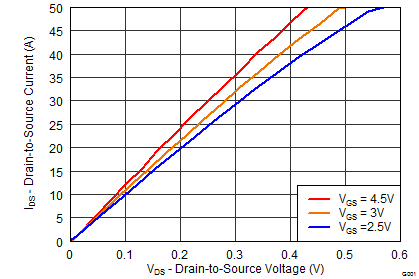

Figure 2. Saturation Characteristics

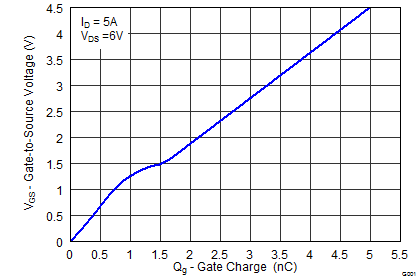

CSD13202Q2 graph04p2_SLPS313.png
Figure 4. Gate Charge

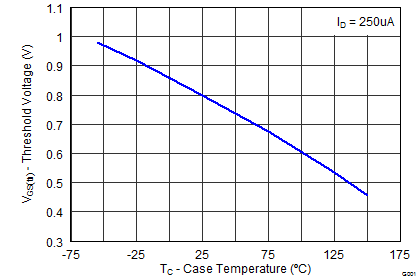

CSD13202Q2 graph06_SLPS313.png
Figure 6. Threshold Voltage vs Temperature
CSD13202Q2 graph08_SLPS313.png

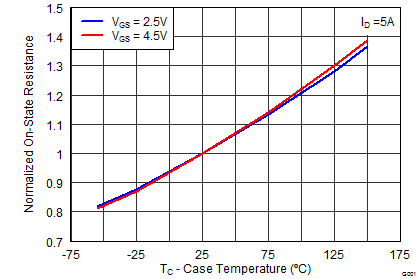

Figure 8. Normalized On-State Resistance vs Temperature
CSD13202Q2 graph10_SLPS313.png

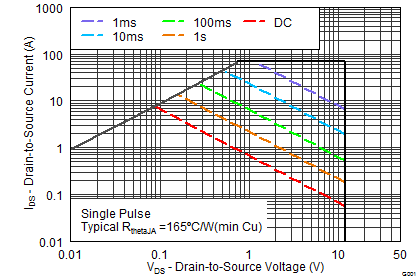

Figure 10. Maximum Safe Operating Area

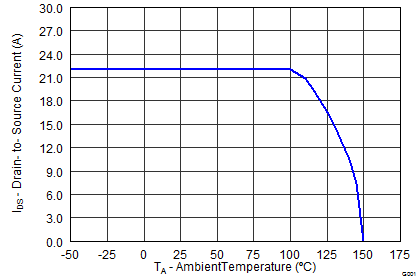

CSD13202Q2 graph12_SLPS313.png
Figure 12. Maximum Drain Current vs Temperature

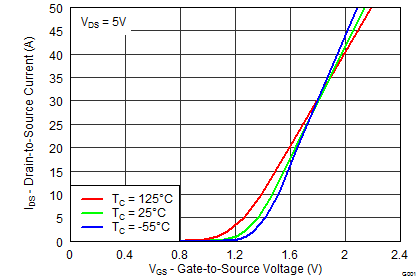

CSD13202Q2 graph03_SLPS313.png
Figure 3. Transfer Characteristics
CSD13202Q2 graph05_SLPS313.png

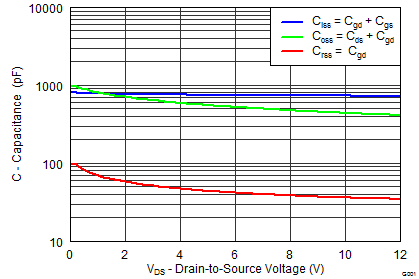

Figure 5. Capacitance

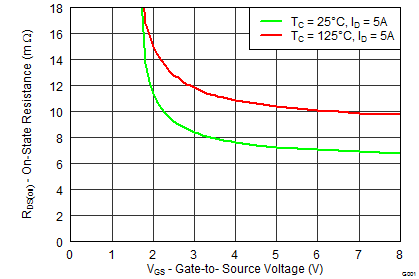

CSD13202Q2 graph07_SLPS313.png
Figure 7. On-State Resistance vs Gate-to-Source Voltage

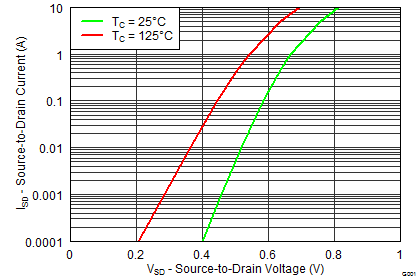

CSD13202Q2 graph09_SLPS313.png
Figure 9. Typical Diode Forward Voltage

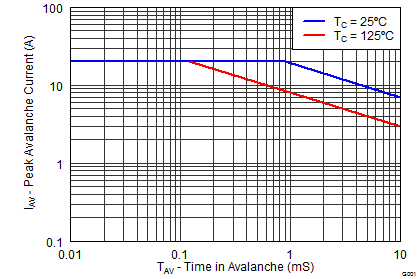

CSD13202Q2 graph11_SLPS313.png
Figure 11. Single Pulse Unclamped Inductive Switching
