7.16.4 RX Performance

CC2652P Sensitivity vs. Frequency (BLE 1Mbps, 2.44GHz)Figure 7-14 Sensitivity vs. Frequency (BLE 1Mbps, 2.44GHz)
CC2652P Sensitivity vs. Temperature (BLE 1Mbps, 2.44GHz)Figure 7-16 Sensitivity vs. Temperature (BLE 1Mbps, 2.44GHz)
CC2652P Sensitivity vs. Supply Voltage (VDDS) (BLE 1Mbps, 2.44GHz)Figure 7-18 Sensitivity vs. Supply Voltage (VDDS) (BLE 1Mbps, 2.44GHz)

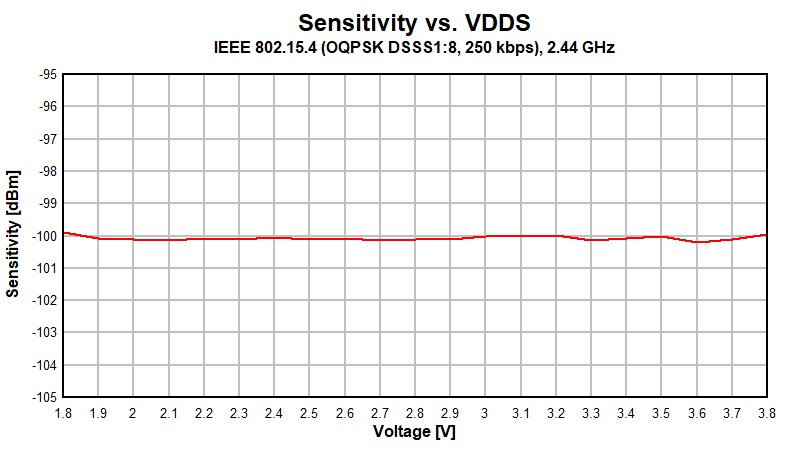

CC2652P Sensitivity vs. Supply Voltage (VDDS) (IEEE 802.15.4-2006, 250 kbps, OQPSK DSSS 1:8, 2.44GHz)Figure 7-20 Sensitivity vs. Supply Voltage (VDDS) (IEEE 802.15.4-2006, 250 kbps, OQPSK DSSS 1:8, 2.44GHz)

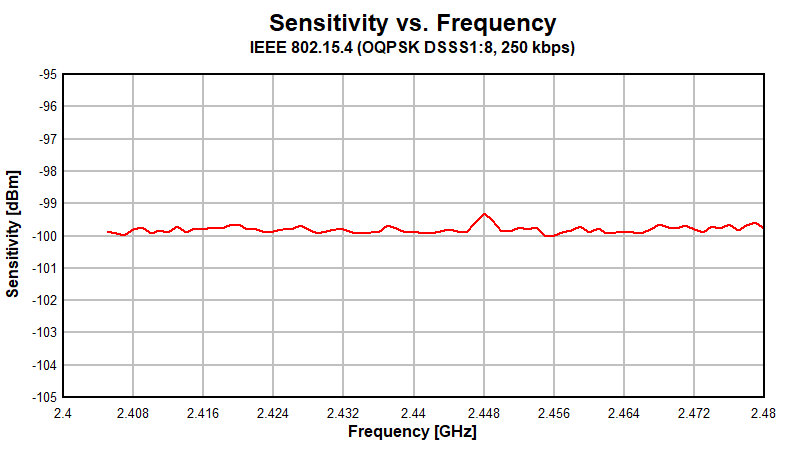

CC2652P Sensitivity vs. Frequency (IEEE 802.15.4-2006, 250 kbps, OQPSK DSSS 1:8, 2.44GHz)Figure 7-15 Sensitivity vs. Frequency (IEEE 802.15.4-2006, 250 kbps, OQPSK DSSS 1:8, 2.44GHz)

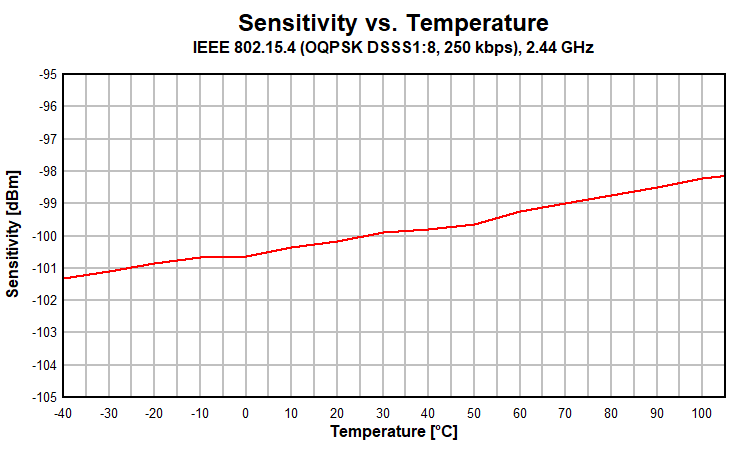

CC2652P Sensitivity vs. Temperature (IEEE 802.15.4-2006, 250 kbps, OQPSK DSSS 1:8, 2.44GHz)Figure 7-17 Sensitivity vs. Temperature (IEEE 802.15.4-2006, 250 kbps, OQPSK DSSS 1:8, 2.44GHz)
CC2652P Sensitivity vs. Supply Voltage (VDDS) (BLE 1Mbps, 2.44GHz, DCDC Off)Figure 7-19 Sensitivity vs. Supply Voltage (VDDS) (BLE 1Mbps, 2.44GHz, DCDC Off)
