4 Terminal Configuration and Functions

4.1 VQFN-MR Pin Diagram

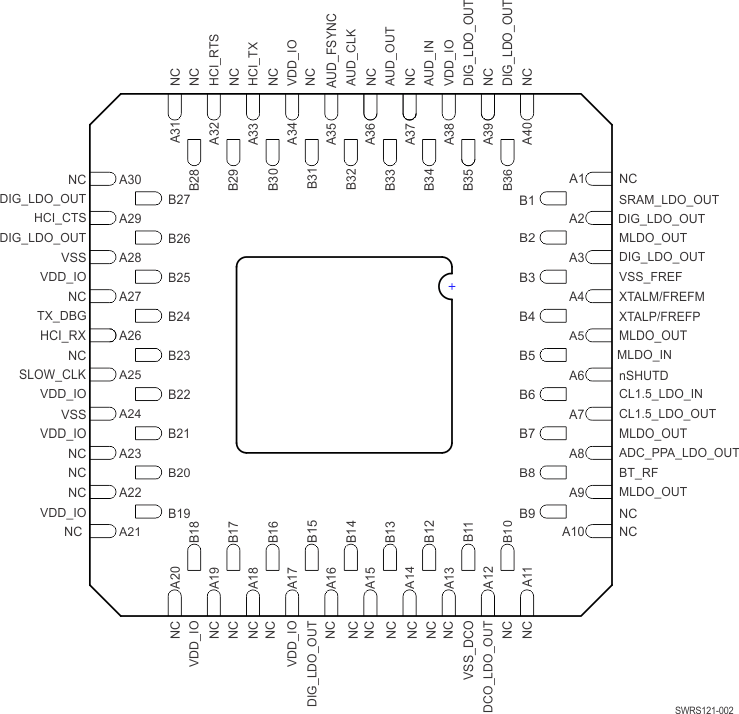

Figure 4-1 shows the bottom view of the pin diagram (VQFN-MR package).

CC2564C SWRS121-002.gif Figure 4-1 VQFN-MR Package Pin Diagram
Bottom View

4.1.1 Pin Attributes (VQFN-MR Package)

Table 4-1 describes the pin attributes for the VQFN-MR package.

SPACER

Table 4-1 Pin Attributes (VQFN-MR Package)

NAME NO. PULL AT RESET DEF. DIR.(1) I/O
Type(2)		 DESCRIPTION
I/O Signals
AUD_CLK B32 PD I/O HY, 4 mA PCM clock Fail-safe
AUD_FSYNC A35 PD I/O 4 mA PCM frame-sync signal Fail-safe
AUD_IN B34 PD I 4 mA PCM data input Fail-safe
AUD_OUT B33 PD O 4 mA PCM data output Fail-safe
HCI_CTS A29 PU I 8 mA HCI UART clear-to-send
The device is allowed to send data when HCI_CTS is low.
HCI_RX A26 PU I 8 mA HCI universal asynchronous receiver/transmitter (UART) data receive
HCI_RTS A32 PU O 8 mA HCI UART request-to-send
The host is allowed to send data when HCI_RTS is low.
HCI_TX A33 PU O 8 mA HCI UART data transmit
TX_DBG B24 PU O 2 mA TI internal debug messages. TI recommends leaving an internal test point.
Clock Signals
SLOW_CLK A25 I 32.768-kHz clock in Fail-safe
XTALP/FREFP B4 I Fast clock in analog (sine wave)
Output terminal of fast-clock crystal		 Fail-safe
XTALM/FREFM A4 I Fast clock in digital (square wave)
Input terminal of fast-clock crystal		 Fail-safe
Analog Signals
BT_RF B8 I/O Bluetooth RF I/O
nSHUTD A6 PD I Shutdown input (active low)
Power and Ground Signals
ADC_PPA_LDO_OUT A8 O ADC/PPA LDO output
CL1.5_LDO_IN B6 I Power amplifier (PA) LDO input
Connect directly to battery
CL1.5_LDO_OUT A7 O PA LDO output
DCO_LDO_OUT A12 O DCO LDO output
DIG_LDO_OUT A2, A3, B15, B26, B27, B35, B36 O Digital LDO output
QFN pin B26 or B27 must be shorted to other DIG_LDO_OUT pins on the PCB.
MLDO_IN B5 I Main LDO input
Connect directly to battery
MLDO_OUT A5, A9, B2, B7 I/O Main LDO output (1.8-V nominal)
SRAM_LDO_OUT B1 O SRAM LDO output
VDD_IO A17, A34, A38, B18, B19, B21, B22, B25 I I/O power supply (1.8-V nominal)
VSS A24, A28 I Ground
VSS_DCO B11 I DCO ground
VSS_FREF B3 I Fast clock ground
(1) I = input; O = output; I/O = bidirectional
(2) I/O Type: Digital I/O cells. HY = input hysteresis, current = typical output current

4.1.2 Connections for Unused Signals (VQFN-MR Package)

Section 4.1.2 lists the connections for unused signals for the VQFN-MR package.

SPACER

FUNCTION PIN NUMBER DESCRIPTION
NC A1 Not connected
NC A10 Not connected
NC A11 Not connected
NC A14 Not connected
NC A18 Not connected
NC A19 Not connected
NC A20 Not connected
NC A21 Not connected
NC A22 Not connected
NC A23 Not connected
NC A27 Not connected
NC A30 Not connected
NC A31 Not connected
NC A40 Not connected
NC B9 Not connected
NC B10 Not connected
NC B16 Not connected
NC B17 Not connected
NC B20 Not connected
NC B23 Not connected
NC A13 TI internal use
NC A15 TI internal use
NC A16 TI internal use
NC A36 TI internal use
NC A37 TI internal use
NC A39 TI internal use
NC B12 TI internal use
NC B13 TI internal use
NC B14 TI internal use
NC B29 TI internal use
NC B30 TI internal use
NC B31 TI internal use
NC B28 TI internal use
