RX Performance

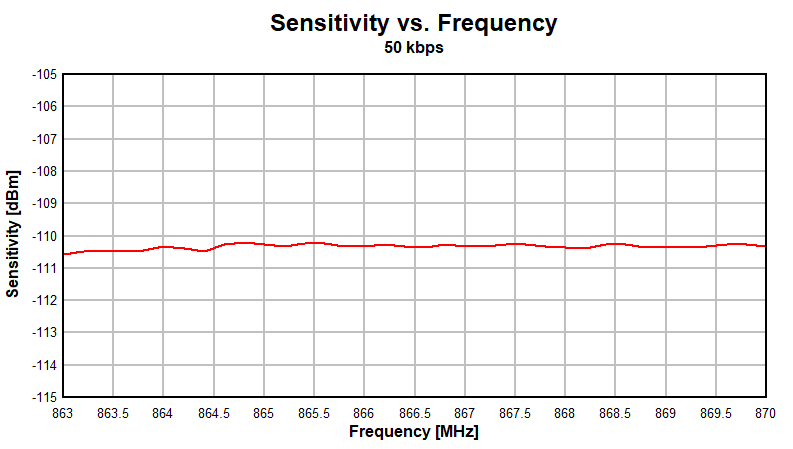

GUID-E6B58D21-510E-4E1A-A789-1EA8F38A3F49-low.gifFigure 7-10 Sensitivity vs. Frequency (50 kbps, 868 MHz)

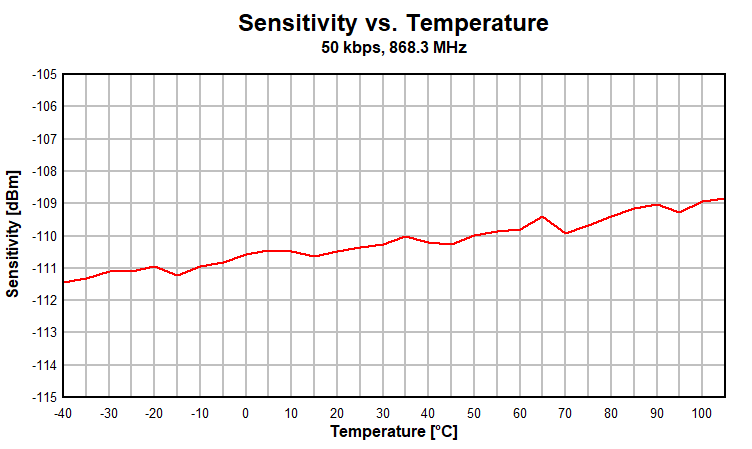

GUID-E4FE9495-E6E1-4BEB-905E-DDFA74571617-low.gifFigure 7-12 Sensitivity vs. Temperature (50 kbps, 868.3 MHz)

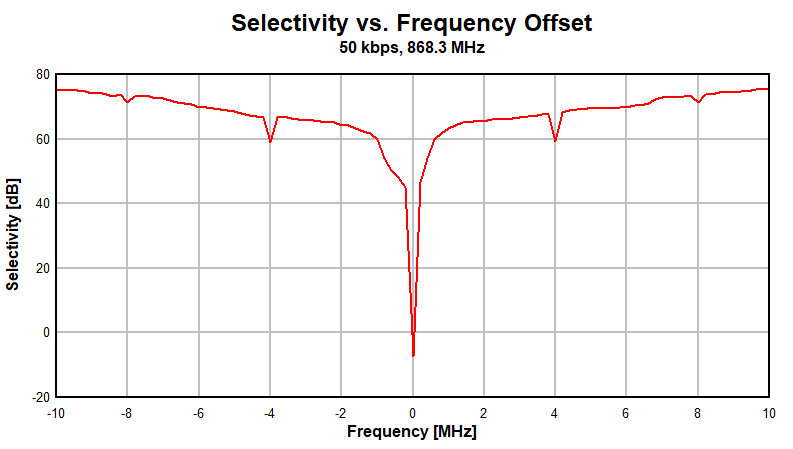

GUID-C8D6B239-47ED-4641-9313-30E7F4054C2B-low.gifFigure 7-14 Selectivity vs. Frequency Offset (50 kbps, 868.3 MHz)
GUID-AE887F7C-25D5-46BB-97EE-D13C0AD0B5D4-low.pngFigure 7-16 PER vs. Level vs. Frequency (SimpleLink™ Long Range 5 kbps, 868 MHz)

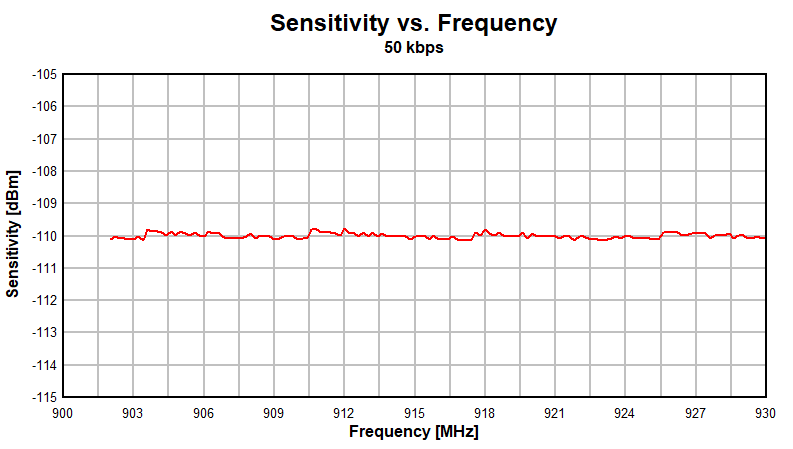

GUID-34025D90-3850-4A24-B026-E3630ECB081B-low.gifFigure 7-11 Sensitivity vs. Frequency (50 kbps, 915 MHz)
GUID-B921ECCD-934D-4265-8D59-59B6A44CA4C6-low.gifFigure 7-13 Sensitivity vs. Supply Voltage (VDDS) (50 kbps, 868.3 MHz)

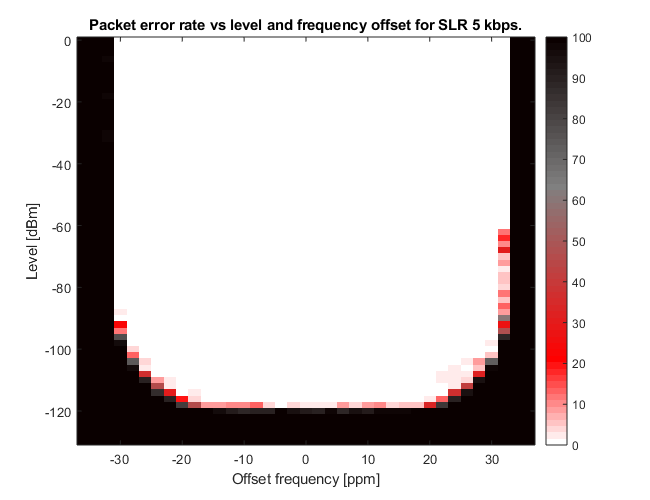

GUID-9D4DA7E3-19F6-4148-9E8D-70D88ED1B29A-low.pngFigure 7-15 PER vs. Level vs. Frequency (SimpleLink™ Long Range 5 kbps, 868 MHz)
GUID-20200923-CA0I-XWJG-PRB8-W2B89GL4LZSV-low.pngFigure 7-17 Narrowband, 9.6 kbps ±2.4 kHz deviation, 2-GFSK, 868 MHz, 17.1 kHz RX Bandwidth
