7.16.3 TX Current

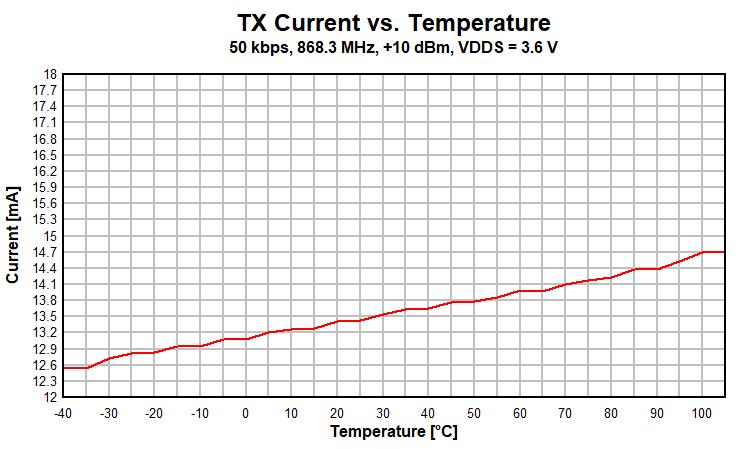

GUID-7D5E9616-1E33-4CE2-8459-2FD2399E2C7B-low.gifFigure 7-8 TX Current vs. Temperature (50 kbps, 868.3 MHz, VDDS = 3.6 V)

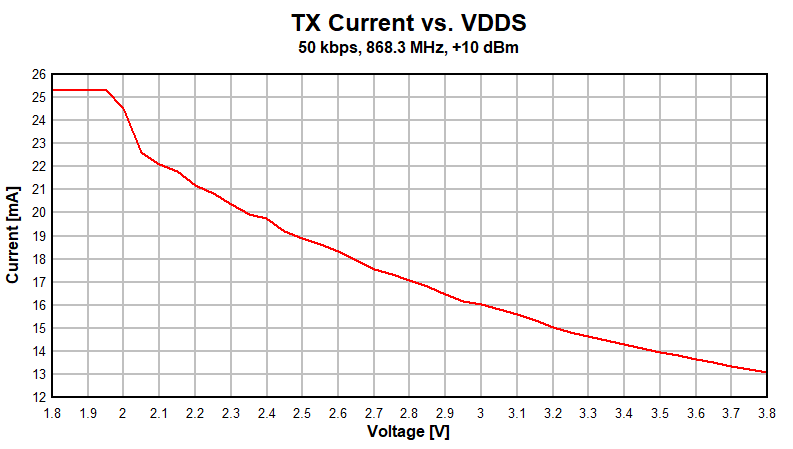

GUID-78C93650-C00F-4EC6-9AEB-361DA1A61B8A-low.gifFigure 7-9 TX Current vs. Supply Voltage (VDDS) (50 kbps, 868.3 MHz)
Table 7-1 Typical TX Current and Output Power
CC1312R7 at 868 MHz, VDDS = 3.6 V (1) (Measured on CC1312-7REM-XD7793)
txPower TX Power Setting (SmartRF Studio) Typical Output Power [dBm] Typical Current Consumption [mA]
0x013F (2) 14 14.6 25
0xB224 12.5 13.0 18
0x895E 12 12.6 17
0x669A 11 11.6 16
0x3E92 10 10.7 15
0x3EDC 9 9.7 14
0x2CD8 8 9.1 13
0x26D4 7 8.2 12
0x20D1 6 7.2 11
0x1CCE 5 5.9 10
0x16CD 4 5.4 10
0x14CB 3 4.1 9
0x12CA 2 3.3 9
0x12C9 1 2.5 8
0x10C8 0 1.5 8
0x0AC4 -5 -4.6 6
0x0AC2 -10 -10.3 5
0x06C1 -15 -14.8 5
0x04C0 -20 -19.8 4
(1) Internal regulated voltage powers the PA, therefore the output power is not affected by variation in VDDS voltage.
(2) Boost mode enabled. VDDR regulated to 1.95 V.
