6.22 Typical Characteristics

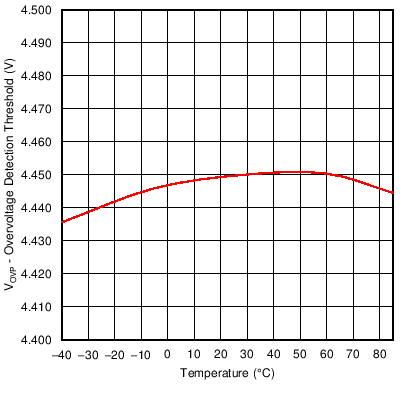

bq27742-G1 OVP_Threshold_Plot.png
Figure 3. Overvoltage Detection Threshold vs Temperature

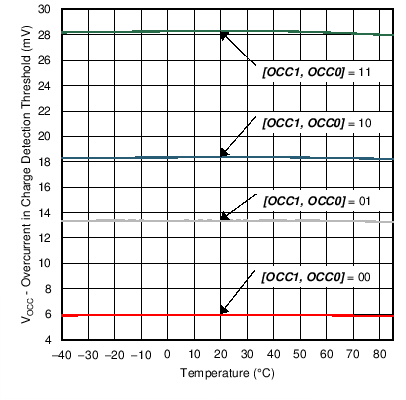

bq27742-G1 OCC_Threshold_Plot.png
OCC thresholds shown assume an overvoltage setting of 4.450 V
Figure 5. Overcurrent in Charge Detection Threshold vs Temperature

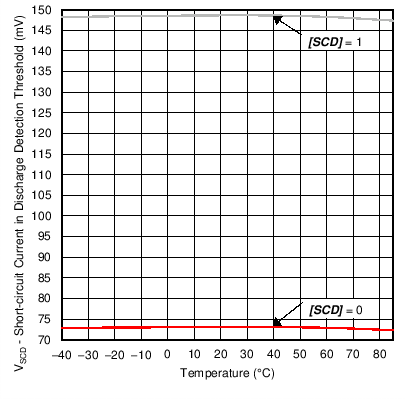

bq27742-G1 SCD_Threshold_Plot.png
SCD thresholds shown assume an overvoltage setting of 4.450 V
Figure 7. Short-Circuit in Discharge Detection Threshold vs Temperature

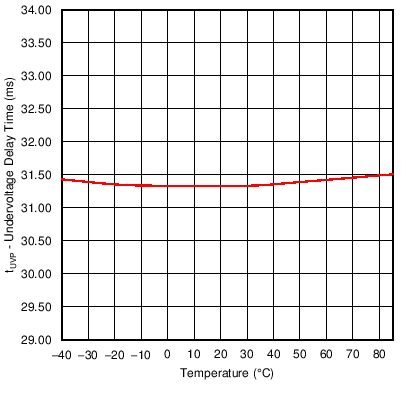

bq27742-G1 UVP_Delay_Plot.pngFigure 9. Undervoltage Delay Time

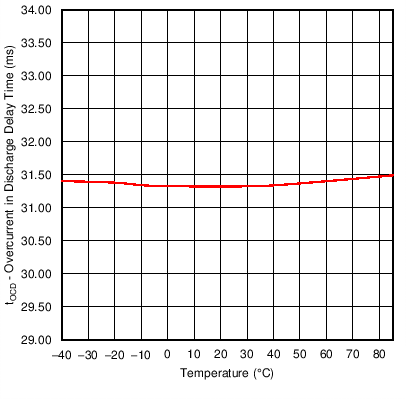

bq27742-G1 OCD_Delay_Plot.pngFigure 11. Overcurrent in Discharge Delay vs Temperature

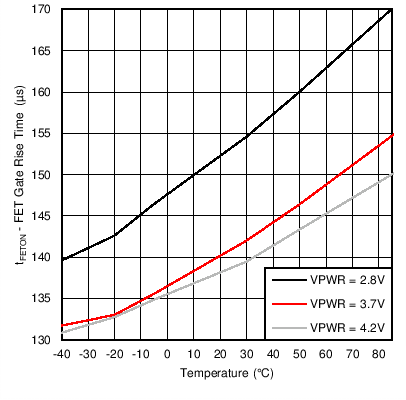

bq27742-G1 FETON_Rise_Time_Plot.png
Performance with CL = 4 nF
Figure 13. FET Gate Rise Time vs Temperature

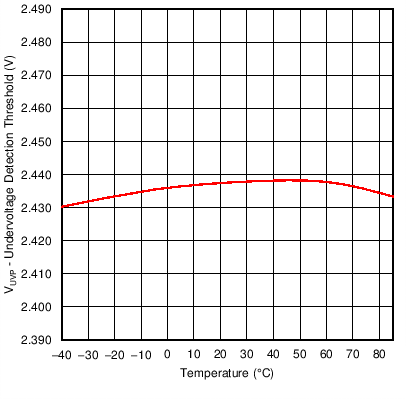

bq27742-G1 UVP_Threshold_Plot.png
UVP threshold shown assumes an overvoltage setting of 4.450 V
Figure 4. Undervoltage Detection Threshold vs Temperature
bq27742-G1 OCD_Threshold_Plot.png
OCD thresholds shown assume an overvoltage setting of 4.450 V
Figure 6. Overcurrent in Discharge Detection Threshold vs Temperature

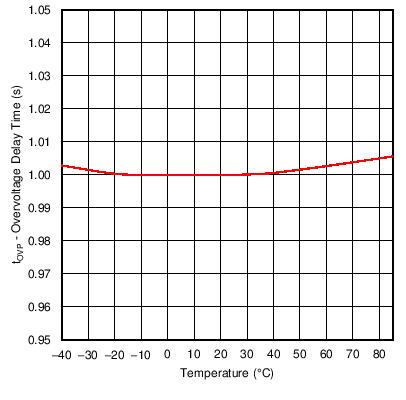

bq27742-G1 OVP_Delay_Plot.png
Figure 8. Overvoltage Delay Time

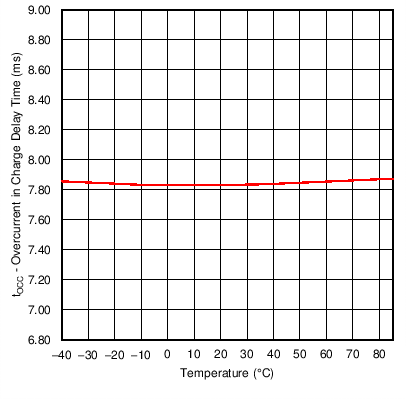

bq27742-G1 OCC_Delay_Plot.pngFigure 10. Overcurrent in Charge Delay Time vs Temperature

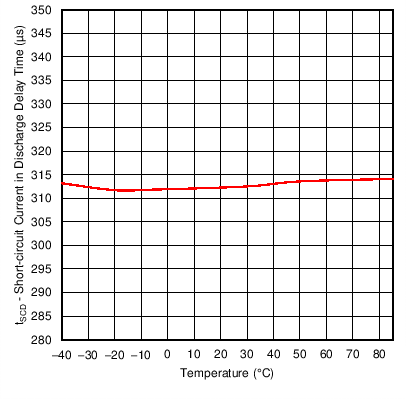

bq27742-G1 SCD_Delay_Plot.pngFigure 12. Short-Circuit in Discharge Delay vs Temperature
bq27742-G1 FETOFF_Fall_Time_Plot.png
Performance with CL = 4 nF
Figure 14. FET Gate Fall Time vs Temperature
