Parameter Measurement Information

GUID-84F6E891-C370-4D3C-9378-72F5E49D452A-low.gifFigure 6-1 Differential and Common-Mode Output Voltages
C1, C2, and C3 include probe and jig capacitance.
All input pulses are supplied by generators having the following characteristics: PRR ≤ 1MHz, duty cycle ≤ 50%, and tr, tf ≤ 6ns.

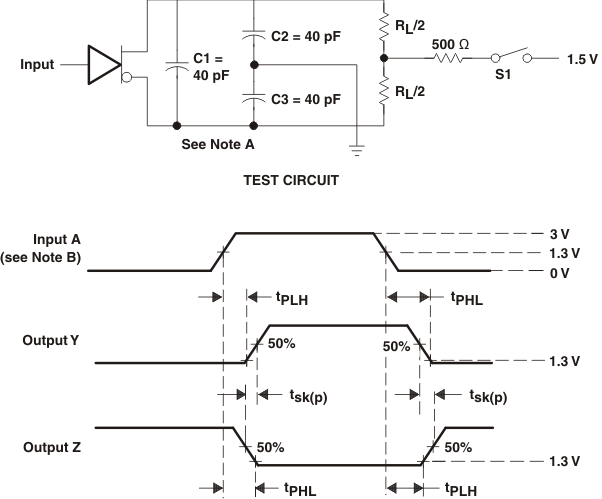

Figure 6-2 Propagation Delay Time and Skew Waveforms and Test Circuit
C1, C2, and C3 include probe and jig capacitance.
All input pulses are supplied by generators having the following characteristics: PRR ≤ 1MHz, duty cycle ≤ 50%, and tr, tf ≤ 6ns.
Figure 6-3 Differential-Output Rise and Fall-Time Waveforms and Test Circuit
C1, C2, and C3 include probe and jig capacitance.
All input pulses are supplied by generators having the following characteristics: PRR ≤ 1MHz, duty cycle ≤ 50%, and tr, tf ≤ 6ns.
Each enable is tested separately.
Figure 6-4 Output Enable and Disable Time Waveforms and Test Circuit
