RX Typical Characteristics 2.6GHz

Typical values at TA = +25°C, ADC Sampling Rate = 2949.12 GHz. Default conditions: output sample rate = 491.52MSPS (decimate by 6), PLL clock mode with fREF = 491.52MHz, AIN = –3 dBFS, DSA setting = 4 dB.

With matching, normalized to power at 2.6 GHz for each DSA setting

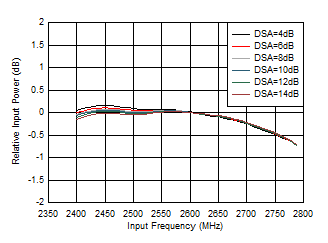

Figure 6-111 RX Inband Gain Flatness, fIN = 2600 MHz
With 2.6 GHz matching
Integrated Phase Error = Phase(DSA Setting) – Phase(DSA Setting = 0)

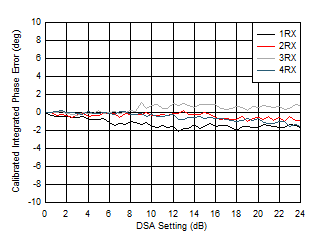

Figure 6-113 RX Calibrated Integrated Phase Error vs DSA Setting at 2.6 GHz
With 2.6 GHz matching, 12.5-MHz offset from tone

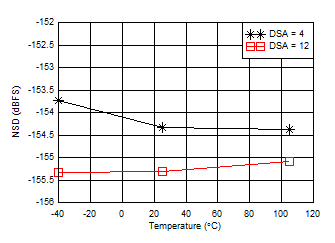

Figure 6-115 RX Noise Spectral Density vs Temperature at 2.6 GHz
With 2.6 GHz matching, 12.5-MHz offset from tone
Figure 6-117 RX Noise Spectral Density vs Input Amplitude and Channel at 2.6 GHz
With 2.6 GHz matching, each tone –7 dBFS, tone spacing = 20 MHz

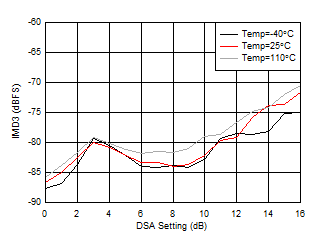

Figure 6-119 RX IMD3 vs DSA Setting and Temperature at 2.6 GHz
With 2.6 GHz matching, tone spacing = 20 MHz, DSA = 12 dB
Figure 6-121 RX IMD3 vs Input Level and Temperature at 2.6 GHz
External clock mode
Figure 6-123 RX IMD3 vs Tone Spacing at 2.6 GHz (Ext. Clock)
With 2.6 GHz matching, DDC bypass mode (TI only mode for characterization)

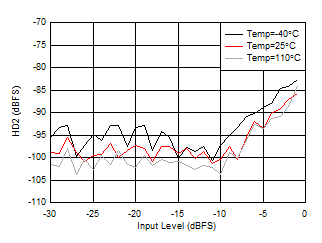

Figure 6-125 RX HD2 vs Input Level and Temperature at 2.6 GHz
With 2.6 GHz matching, DDC bypass mode (TI only mode for characterization)

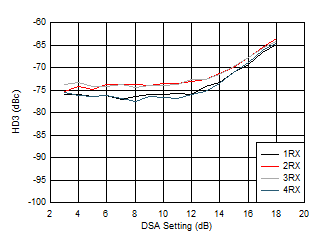

Figure 6-127 RX HD3 vs DSA Setting and Channel at 2.6 GHz
With 2.6 GHz matching, DDC bypass mode (TI only mode for characterization)

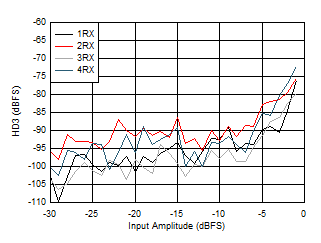

Figure 6-129 RX HD3 vs Input Level and Channel at 2.6 GHz
GUID-20210723-CA0I-WXSC-TGZ7-W4L2DFQSNJZL-low.svg
External clock mode
Figure 6-131 RX HD3 vs Input Level and Temperature at 2.6 GHz
With 2.6 GHz matching

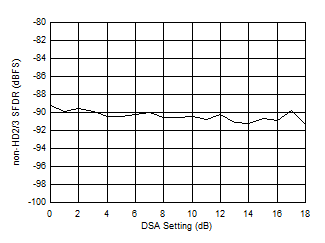

Figure 6-133 RX Non-HD2/3 vs DSA Setting at 2.6 GHz
GUID-20220627-SS0I-ZKHS-HCGL-ZLTB7MTH9NTB-low.svg
With 2.6 GHz matching, –7 dBFS each tone, 20-MHz tone spacing, all supplies at MIN, TYP, or MAX recommended operating voltages
Figure 6-135 RX IMD3 vs Supply and Channel at 2.6 GHz
With 2.6 GHz matching, normalized to fullscale at 25°C for each channel

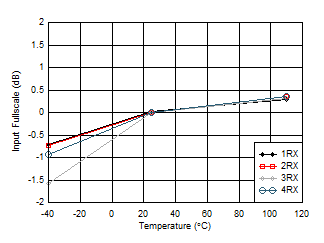

Figure 6-112 RX Input Fullscale vs Temperature and Channel at 2.6 GHz
With 2.6 GHz matching, fIN = 2610 MHz, AIN= –3 dBFS
Figure 6-114 RX Output FFT at 2.6 GHz
With 2.6 GHz matching, DSA Setting = 12 dB, 12.5-MHz offset from tone
Figure 6-116 RX Noise Spectral Density vs Input Amplitude and Temperature at 2.6 GHz
GUID-20210713-CA0I-VNVQ-BVPZ-1DJPWGTLJGFZ-low.svg
50-MHz offset from tone, external clock mode
Figure 6-118 RX Noise Spectral Density vs Input Amplitude at 2.61 GHz (Ext. Clock)
With 2.6 GHz matching, tone spacing = 20 MHz, DSA = 4 dB
Figure 6-120 RX IMD3 vs Input Level and Temperature at 2.6 GHz
Tone spacing = 50 MHz, External clock mode
Figure 6-122 RX IMD3 vs Input Level at 2.6 GHz (Ext. Clock)
With 2.6 GHz matching, DDC bypass mode (TI only mode for characterization)
Figure 6-124 RX HD2 vs DSA Setting and Channel at 2.6 GHz
GUID-20210723-CA0I-PXST-W2HM-NDTKXNGNCKJZ-low.svg
External clock mode
Figure 6-126 RX HD2 vs Input Level and Temperature at 2.6 GHz
With 2.6 GHz matching, DDC bypass mode (TI only mode for characterization)

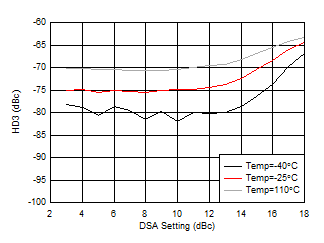

Figure 6-128 RX HD3 vs DSA Setting and Temperature at 2.6 GHz
With 2.6 GHz matching, DDC bypass mode (TI only mode for characterization)
Figure 6-130 RX HD3 vs Input Level and Temperature at 2.6 GHz
With 2.6 GHz matching, decimate by 4
Figure 6-132 RX In-Band SFDR (±300 MHz) vs Input Amplitude and Temperature at 2.6 GHz
External clock mode, 50MHz tone spacing, excluding 3rd order distortion
Figure 6-134 RX 2-tone SFDR vs Input Amplitude at 2.6 GHz
GUID-20220627-SS0I-4ZNF-WVFB-CNF1P2WB3H6F-low.svg
With 2.6 GHz matching, 12.5-MHz offset, all supplies at MIN, TYP, or MAX recommended operating voltages
Figure 6-136 RX Noise Spectral Density vs Supply and Channel at 2.6 GHz
