8.1.2.1 No Self-Test Fail Event

If there is no self-test failure event, the ALARM is turned on without blinking when the SW_OPEN signal goes from high to low. Figure 13 describes the sequence of events.

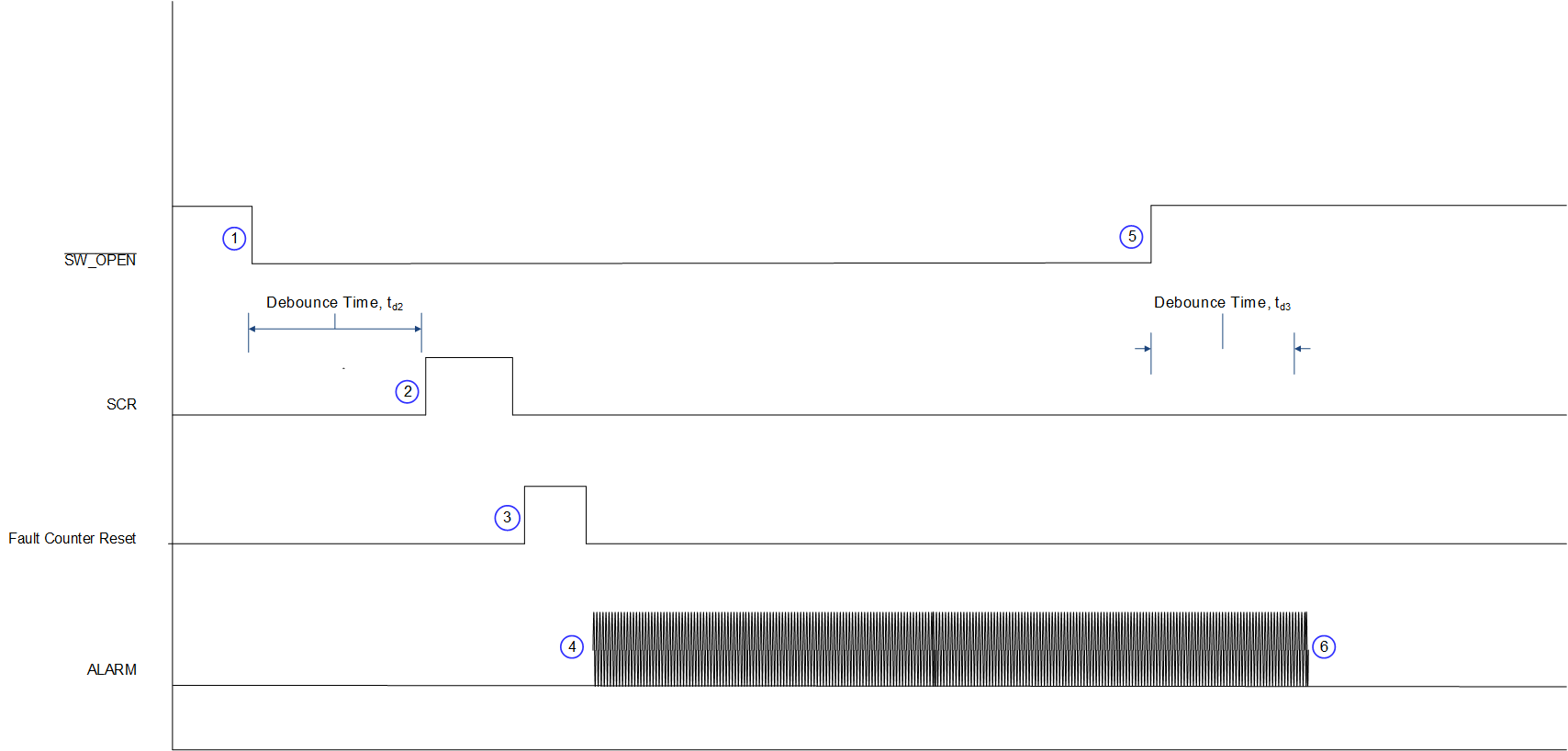

AFE3010 AFE3010_sw_open_normal.gifFigure 13. ALARM With SW_OPEN Transition to Low. No Self-Test Failure.
  1. The SW_OPEN signal transitions from high to low.
  2. After a debounce time to ensure there is no false transition, the device fires the SCR.
  3. The internal fault counter resets.
  4. The ALARM turns on.
  5. The SW_OPEN signal transitions low to high.
  6. After a debounce time to ensure there is no false transition, the ALARM turns off.
