8.2.3 Application Curves

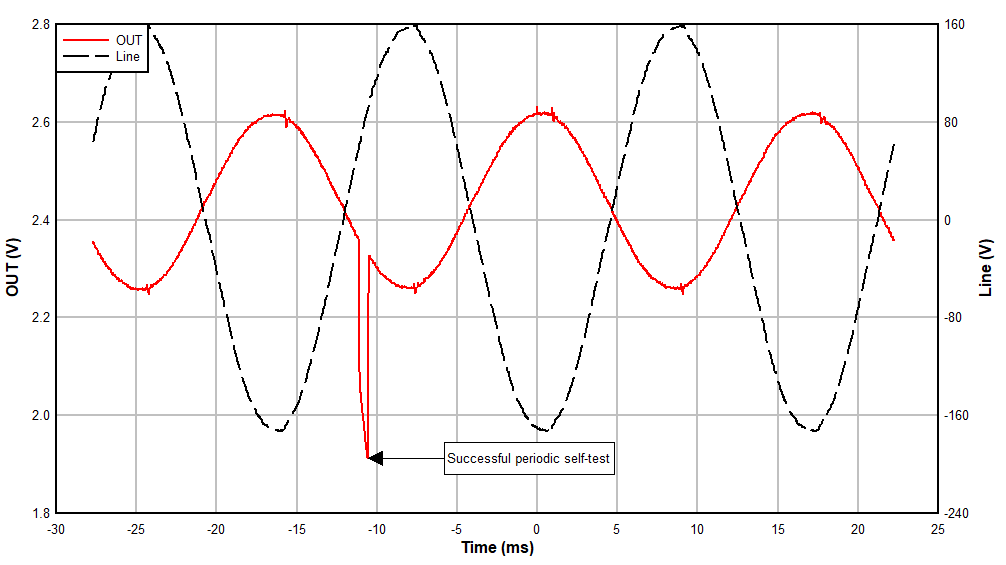

AFE3010 D100_SBFS042.gifFigure 17. Amplifier Output During a 3.7-mA Ground Fault With Normal Line Polarity

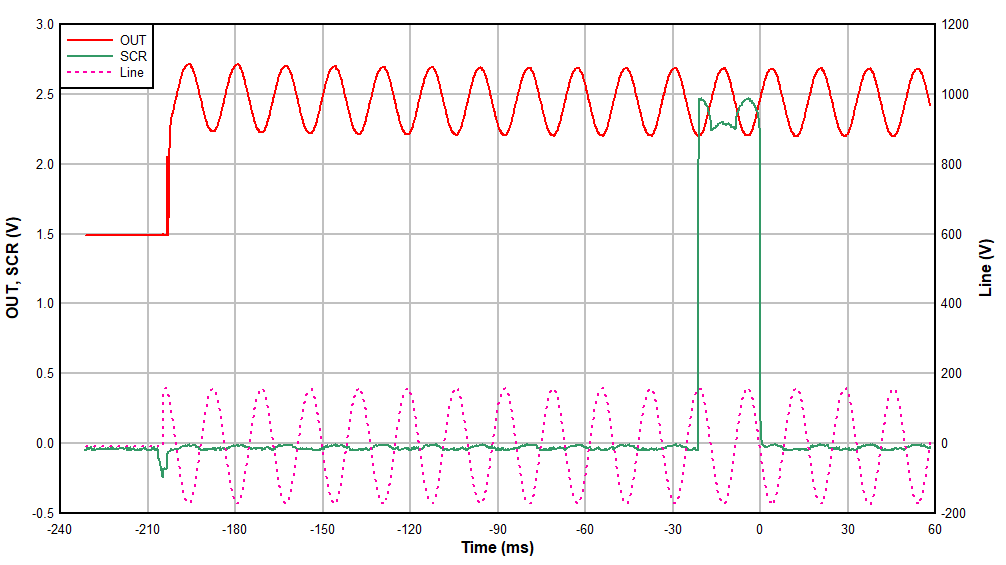

AFE3010 D201_SBFS042.gifFigure 19. Device Trip to 5-mA RMS Ground Fault on Device Power Up

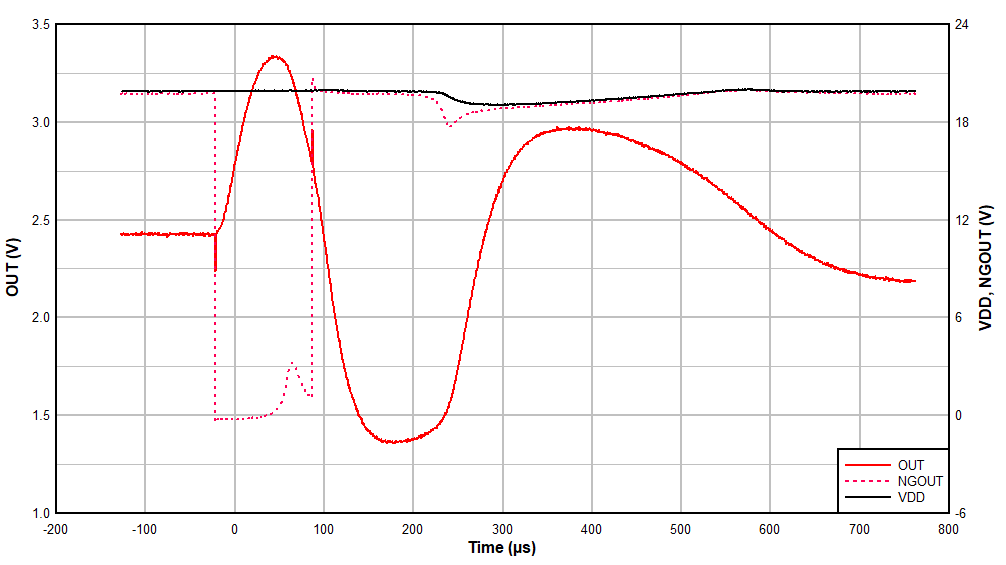

AFE3010 D200_SBFS042.gifFigure 18. Neutral-Ground Pulse on VOUT With 2-Ω N-G Fault. No Load or Fault Currents.

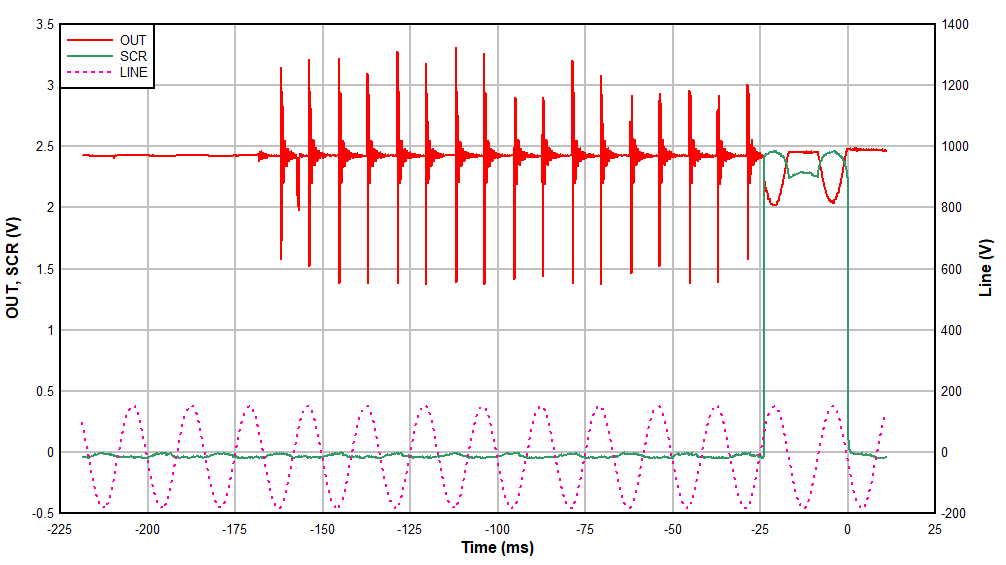

AFE3010 D202_SBFS042.gifFigure 20. Device Trip to 2-Ω N-G Fault. No Load Or Fault Currents.
