7.8 Timing Requirements: Daisy-Chain

all specifications are at AVDD = 3 V, DVDD = 3 V, and over the operating free-air temperature range (unless otherwise noted)
MIN TYP MAX UNIT
tACQ Acquisition time 1200 ns
tconv Conversion time 500 8800 ns
1/fsample Time between conversions 10000 ns
tsu-CK-CNV Setup time: SCLK valid to CONVST rising edge 5 ns
th-CK-CNV Hold time: SCLK valid from CONVST rising edge 5 ns
tsu-DI-CNV Setup time: DIN low to CONVST rising edge (see Figure 2) 7.5 ns
th-DI-CNV Hold time: DIN low from CONVST rising edge 0 ns
tsu-DI-CK Setup time: DIN valid to SCLK falling edge 1.5 ns

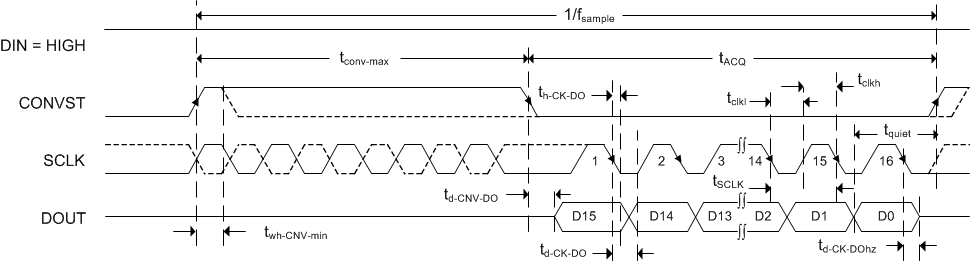

ADS8866 tim_3wire_op_bas557.gifFigure 1. 3-Wire Operation: CONVST Functions as Chip Select

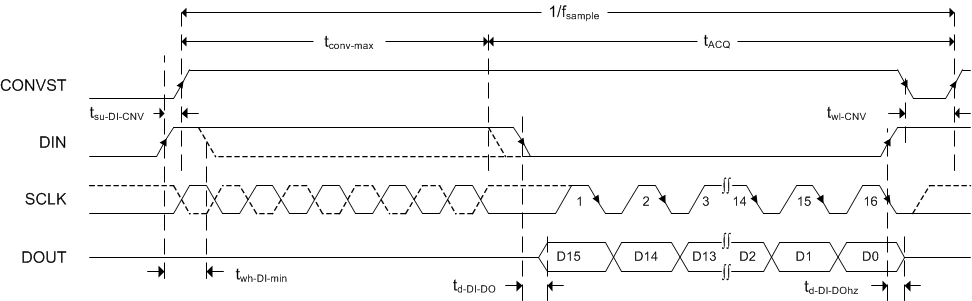

ADS8866 tim_4wire_op_bas557.gifFigure 2. 4-Wire Operation: DIN Functions as Chip Select

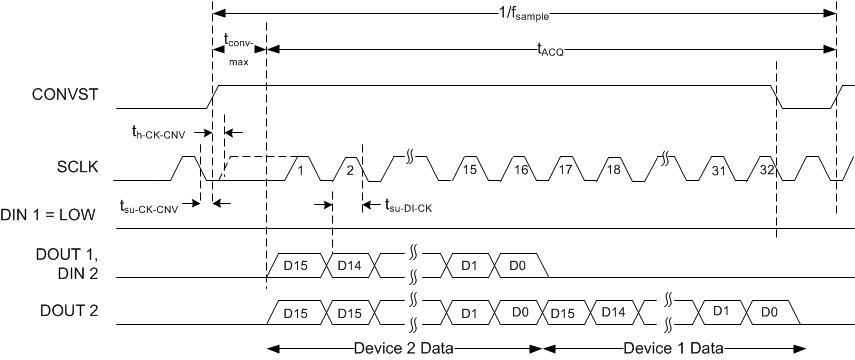

ADS8866 tim_daisy_op_bas557.gifFigure 3. Daisy-Chain Operation: Two Devices
