6.9 Typical Characteristics
Typical plots at TA = 25°C, sampling rate = 1 GSPS, 50% clock duty cycle, AVDD5 = 5 V, AVDD3 = 3.3 V, DVDD3 = 3.3 V, and 1.5-VPP differential clock, (unless otherwise noted)

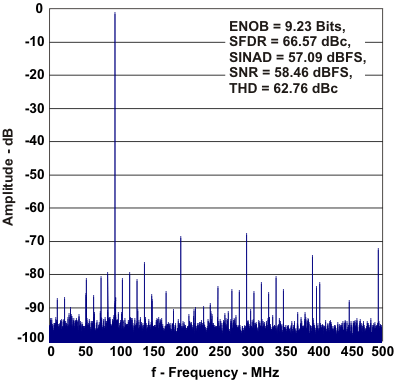

Figure 6. Spectral Performance v FFT for 250-MHz Input Signal
Figure 8. Spectral Performance v FFT for 1.3-GHz Input signal
Figure 10. Differential Nonlinearity
Figure 12. AC Performance vs Input Amplitude (801.13-MHz Input signal)
Figure 14. AC Performance vs Input Amplitude (747.5-MHz and 752.5-MHz Two-tone Input Signal)
Figure 16. SFDR vs AVDD5 Across Temperature
Figure 18. SFDR vs AVDD3 Across Temperature
Figure 20. SFDR vs DVDD3 Across Temperature

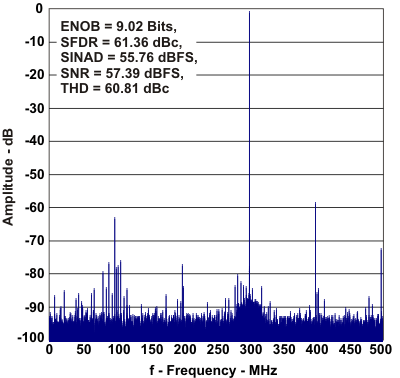

Figure 7. Spectral Performance v FFT for 0.9-GHz Input Signal
Figure 9. Spectral Performance v FFT for 1.7-GHz Input Signal
Figure 11. Integral Nonlinearity
Figure 13. AC Performance vs Input Amplitude (247.5-MHz and 252.5-MHz Two-tone Input Signal)
Figure 15. AC Performance vs Input Amplitude (1197.5-MHz and 1202.5-MHz Two-tone Input Signal)
Figure 17. SNR vs AVDD5 Across Temperature
Figure 19. SNR vs AVDD3 Across Temperature
Figure 21. SNR vs DVDD3 Across Temperature
Figure 22. SNR vs Input Frequency and Sampling Frequency
Figure 23. SFDR vs Input Frequency and Sampling Frequency
Figure 24. Normalized Gain Response vs Input Frequency
