Application Curve

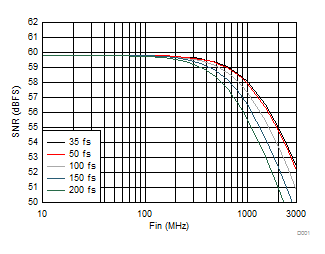

Figure 40 shows the SNR of the ADC as a function of clock jitter and input frequency for the device. This plot of curves take into account the aperture jitter of the ADC, the number of bits of resolution, and the thermal noise estimation so that Figure 40 may be used to predict SNR for a given input frequency and external clock jitter. Figure 40 then may be used to set the jitter requirement for the clocking solution for a given input bandwidth and given design goal for SNR.

ADS5400-SP D001_SLAS611.gifFigure 40. SNR vs Input Frequency and External Clock Jitter
