7.8 Typical Characteristics

At TA = 25°C, VDD = 3.3 V, FSR = ±2.048 V (unless otherwise noted).
ADS1118 tc_terr-sig_bas457.gif
DR = 860 SPS, diff inputs, includes noise, offset and gain error
Figure 2. Total Error vs Input Signal
ADS1118 tc_inl-vs_bas457.gif
Figure 4. INL vs Supply Voltage
ADS1118 tc_inl-in_sig_fs512_3V_bas457.gif
FSR = ±0.512 V, DR = 8 SPS, VDD = 3.3 V, best fit
Figure 6. INL vs Input Signal
ADS1118 tc_inl-in_sig_fs512_5V_bas457.gif
FSR = ±0.512 V, DR = 8 SPS, VDD = 5 V, best fit
Figure 8. INL vs Input Signal
ADS1118 tc_inl-dr_bas457.gif
FSR = ±2.048 V, best fit
Figure 10. INL vs Data Rate
ADS1118 tc_oerr_1end-vs_bas457.gif
Figure 12. Single-Ended Offset Voltage vs Supply

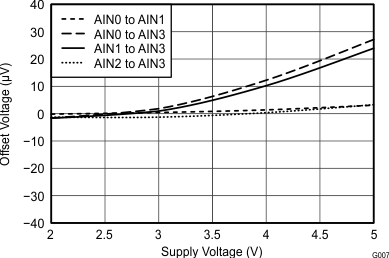

ADS1118 tc_diff_oset-vs_bas457.gif
Figure 14. Differential Offset Voltage vs Supply
ADS1118 tc_offset_histo_bas457.gif
FSR = ±2.048 V,
540 units from 3 production lots
Figure 16. Offset Histogram
ADS1118 tc_gerr-vs_bas457.gif
Figure 18. Gain Error vs Supply

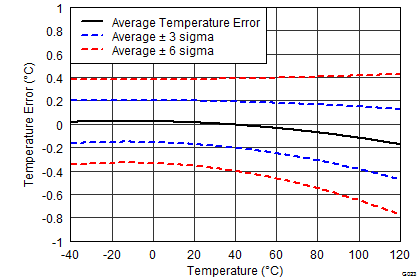

ADS1118 tc_ts_error-tmp_bas457.png
Figure 20. Temperature Sensor Error vs Temp (VSSOP)
ADS1118 D006_SBAS740.gif
TA = 0°C, 48 units from 3 production lots
Figure 22. Temperature Sensor Error Histogram (VSSOP)
ADS1118 D008_SBAS740.gif
TA = 70°C, 48 units from 3 production lots
Figure 24. Temperature Sensor Error Histogram (VSSOP)

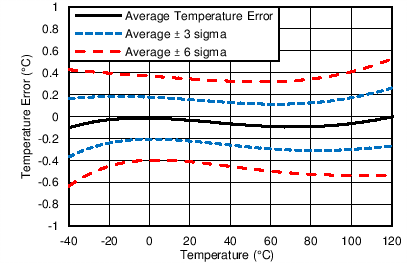

ADS1118 C007_sbas457.png
Figure 26. Temperature Sensor Error vs Temp (X2QFN)

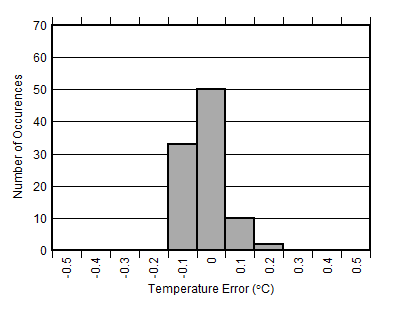

ADS1118 D011_SBAS740.gif
TA = 0°C, 94 units from production
Figure 28. Temperature Sensor Error Histogram (X2QFN)
ADS1118 D013_SBAS740.gif
TA = 70°C, 94 units from production
Figure 30. Temperature Sensor Error Histogram (X2QFN)

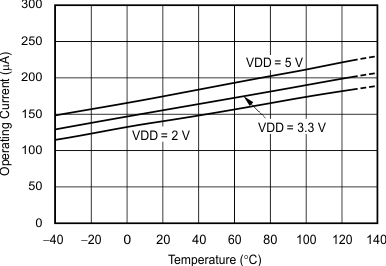

ADS1118 tc_ivdd-tmp_bas457.gif
Figure 32. Operating Current vs Temperature
ADS1118 tc_fresp_bas457.gif
DR = 8 SPS
Figure 34. Digital Filter Frequency Response

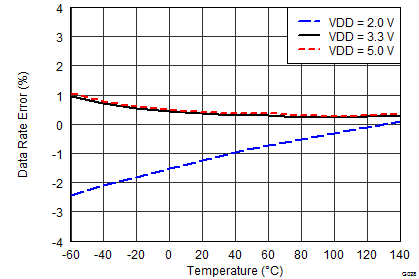

ADS1118 tc_drate-tmp_bas457.png
Figure 3. Data Rate vs Temperature
ADS1118 tc_inl-in_sig_fs2048_3V_bas457.gif
FSR = ±2.048 V, DR = 8 SPS, VDD = 3.3 V, best fit
Figure 5. INL vs Input Signal
ADS1118 tc_inl-in_sig_fs2048_5V_bas457.gif
FSR = ±2.048 V, DR = 8 SPS, VDD = 5 V, best fit
Figure 7. INL vs Input Signal
ADS1118 tc_inl_vs_temp_bas457.gif
FSR = ±2.048 V, DR = 8 SPS, best fit
Figure 9. INL vs Temperature

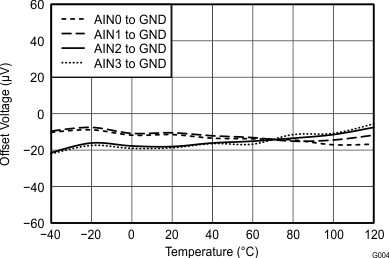

ADS1118 tc_oerr_1end-tmp_bas457.gif
Figure 11. Single-Ended Offset Voltage vs Temperature

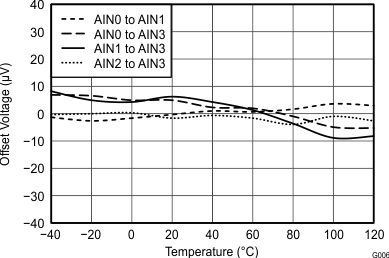

ADS1118 tc_diff_oset-tmp_bas457.gif
Figure 13. Differential Offset Voltage vs Temperature

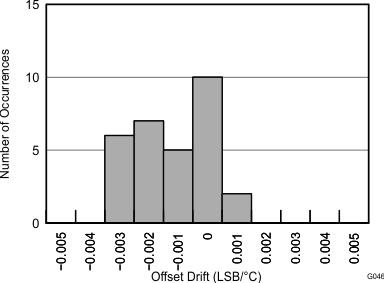

ADS1118 tc_offset_drift_histogram_bas457.gif
FSR = ±2.048 V, TA = –40°C to +125°C, MUX = AIN0 to AIN3,
540 units from 3 production lots
Figure 15. Offset Drift Histogram

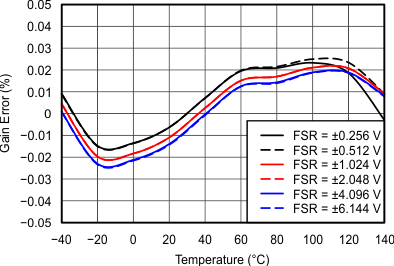

ADS1118 tc_gerr-tmp_bas457.gif
Figure 17. Gain Error vs Temperature
ADS1118 tc_gerr_histo_bas457.gif
FSR = ±2.048 V,
540 units from 3 production lots
Figure 19. Gain Error Histogram

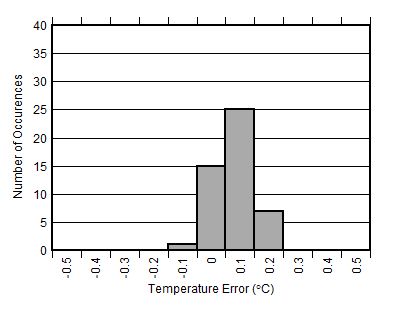

ADS1118 D005_SBAS740.gif
TA = –40°C, 48 units from 3 production lots
Figure 21. Temperature Sensor Error Histogram (VSSOP)

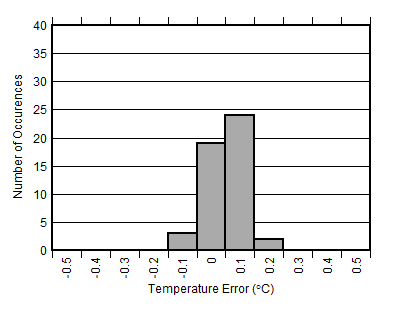

ADS1118 D007_SBAS740.gif
TA = 25°C, 48 units from 3 production lots
Figure 23. Temperature Sensor Error Histogram (VSSOP)

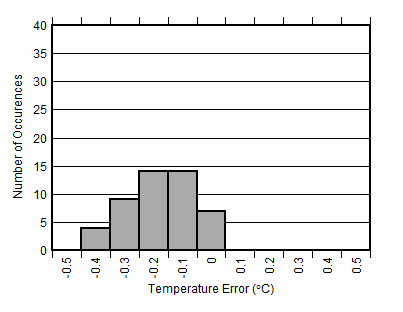

ADS1118 D009_SBAS740.gif
TA = 125°C, 48 units from 3 production lots
Figure 25. Temperature Sensor Error Histogram (VSSOP)
ADS1118 D010_SBAS740.gif
TA = –40°C, 94 units from production
Figure 27. Temperature Sensor Error Histogram (X2QFN)
ADS1118 D012_SBAS740.gif
TA = 25°C, 94 units from production
Figure 29. Temperature Sensor Error Histogram (X2QFN)

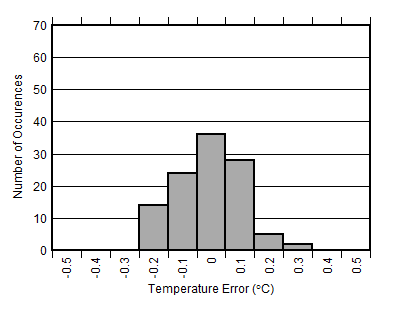

ADS1118 D014_SBAS740.gif
TA = 125°C, 94 units from production
Figure 31. Temperature Sensor Error Histogram (X2QFN)
ADS1118 tc_iq-tmp_bas457.png
Figure 33. Power-Down Current vs Temperature
