Typical Characteristics

at TA = 25°C, VDD = 3.3 V, FSR = ±2.048 V, DR = 8 SPS (unless otherwise noted)


Figure 6-2 Operating Current vs Temperature

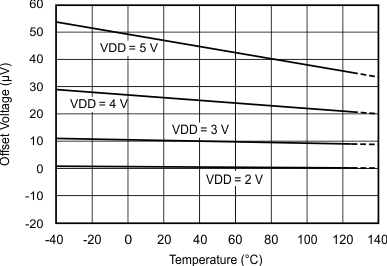

Figure 6-4 Single-Ended Offset Error vs Temperature

Figure 6-6 Gain Error vs Temperature

Figure 6-8 INL vs Supply Voltage
VDD = 3.3 V, FSR = ±0.512 V, DR = 8 SPS, best fit

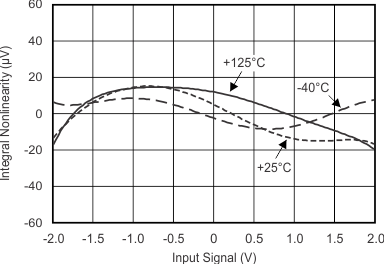

Figure 6-10 INL vs Input Signal
VDD = 5 V, FSR = ±0.512 V, DR = 8 SPS, best fit

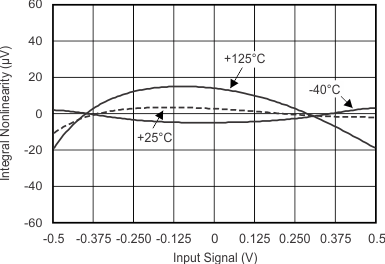

Figure 6-12 INL vs Input Signal
FSR = ±0.512 V

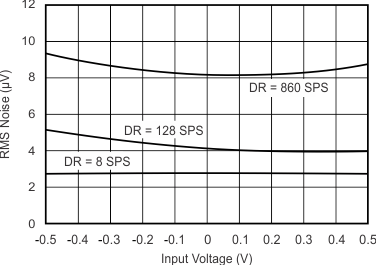

Figure 6-14 Noise vs Input Signal
FSR = ±2.048 V, DR = 8 SPS

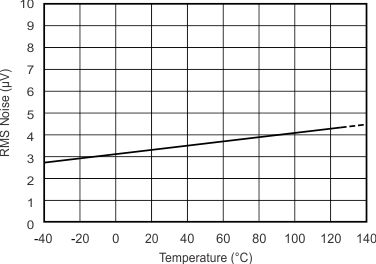

Figure 6-16 Noise vs Temperature
FSR = ±2.048 V, 185 units

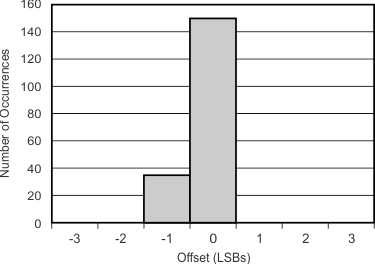

Figure 6-18 Offset Histogram

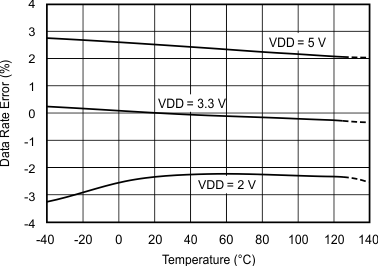

Figure 6-20 Data Rate vs Temperature

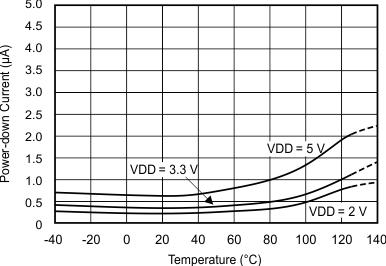

Figure 6-3 Power-Down Current vs Temperature

Figure 6-5 Differential Offset vs Temperature

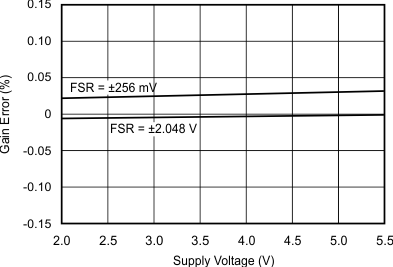

Figure 6-7 Gain Error vs Supply Voltage
VDD = 3.3 V, FSR = ±2.048 V, DR = 8 SPS, best fit
Figure 6-9 INL vs Input Signal
VDD = 5 V, FSR = ±2.048 V, DR = 8 SPS, best fit
Figure 6-11 INL vs Input Signal

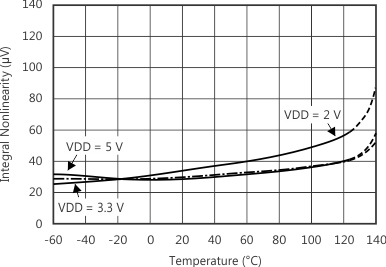

Figure 6-13 INL vs Temperature
FSR = ±2.048 V
Figure 6-15 Noise vs Supply Voltage
FSR = ±2.048 V, 185 units
Figure 6-17 Gain Error Histogram
Differential inputs; includes noise, offset and gain error
Figure 6-19 Total Error vs Input Signal
DR = 8 SPS
Figure 6-21 Digital Filter Frequency Response
